Draco 19/35 Series Instructions

Instructions
The pos. number used are in connection with the opposite Service-tips
1. Before using the metalshears please check cutting capacity see
technical data.
2. Always place the machine straight on the work piece. The jaws
(pos. 10) must lay flat on the material. When cutting sheet metal
etc. do not oil cutting surface.
3. When cutting a slot without drilling an end hole, pull shear
backwards with motor running.
4. Circular cuts: Always cut counter clockwise from right to left,
this enables a shorter inside curve.
Equipment protection
The maximum allowable operating pressure of 6.6 bar must not be
exceeded; use a pressure reducer if necessary.
To avoid damage by contaminated pressurised air, a maintenance
unit must be used in the air supply system.
The maintenance unit consists of three main components:

Filter with water separator

Pressure reducer with manometer
Mist oilier for lubricating the machine with SAE 20 or SAE 10 motor
oil.
Do not use petroleum or diesel oil.
Care and Maintenance
Before carrying out any work on the tool itself, disconnect the
air supply.
Oil the knife pin 18 and knife 11 at regular intervals.
Should the tool fail in spite of careful manufacturing and testing
procedures, the repair is to be performed by an authorised customer
service location for pneumatic or electric tools.
Declaration of conformity
We declare under our sole responsibility that this product is in
conformity with the following standards or standardisation
documents:
EN 792-13, ISO 8662-1, EN50144, according to the provisions of
the regulations 89/37
09 Max Draenert
5. For cutting out curved or square inside patterns a hole
between 10 - 14 mm should be drilled to insert the cutting
knife. For square cut outs drill a hole in each corner.
6. If after cutting, a small strip remains, this can be trimmed
off to the exact marked line, without leaving a burr or any
distortion of the material.
7. When producing the same parts several times a template
can be used. The knife will follow the template on the side.
A marked line can be easily followed due to the points on
the jaws.
8. Both knife and jaws can be resharpened. After being re-
sharpened or replaced, the knife should be adjusted at it's
lowest point and should protrude the jaws by
approximately 2.5 mm.
9. If following these instructions, you are able to work with the
knife and jaws about 200 working hours depending on the
hardness of the materials.
ATTENTION: THE MATERIAL MUST ALWAYS BE
FREE OF GREASE OR OIL.
Noise/vibration information
Measured values determined according to EN 792, PNEUROP
PN8NTC1, ISO 3744 and ISO 8662/1.
Typically the A-weighted noise levels of the tool are: Sound
pressure level: 78,2 dB (A); Sound power level: 78,9 dB (A)
Wear ear protection!
The typical hand-arm vibration is below 2,5 m/s².
Guarantee
Dräco tools carry a guarantee of 12 months from date of
delivery.
Damage attributable to normal wear and tear, overload or
improper handling will be excluded from the guarantee.
In case of complaint please send the machine, to your dealer
or the Dräco Service Centre for electric power tools.
Environmental protection
Recycling raw materials instead of waste disposal
Machine, accessories and packaging should be sorted for
environment-friendly recycling.
These instructions are printed on recycled paper
manufactured with chlorine.

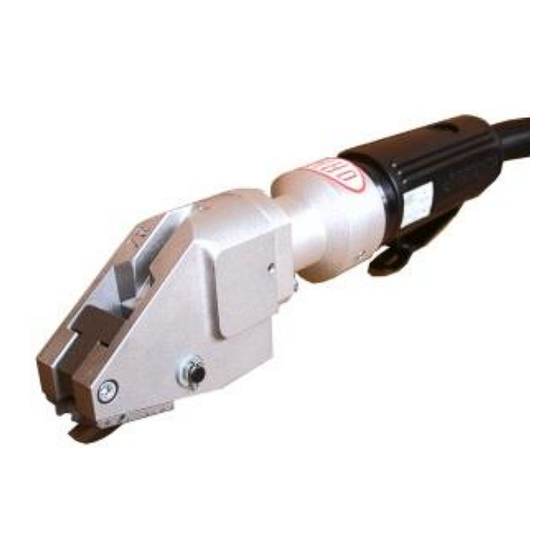

Instructions Pneumatic Sheet Metal Shears 19/35xx series
To avoid failure, when using DRÄCO-Metal Shears, please read these instructions
For your safety:
1
1
Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and
instructions contained therein are
observed.
2
Use ear protectors and protective goggles.
3
Wear protective gloves and sturdy footwear.
 Before carrying out any work on the tool itself, during
pauses in the work and when not in use, disconnect
the air supply.

For further notes on safety refer to enclosed sheet
Technical Data:
19/ 3514-2
DRÄCO Metal Shears
max. cutting capacity Art.no.: 62060-1 62070-1
steel 400 N/mm² mm/ga. 2,0/14
stainl. steel 600 N/mm² mm/ga. 1,5/17
stainl. steel 800 N/mm² mm/ga. 1,3/18
aluminium 250 N/mm² mm/ga. 3,0/10
mm/ "
tightest radius 200/8
duct & Pittsburg Seam mm 4x0,9
working speed m/min 9
strokes -1 3000
min

3
air-consumption 0,18
at 6 bar/min. m
motor capacity Watts 200
weight kg 1,3
noise db(A) 78,2
2 3
 Apply the machine to the sheet metal only when
switched on.
the
strictly
 Always provide for secure footing when working.
 Firmly clap the workpiece if it does not remain
stationary from its own weight.
 The knife should not rub on the jaws: Possible danger
of cutting tool breakage.
 Do not exceed the maximum allowable material
thickness especially when cutting over doubles, folded
joints or welded seams.
3514-7R 3515 3520
62063-1 62080-1
2,0/14 2,0/14 2,0/14
1,5/17 1,5/17 1,5/17
1,3/18 1,3/18 1,3/18
3,0/10 3,0/10 3,0/10
45/1¾ 200/8 200/8
4x0,7 4x0,7
9 9 9
3000 3000 3000
0,18 0,18 0,18
200 200 200
1,3 1,3 1,3
78,2 78,2 78,2
