Draco SD5-1 Operating Instructions

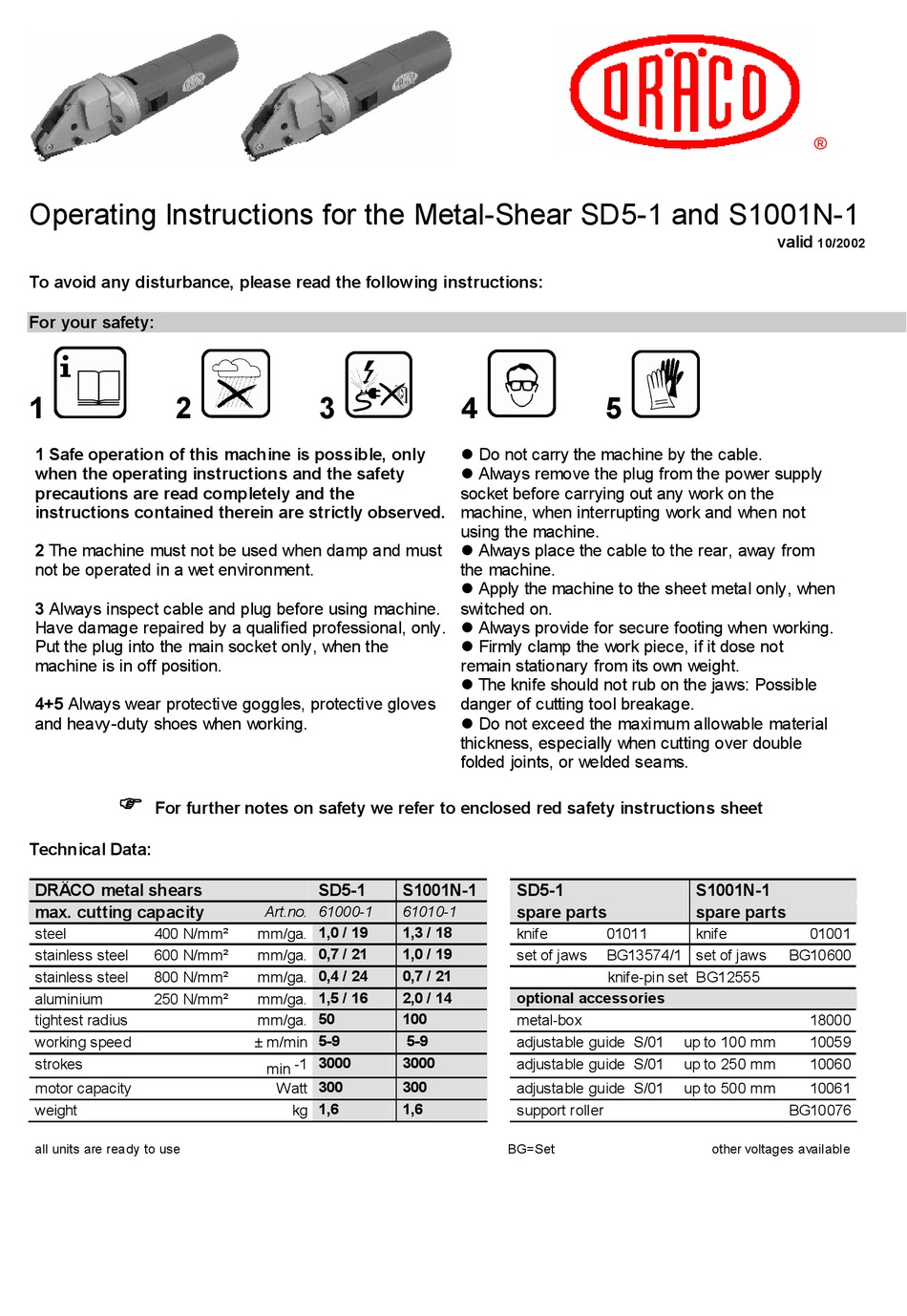

Operating Instructions for the Metal-Shear SD5-1 and S1001N-1
To avoid any disturbance, please read the following instructions:

For your safety:

1 2
1 Safe operation of this machine is possible, only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly observed.
2 The machine must not be used when damp and must
not be operated in a wet environment.
3 Always inspect cable and plug before using machine.
Have damage repaired by a qualified professional, only.
Put the plug into the main socket only, when the
machine is in off position.
4+5 Always wear protective goggles, protective gloves
and heavy-duty shoes when working.
F
For further notes on safety we refer to enclosed red safety instructions sheet

Technical Data:

DRÄCO metal shears
max. cutting capacity
steel 400 N/mm²
stainless steel 600 N/mm²
stainless steel 800 N/mm²
aluminium 250 N/mm²
tightest radius
working speed
strokes
motor capacity
weight
all units are ready to use
3
SD5-1 S1001N-1
Art.no. 61000-1 61010-1
mm/ga. 1,0 / 19 1,3 / 18
mm/ga. 0,7 / 21 1,0 / 19
mm/ga. 0,4 / 24 0,7 / 21
mm/ga. 1,5 / 16 2,0 / 14
mm/ga. 50 100
± m/min 5-9 5-9
min -1 3000 3000
Watt 300 300
kg 1,6 1,6
4 5
l Do not carry the machine by the cable.
l Always remove the plug from the power supply
socket before carrying out any work on the
machine, when interrupting work and when not
using the machine.
l Always place the cable to the rear, away from
the machine.
l Apply the machine to the sheet metal only, when
switched on.
l Always provide for secure footing when working.
l Firmly clamp the work piece, if it dose not
remain stationary from its own weight.
l The knife should not rub on the jaws: Possible
danger of cutting tool breakage.
l Do not exceed the maximum allowable material
thickness, especially when cutting over double
folded joints, or welded seams.
SD5-1
spare parts
knife 01011
set of jaws BG13574/1 set of jaws
knife-pin set BG12555
optional accessories
metal-box
adjustable guide S/01
adjustable guide S/01
adjustable guide S/01
support roller
BG=Set
®
valid
10/2002
S1001N-1
spare parts
knife 01001
BG10600
18000
up to 100 mm 10059
up to 250 mm 10060
up to 500 mm 10061
BG10076
other voltages available
