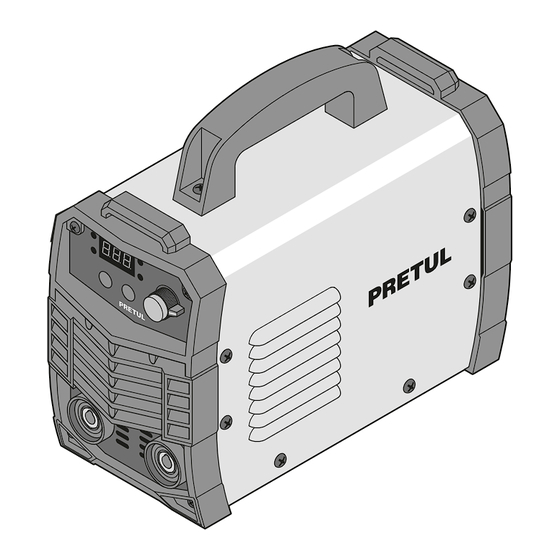

- Page 1 Manual Inverter Welder Work Cycle Applies for: Codes Models 29958 SOIN-101P 29959 SOIN-110/130P 29960 SOIN-120/160P Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical specifications Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tools Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Inverter Welders of fatal injuries please read and understand this Manual before Parts using the tool. -
Page 3: Technical Specifications
Technical specifications SOIN-101P SOIN-110/130P SOIN-120/160P Codes 29958 29959 29960 Description Inverter Welder Input Voltage 127 V~ / 50 Hz - 60 Hz 127 V~ / 220 V~ / 50 Hz - 60 Hz Rated Input Capacity 3.5 kVA 3.9 kVA / 5.2 kVA 4.8 kVA / 6.8 kVA... -
Page 4: General Power Tools Safety Warnings
General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Inverter Welders
Safety Warnings for Inverter Welders An electric shock coming from the soldering electrode may Protection Equipment for Welding cause death. Do not weld under rain or snow. Do not touch the electrode with your bare hands. Do not wear damp or damaged WARNING •... -
Page 6: Parts
Parts Carrying Handle Hammer-Brush for Slag Removal Welding Process Indicator Lights Carrying Thermal Protection Strap Lights and VRD VRD Security System Current Control Welding Process Selector (SMAW or TIG) Positive Connection ( + ) Carrying strap holder Negative Connection ( - ) Grounding Clamp to the Work Piece... -
Page 7: Installation (Smaw)
Installation (SMAW) Connections To prevent an electric shock, the user must CAUTION Reverse Polarity see the information in “Power Requirements” in page 3 and 5. • The fast connections of the electrode holder and the ground clamp are inserted and turned one quarter of a turn in a clockwise direction in the outlets set in the front panel to secure perfectly. -
Page 8: Installation (Tig)
Installation (TIG) TIG Connection • This inverter welder can also be used for TIG welding, a high-quality welding process with non-consumable tungsten electrodes and arch protected with inert gas like argon gas o helium. • TIG welding is ideal to weld stainless steel, iron and copper. •... -
Page 9: Start Up
Start Up Preparation VRD security system • Only through experience, practice and care a good welding • Activate the VRD (Voltage Reduction Device) system by process can be guaranteed. pressing the button ( ) to reduce voltage during the bait •... - Page 10 Start Up Examples of welding Correctly Applied Welding Electrode movement too fast and / or very low current. Electrode movement too slow and / or very high current. Electrode too separated from the work piece. Spiral movement. Half-Moon movement. Bevel Zigzag Movement.
-
Page 11: Maintenance
Maintenance • The correct use and regular cleaning extend the useful life of the welder. CAUTION • Only qualified personnel shall carry out repairs. We recommend visiting a Authorized Service Center to repair your welder, get supplies or accessories. Regular Maintenance Storage •... -
Page 12: Notes
Notes ENGLISH... -
Page 13: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 14: Warranty Policy
Warranty policy Codes Models Brand 29958 SOIN-101P 29959 SOIN-110/130P 29960 SOIN-120/160P Warranty. Duration: 1 year. Coverage: parts, components and workmanship against manufacturing or operating defects, except if used under conditions other than normal; when it was not operated in accordance with the instructive;...
