- Page 1 Manual Heavy Duty Cutting and Welding Equipment CORSOL-P Applies for: Model Code CORSOL-P 21576 Read the user’s manual CAUTION thoroughlybefore operating this tool.
-
Page 2: Table Of Contents
Manual before Start up using the tool. Troubleshooting Keep this manual for future references. Notes The illustrations in this manual are for reference only. They might be different from the real tool. CORSOL-P ENGLISH... -
Page 3: Safety Warnings
Safety Warnings CAUTION There are many risks associated with the use of oxyacetylene welding. Appropriate safety measures should be taken when working with this equipment. Work Area Connections WARNING • Before welding or cutting, make sure that the working • Do not smoke near the connections. area is in perfect conditions to avoid accidents. -
Page 4: Parts

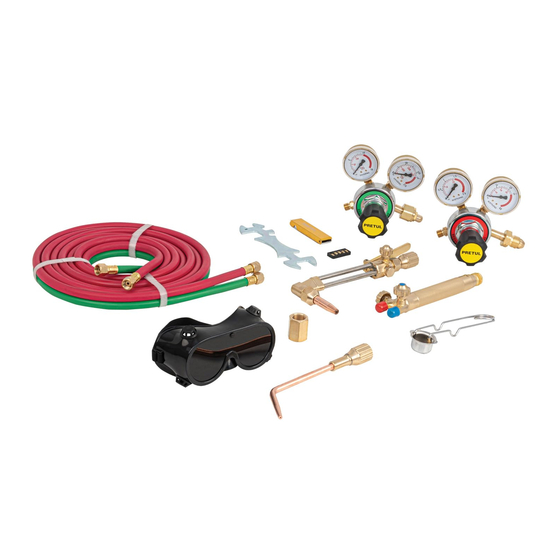

Parts Shade protection Oxygen gauge Acetylene gauge lenses #10 with with control valve control valve Check valve (not included) Regulating Regulating knob knob Check valve (not included) Multi-purpose Welding wrench Nozzle Cutting control Casserole lighter spare parts Nozzle Casserole opener lighter Brass torch... -
Page 5: Setting Up
Setting up CAUTION • Make sure you are in a place free of flames and sparks when preparing the equipment. CAUTION • Before making connections, be sure to remove any dust or dirt particles from the outlet valves of both cylinders. Stand to one side of the tank and open the valve (A) for two seconds to expel any particles that may enter the system causing damage or accidents. -
Page 6: Pressure Adjustments
Setting up 10. Set the appropriate oxygen pressure for the job to be performed according to the tables in the following section. 11. Open the oxygen valve on the torch for two seconds and close it. 12. Adjust the acetylene pressure suitable for the job to be performed according to the tables in the following section. - Page 7 Pressure Adjustments HEATING TIPS WITH MULTIPLE OXYACETYLENE FLAME ACETYLENE OXYGEN ACETYLENE OXYGEN Nozzle pressure pressure (l/h - ft (l/h - ft Minimum Maximum Minimum Maximum (kPa - PSI - bar) (kPa - PSI - bar) 27.5 kPa - 41.3 kPa 55.1 kPa - 75.8 kPa 396.4 l/h 1 132.6 l/h...
-
Page 8: Start Up
Start up CAUTION Never raise the pressure in the acetylene gauge above 103.4 kPa (15 PSI) (1.03) bar). To turn on 1. Open the ACETYLENE valve on the torch approximately 1/2 turn. 2. Use the casserole lighter to start the flame. 3. -
Page 9: Troubleshooting
Start up To cut To turn off • Bring the flame closer to the piece you're going to cut. • Close the oxygen valve on the torch. • Place the tip of the preheat dart on top of the material. •... -
Page 10: Notes
Notes... - Page 11 Notes...
- Page 12 For questions or comments, please call 800 0187873. Imported by: Truper, S.A. de C.V. Parque Industrial #1, Jilotepec, Edo. de Méx., Méx. ZIP 54240. Made in China. www.truper.com 06-2020 ENGLISH...
