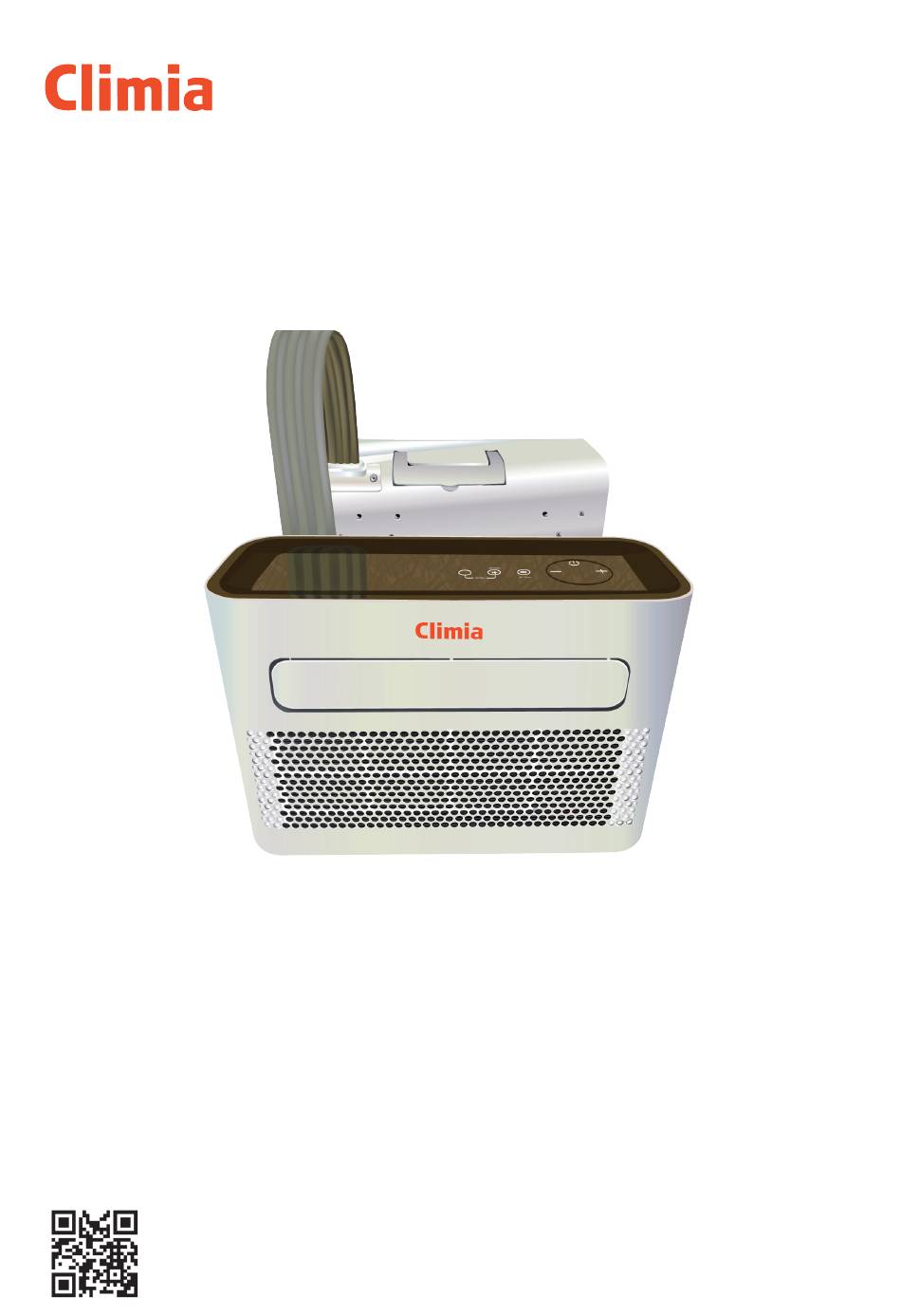

- Page 1 Mobile split air conditioner CMK 1500 Installation and operating instructions Version 1.0 english...
-
Page 2: Table Of Contents
Mobile split air conditioner CMK 1500 CONTENTS 01 SAFETY INSTRUCTIONS 02 STRUCTURE AND FUNCTIONS 03 TECHNICAL DATA 04 SCOPE OF DELIVERY 05 DESIGNATIONS OF THE COMPONENTS 06 DISPLAY AND FUNCTIONS 07 OPERATING TYPES 08 INSTALLATION 09 ERROR CODE LIST 10 TROUBLESHOOTING INSTRUCTIONS... - Page 3 01 SAFETY INSTRUCTIONS IMPORTANT! To avoid damage, place the appliance in an upright position for at least 24 hours before commissioning. Ensure that the air outlet and air inlet are never blocked. Only operate the appliance in a horizontal position to ensure that no water escapes. ATTENTION Any person involved in work or interventions in a refrigerant circuit must be in possession of a currently valid certificate authorizing their competence in handling refrigerants in accordance with the refrigerant safety regulations.
-
Page 4: Safety Instructions
Mobile split air conditioner CMK 1500 SAFETY INSTRUCTIONS Working on the system Secure environment Before starting work on systems containing flammable refrigerants, safety checks are required to ensure that the risk of ignition is minimized. When repairing the cooling system, the following precautions must be taken before any work is carried out on the system. - Page 5 Repairs During repair work, all electrical supplies must be disconnected from the system. For maintenance work that requires a power supply, a permanently functioning leak detection system must be used. The detection must be located at the most critical point to warn of a potentially dangerous situation.
- Page 6 Mobile split air conditioner CMK 1500 Filling process In addition to conventional filling methods, the following requirements must be met:-Ensure that there is no contamination of different refrigerants when using charging devices. Hoses or lines must be as short as possible to minimize the amount of refrigerant they contain.-Cylinders must be installed in an upright position in accordance with the instructions.
- Page 7 The recovered refrigerant must be returned to the refrigerant supplier in the correct recovery bottle and the corresponding waste transfer bill must be issued. Do not mix refrigerants in recovery units. If compressors or compressor oils need to be removed, ensure that they have been evacuated to an acceptable level to ensure that no flammable refrigerant remains in the lubricant.
-
Page 8: Structure And Functions

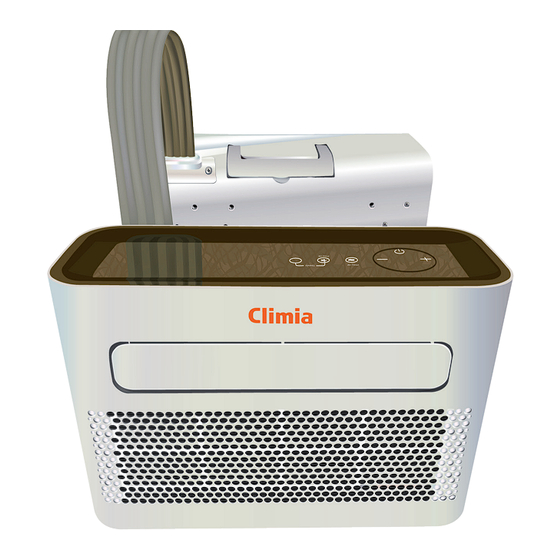

Mobile split air conditioner CMK 1500 02 STRUCTURE AND FUNCTIONS The mobile split air conditioner is designed exclusively for use in the caravanning sector (e.g. in motorhomes, caravans or similar mobile homes) and consists of an indoor unit for installation in the window area and a permanently connected outdoor unit. -
Page 9: Designations Of The Components
05 DESIGNATIONS OF THE COMPONENTS Outdoor unit Pipes Carrying handle Air outlet Indoor unit Air intake Air discharge Outdoor unit Air intake Bracket outside Bracket inside M6 screws Vibration damper Condensate hose (for emergency draining) Pipe protection... -
Page 10: Display And Functions
Mobile split air conditioner CMK 1500 06 DISPLAY AND FUNCTIONS 1 POWER Press this button to switch the appliance on and off. When the air conditioner is switched on, the temperature is set to 22°C by default. The temperature sensor measures the ambient temperature and if it exceeds 22°C, the outdoor unit starts to work to lower the temperature. -
Page 11: Operating Types
07 OPERATING TYPES The air conditioner has a total of 3 different operating modes (cooling mode, dehumidification mode and recirculation mode). This chapter describes how the different modes work: COOLING MODE In cooling mode, the air conditioner attempts to reach the set target temperature in the room. In this operating mode, the fan stages, the swing mode of the slats, the sleep mode and the timing functions can be activated. -
Page 12: Installation
Mobile split air conditioner CMK 1500 08 INSTALLATION 1. Carefully unpack all device components and check that they are complete. Also check that the connecting cable is undamaged and firmly connected. Ensure that the caps of the condensate drains on the indoor unit and outdoor unit are fitted. - Page 13 5. Attach the indoor unit to the mounting structure. The pipe protection is then wrapped around the connecting pipe and secured with Velcro tape. 6. Install the complete system in the caravan window and tighten the bracket properly.. Important note: The connecting tube prevents the caravan window from closing completely.
-
Page 14: Error Code List
Mobile split air conditioner CMK 1500 09 ERROR CODE LIST If the appliance does not work or does not work properly: Check whether an error code is visible in the display, look in the code table for a solution. If no error code is visible on the display, check the error table for a possible solution. -
Page 15: Maintenance And Care
11 MAINTENANCE AND CARE ATTENTION: 1) Ensure that the system is disconnected from the power supply before maintenance. 2) Do not use gasoline or other chemicals to clean the appliance. 3) Do not allow water to penetrate when cleaning the appliance. 4) If the air conditioning system is damaged, please contact the dealer or repair workshop. - Page 16 Mobile split air conditioner CMK 1500 STORAGE If you intend to store the air conditioner without using it for an extended period of time, please remove the drain cover from the drain hole on the bottom of both the indoor unit and the outdoor unit and drain all condensation water in a suitable place.
- Page 17 11. CONNECTION INSTRUCTIONS WIFI FUNCTION Install app 1. Download the „Smart Life“ app from the Play Store (Android) or the App Store (iOS) and install it on your smartphone. Alternative tip: Simply scan the QR code! Registration If you do not have a Smart Life account, register or log in with a confirmation code sent by SMS. How to register: 1.
- Page 18 Mobile split air conditioner CMK 1500 4. Select the network and enter the 5. Make sure that the device WLAN password. is still in Wi-Fi pairing mode (Wi-Fi symbol flashes quickly, Important: The device can only 2x per second). connect to 2.4 Ghz networks!
- Page 19 We hereby declare that the devices described below, in the version marketed by us, comply with the relevant essential requirements of the EU directives, EU safety standards and product-specific EU standards. Name of the manufacturer Intakt GmbH Climia - Klima- und Wärmetechnik Niemeierstraße 13 D - 32758 Detmold Name of the CE representative: Intakt GmbH Climia - Klima- und Wärmetechnik...
- Page 20 Intakt GmbH Climia - Klima- und Wärmetechnik Niemeierstraße 13 D - 32758 Detmold...
