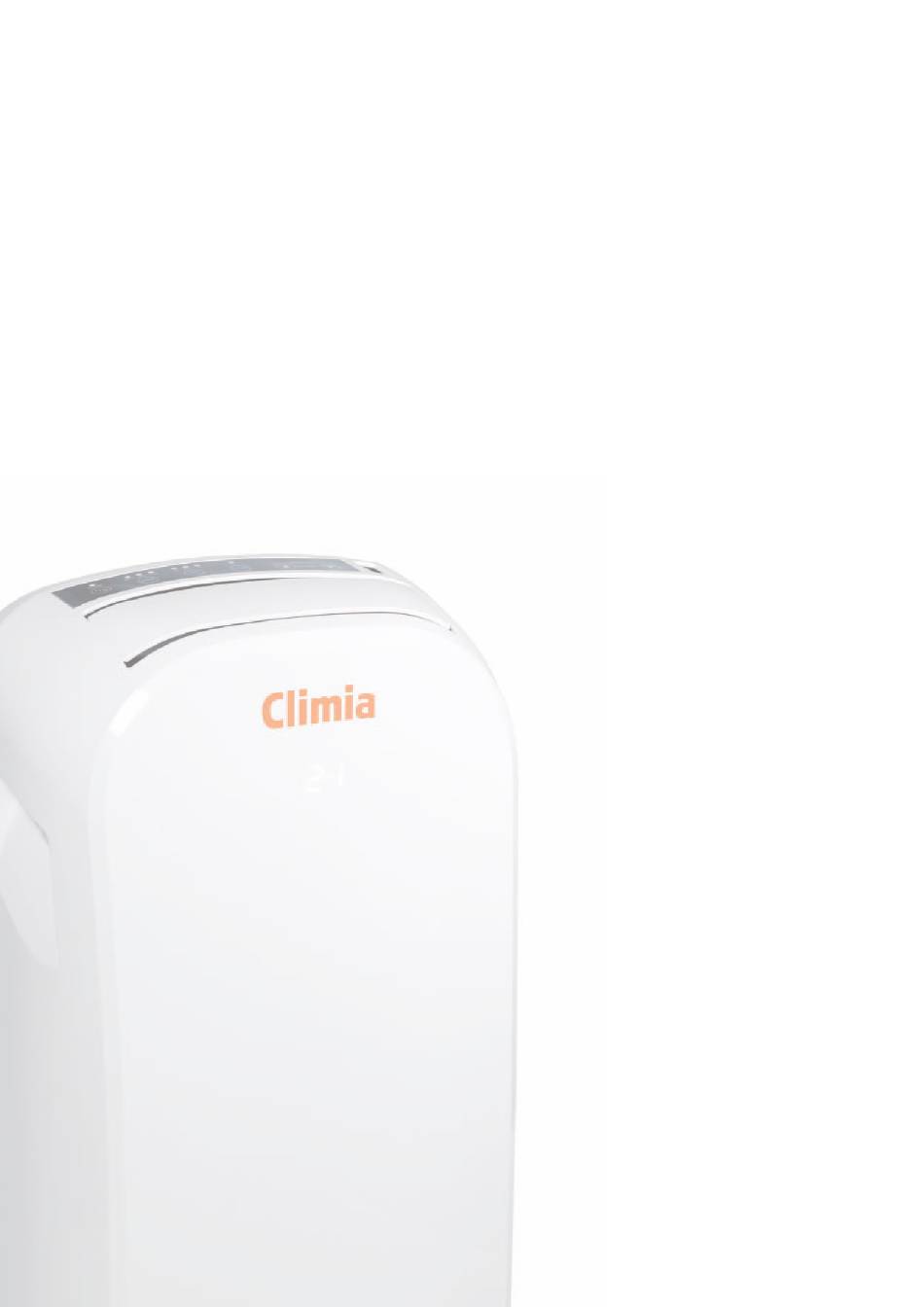

- Page 1 CLIMIA Local room air conditioner CMK 2950/CMK 2950 silver-grey Operating instructions Edition 1.0 English...
- Page 2 CLIMIA...
-
Page 3: Table Of Contents
Local room air conditioner CMK 2950 Table of Contents 1.0 Safety information 2.0 Guarantee 3.0 Intended use 4.0 Environmental protection and recycling 5.0 Transportation and packaging 6.0 Unit description 7.0 Operation 12-13 8.0 Before commissioning 14-15 9.0 Commissioning 10.0 Shutdown 15-16 11.0 Care and maintenance... -
Page 4: Safety Information
CLIMIA 1.0 Safety information General safety notes • The use of extension cables is not • The unit may only be operated in recommended. well ventilated areas. Carefully read the operating manual before placing the unit in service • The air filter must be cleaned •... - Page 5 Local room air conditioner CMK 2950 • Only use cleaning agents which • The unit may only be operated WARNING! have been approved by the via a power supply with earthing. Do not use anything other than manufacturer for cleaning.
- Page 6 CLIMIA • Never drill through the housing Do not allow children to play with Never cover the air inlets and cover or have the unit come into the unit outlets. contact with fire. • Rooms in which refrigerant may escape must be adequately aerated and ventilated.
- Page 7 Local room air conditioner CMK 2950 Safety instructions for certified • Provide fire extinguishers The following safety checks specialist personnel Provide appropriate fire must be carried out when using extinguishers before starting combustible refrigerants: • Check the work area work. For this purpose, dry...
- Page 8 CLIMIA • Repairs to closed components • Wiring • Leak detection methods Before repairing closed Lines must be checked for the The following leak detection components/housing parts, the following damage: methods are permitted for unit must be free from voltage.
- Page 9 Local room air conditioner CMK 2950 Stick to the following procedure: - Filling bottles and cylinders 1. Drain the refrigerant must be stood upright. 2. Flush the system with insert - Ensure that the system is earthed before filling. 3. Evacuate - Label the system with the 4.
-
Page 10: Guarantee
All products are packed for heating the air in an enclosed space. transport in environmentally "certificate of warranty" to Climia Any different or additional use is a friendly materials. Make a valuable Intakt GmbH non-intended use. -
Page 11: Transportation And Packaging
Local room air conditioner CMK 2950 5.0 Transportation and packaging Control panel The units are shipped in sturdy Ventilation louvres transport packaging. Check the unit Air outlet immediately after delivery and make Recirculation a note of any damage (please take photos of the damage) or missing parts on the delivery note. -
Page 12: Operation
CLIMIA 7.0 Operation The system can be operated by means of the control panel on the unit or via the standard infrared remote controller. The functional operation of the keys is identical, however, the designation may vary. The batteries must be correctly inserted before the infrared remote control is used. - Page 13 Local room air conditioner CMK 2950 “▲/▼” keys- THERMO/TIMER Infrared remote control - General Inserting the batteries into the CONTROL“ notes remote control By pressing the “▲/▼” keys Before initial commissioning, insert the target temperature can be • With the unit switched on any the supplied batteries (2 each, type set.
-
Page 14: Before Commissioning
CLIMIA 8.0 Before commissioning The unit is positioned at the desired • Check whether Conduct the warm exhaust air away Condensate drainage with location with the discharge side the stopper in stopper pointing into the room. When the condensate CAUTION! -
Page 15: Commissioning
Local room air conditioner CMK 2950 9.0 Commissioning 10.0 Shutdown Temporary shutdown Before every commissioning the air inlet and outlet openings should be checked for foreign bodies and the NOTE air inlet filter must be checked for Never switch off a running unit dirt. -
Page 16: Care And Maintenance
CLIMIA 11.0 Care and maintenance Filter cleaning 6. Store the unit in an upright Regular care and observation position in a cool, dry and dust- of some basic points will ensure free location protected from trouble-free operation and a long The unit is equipped with an air direct sunlight. -
Page 17: Troubleshooting And Customer Service
Local room air conditioner CMK 2950 12.0 Troubleshooting and customer service The unit and components are manufactured using state-of-the-art production methods and tested several times to verify that they function correctly. If malfunctions should occur, please check the unit as detailed in the list below. -
Page 18: Electrical Wiring Diagram
CLIMIA 13.0 Electrical wiring diagram Temperature probe Temperature probe Infrared receiver Liquid level switch Condensate CN 3 CN 4 CN 6 pump CN 2 Power supply CN 1 CN 5 Compressor overheating protection Compressor Fan motor Condenser Fan motor Evaporator Fig. -
Page 19: Unit Illustration
Local room air conditioner CMK 2950 14.0 Unit illustration Fig. 10 Unit illustration... - Page 20 CLIMIA 15.0 Spare parts list Designation Base plate Conveyor rollers Rubber stopper Sealing cap Condensate pump Protective cap Condensate tray cover Protection grid hose connection Exhaust air hose connection nozzle Liquid level switch Compressor Vibration dampers Hot gas line Suction pipe...
-
Page 21: Spare Parts List
Local room air conditioner CMK 2950 Designation Operating panel Display circuit board Display board cover Housing front Board housing cover Board housing Control board Compressor capacitor Capacitor compressor fastening clip Housing part air outlet, recirculation Air deflection blade, horizontal Air deflection blade, vertical... -
Page 22: Technical Data
CLIMIA 19.0 Technical data CMK 2950 Series CMK 2950 silver-grey Operating mode Local compact air conditioning unit for cooling Nominal cooling output Energy efficiency ratio - cooling Energy efficiency rating EER Energy consumption, hourly kWh/60 min Application area (room volume), approx. -
Page 23: Ec Declaration Of Conformity
Local room air conditioner CMK 2950 EU – Declaration of Conformity Original Declaration of Conformity We hereby declare that the units named below, as produced and sold by us, satisfy the relevant basic requirements of the EU directives, EU safety standards and product-specific EU standards. - Page 24 Intakt GmbH Climia - Klima- und Wärmetechnik Niemeierstraße 13 D - 32758 Detmold...
