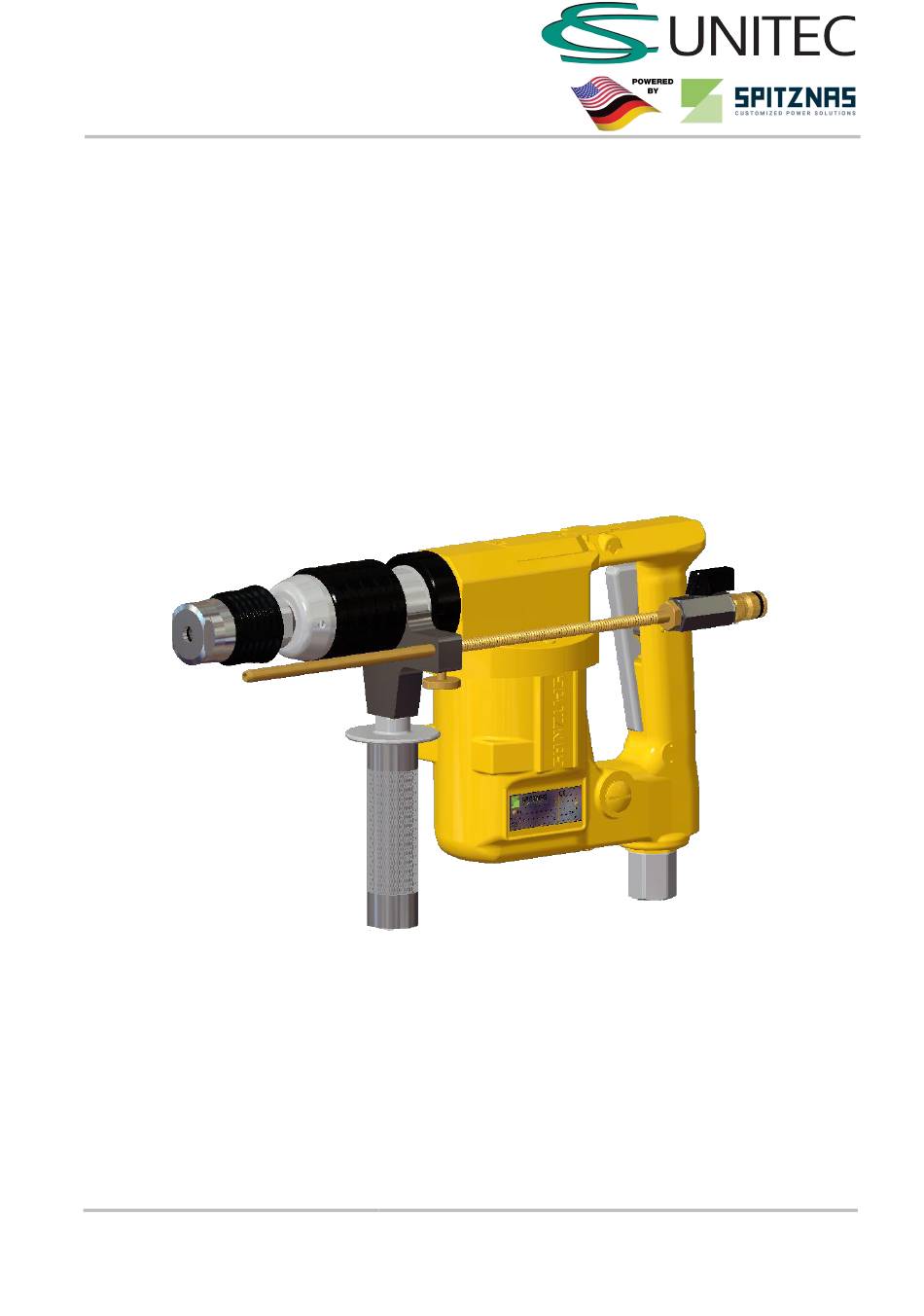

- Page 1 Pneumatic Rotary Hammer Drill Type 2 2404 0030 Techn. Doc. No. 252 Illustration can differ from the original Operation and Maintenance Manual 1-800-700-5919 (US/CA) +1-203-853-9522 (Intl.) www.csunitec.com info@csunitec.com...
-
Page 2: Table Of Contents
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Directory Page Signal Word and Symbol Definition Technical Specification Product Description Identification... -
Page 3: Signal Word And Symbol Definition
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Signal Word and Symbol Definition The signal words and symbols used in the technical documentation (safety instructions, operating booklet, etc.) have the following meaning: WARNING... -
Page 4: Technical Specification
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Technical Specification Operating pressure 6 bar 90 psi Power 0.5 kW... -
Page 5: Product Description
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Product Description Fig. 1 5 Gear housing 9 Second Handle 1 Valve trigger 10 Flush connection Gardena R ¼”... -
Page 6: Identification
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Identification Type sign Explanation of ATEX Identification Specification acc. -
Page 7: Installation
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Installation Requirements to the air supply The pneumatic rotary hammer drill works optimally at an operating pressure of 6 bar, measured at the air inlet. -
Page 8: Startup
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Startup Consider the following bevor using the machine: Open oil plug 4 and fill up with pneumatic oil (9 9902 0220) (see fig. -
Page 9: Underwater Use
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Drilling only Fig. 4.4: Unlock the adjusting sleeve. It is possible to use a quick-release chuck at this setting. Quick-release chuck: Spitznas order no.: 9 2902 0200 Adapter SDS-plus for quick-release chuck: Spitznas order no.: 9 2902 0210 (9 2902 0200 and 9 2902 0210 not contained in the scope of delivery.) -
Page 10: Basic Safety Instructions
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Basic Safety Instructions Read operation instructions/safety instructions! Before working on or with the tool, read the safety instructions and follow the instructions during operation. -
Page 11: Explanation Of Symbols For Protective Equipment And For Accident Prevention
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Explanation of Symbols for Protective Equipment and for Accident Prevention Use protective clothes –... -
Page 12: Safety Instructions For Avoiding Safety Hazards
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Safety Instructions for Prevention of Workplace Hazards WARNING –... - Page 13 R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Safety Instructions for Prevention of Hazards caused by Compressed Air WARNING –...
- Page 14 R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Safety Instructions for Prevention of Entanglement Hazards CAUTION –...
- Page 15 R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Remark: Some types of metal may have toxic coatings. Please pay particular attention to avoid skin contact and breathing in, when working with those materials.
-
Page 16: Service And Maintenance
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Service and Maintenance Basic Safety Instructions: WARNING –... -
Page 17: Disassembly- Re-Assembly
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Loosen the socket head screws item A and remove the cover item C (see fig. 5). ... -
Page 18: Disposal
R o t a r y H a m m e r D r i l l P n e u m a t i c 2 2 4 0 4 0 0 3 0 Disposal Dispose of machine and worn out/defective machine tools according the local/national regulations. Fully disassemble the machine for the necessary disposal. -
Page 19: Declaration Of Conformity
Description: Pneumatic Rotary Hammer Drill Type: 2 2404 0030 meets the fundamental requirements of the EC Machine Directive 2006/42/EC. Furthermore we declare the conformity of the product as defined by the EU-Directive 2014/34/EU with the specification:... - Page 20 Toll-free: 1-800-700-5919 (USA & Canada) Phone: 203-853-9522 CS Unitec, Inc. (outside USA & Canada) 22 Harbor Ave, Norwalk, CT 06850 Fax: 203-853-9921 E-Mail: info@csunitec.com Internet: www.csunitec.com 1-800-700-5919 (US/CA) +1-203-853-9522 (Intl.) www.csunitec.com info@csunitec.com...
