Summary of Contents for Asus ROG Swift OLED PG39WCDM

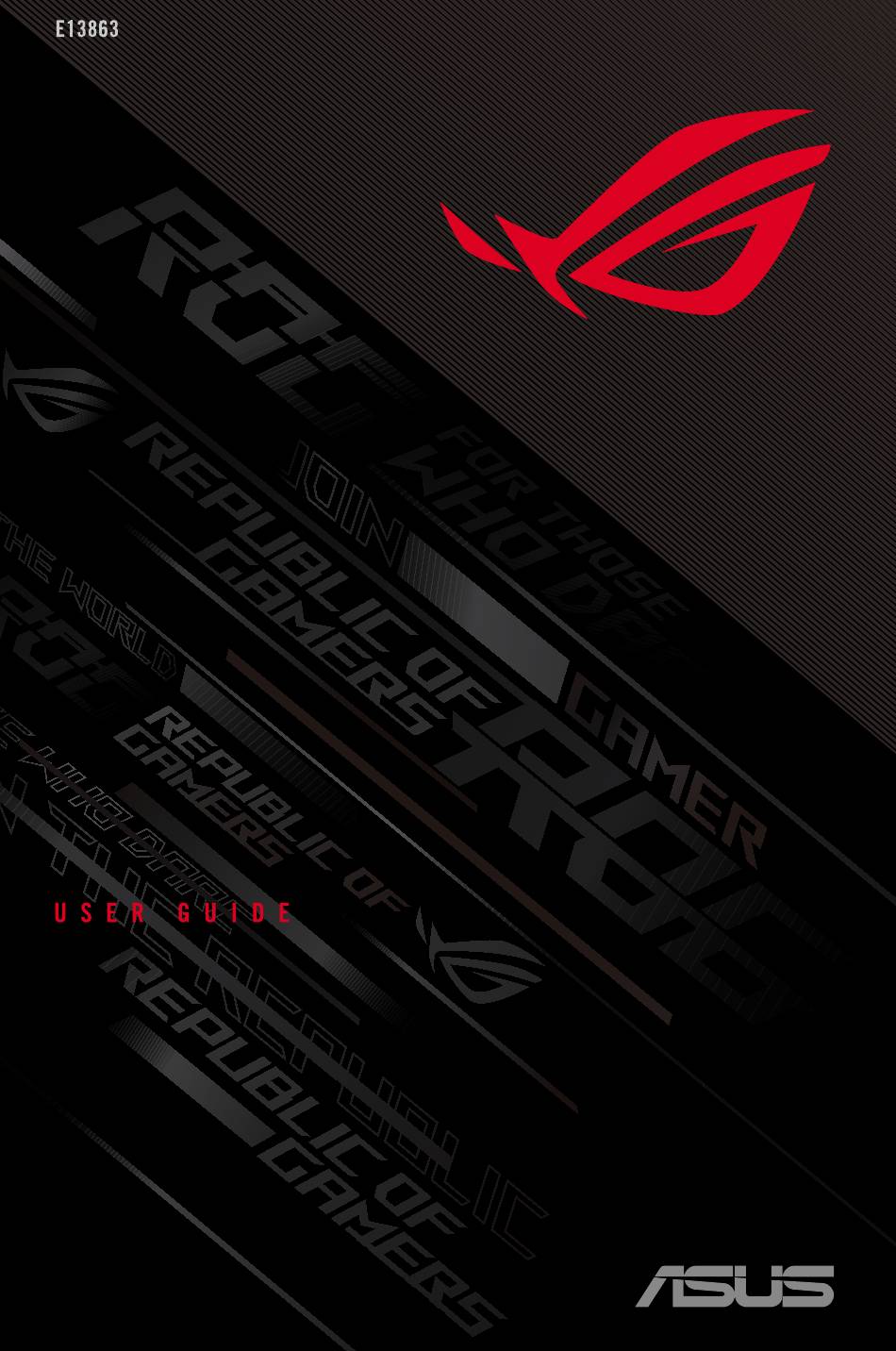

- Page 1 SWIFT OLED PG39WCDM...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
Contents Notices ......................iv Safety information ..................v Care & Cleaning ..................ix Welcome ..................1-3 Package contents ................. 1-3 Attaching the Stand ..............1-4 Connect cables ............... 1-7 1.4.1 Rear of the OLED monitor ..........1-7 Monitor introduction ..............1-8 1.5.1 Using the Controls button .......... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. This Class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations. - Page 6 • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label.
- Page 7 The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions. A product may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such ALWAYS use cabinets or stands or installation methods recommended by the manufacturer of the product set.
- Page 8 TÜV Rheinland Flicker Free Certification. This product to ascertain whether the display produces visible and invisible flicker for the human eye and therefore strains the eyes of users. ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F, No.15, Address 48720 Kato Rd, Fremont, Address Harkortstr. 21-23 Lide Rd., Beitou Dist.,...
-
Page 9: Care & Cleaning
Prevent Tipping When using the display, fasten the OLED to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Cord or chain • Display design may differ from those illustrated. •... - Page 10 CAUTION: Information to prevent damage to the components when trying to complete a task. IMPORTANT: Information that you MUST follow to complete a task. NOTE: Tips and additional information to aid in completing a task. ASUS LCD Monitor PG Series...
- Page 11 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
-
Page 12: Welcome
® Thank you for purchasing the ASUS OLED Gaming monitor! The latest widescreen OLED monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 13: Attaching The Stand
Attaching the Stand To assemble the monitor: • While assembling the monitor stand/base, we recommend that you keep the monitor inside its EPS (Expanded Polystyrene) packaging. Take out all accessories from the molded pulp. Take out the molded pulp. Push open stand assembly hole. Chapter 1: Product Introduction... - Page 14 Align and install the stand to its compartment on the rear of the monitor. Align and install the base to the stand. Fix the base to the stand by fastening the bundled screw. By aligning with the magnetic pads, install the LED projection cover to the stand. ASUS LCD Monitor PG Series...
- Page 15 Remove the monitor from the bottom EPS. • Please do not hold the panel. We recommend hold the monitor stand to pick up monitor. • Base screw size is M5 x 25 mm. Adjust the monitor to the angle that is most comfortable for you. Chapter 1: Product Introduction...
-
Page 16: Connect Cables
USB 2.0 Type A Port AC-IN Port HDMI-1 Port HDMI-2 Port DisplayPort USB Type-C Port USB 3.2 Gen 1 Type-B Port 10. USB 3.2 Gen 1 Type-A Port 11. SPDIF OUT Port 12. Kensington Lock ASUS LCD Monitor PG Series... -
Page 17: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control buttons on the rear of the monitor to adjust the monitor settings. Input Select Power USB-C DisplayPort Turn On HDMI-1 Turn Off HDMI-2 Menu ≥ 5 s Power Indicator: The color definition of the power indicator is as the below table. Status Description Amber... -
Page 18: Gamevisual Function
MOBA Mode: This is the best choice for Multiplayer Online Battle Arena (MOBA) games playing with GameVisualTM Video intelligence Technology. • Night Vision :This is the best choice for dark scenery playing with GameVisuallTM Video intelligence Technology. ASUS LCD Monitor PG Series... - Page 19 • User Mode: More items are adjustable in the Color menu. • In the Racing Mode, the Saturation and Sharpness functions are not userconfigurable. • In the sRGB, the Saturation, Color Temp., Contrast functions are not user-configurable. • In the MOBA Mode, the Saturation function is not user- configurable.
-
Page 20: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. -
Page 21: Outline Dimension
Outline dimension Unit: mm 890.231 131.745 [890.23] [131.75] 610.831 41.549 276.153 [610.83] [41.55] [276.15] ASUS LCD Monitor PG Series... -
Page 22: Detaching The Arm/Stand (For Vesa Wall Mount)
Then install the monitor to the wall mount. • The VESA wall mount kit (100 x 100 mm). • Use only the UL Listed Wall Mount Bracket with minimum weight/load 28.8 kg (Screw size: M4 x 10 mm). ASUS LCD Monitor PG Series... -
Page 23: Osd (On-Screen Display) Menu
Move the Navigation button up/down to change the settings of the selected function. To exit and save the OSD menu, move the Navigation button left repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1 to 3. ASUS LCD Monitor PG Series... -
Page 24: Osd Function Introduction
ROG Swift PG38UQ HDR OFF Variable Refresh Rate Gaming ELMB GamePlus Image GameVisual Shadow Boost Color ASUS DisplayWidget Center Input Select PIP/PB Volume 50 Back Enter Exit • Variable Refresh Rate:Allow an Adaptive-Sync supported graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update. - Page 25 Shadow Boost: Adjust the monitor gamma curve to enrich the dark tones in an image, making dark scenes and objects much easier to be seen. • ASUS DisplayWidget Center: Down load ASUS DisplayWidget Center by QR code. Image Configure the image settings. DisplayPort 3840x2160 120Hz...
- Page 26 • VividPixel: Enhance the outline of the displayed picture and generates high-quality images on screen. • Clear Pixel Edge: Effectively reduces color fringing on the edges of the displayed image • HDR Setting: Set the HDR mode to Gaming HDR, Cinema HDR, or Console HDR.
- Page 27 Hight energy blue light may lead to eye strain and AMD(Age- Related Macular Degeneration).Blue light filter to reduce 70%(max.) harmful blue light to avoiding CVS (Comouter Vision Syndrome) • The following functions will be disabled when Blue Light Filter is turned on: – ELMB ASUS LCD Monitor PG Series...
- Page 28 Color Select the image color you like from this function. DisplayPort 3840x2160 120Hz ROG SWIFT PG39WCDM GameVisual Input Select Racing Mode 3440 x 1440 240Hz Racing Mode HDMI-2 ROG Swift PG38UQ HDR OFF Display Color Space sRGB Gaming Color Temp. DCI-P3 Saturation Wide Gamut...
- Page 29 Input Select Racing Mode 3440 x 1440 240Hz Racing Mode HDMI-2 ROG Swift PG38UQ HDR OFF PIP/PBP Mode Gaming PIP/PBP Source Color Setting Image PIP Size Color Input Select PIP/PBP Back Volume 50 Enter Exit ASUS LCD Monitor PG Series...
- Page 30 • PIP/PBP Mode: Select PIP, PBP or turn it off. • PIP/PBP Source: Selects the video input source among, USB-C, DisplayPort, HDMI-1, HDMI-2. • Color Setting: Set GameVisual mode for each PIP/PBP window. • PIP Size: Adjust the PIP size to “Small”, “Middle”, or “Large”. Lighting Effect DisplayPort 3840x2160 120Hz ROG SWIFT PG39WCDM...
- Page 31 Brightness, Mute, Shadow Boost, Contrast, Input Select, HDR Setting, Blue Light Filter, Color Temp., Volume, Smart KVM, KVM, Pixel Cleaning, Customized Setting-1, Customized Setting-2 and set as shortcut key. • Customized Setting: Load/Save all settings on the monitor. ASUS LCD Monitor PG Series...
- Page 32 System Setup Adjust the system configurations. DisplayPort 3840x2160 120Hz ROG SWIFT PG39WCDM GameVisual Input Select Racing Mode 3440 x 1440 240Hz Racing Mode HDMI-2 ROG Swift PG38UQ HDR OFF Language English Lighting Effect Français Sound USB Setup Dautsch MyFavorite USB-C Charging Español Proximity Sensor Italiano System Setup Power Indicator...
- Page 33 Step 1 SPDIF OUT Computer 2 Computer 1 Step 2 Step 1 SPDIF OUT • USB-C Charging: Set charging power to 65W or 90W. When 90W is selected, USB hub will be turned off. ASUS LCD Monitor PG Series 3-11...
- Page 34 • Proximity Sensor: Embedded proximity sensor prompts the monitor to switch power saving mode when it detects the user is away for 180 seconds and resumes normal operation when user comes back. The function will adjust the sensor sensitivity according to usage habit–50cm(Low)/80cm(Middle)/110cm(High).
- Page 35 DP version. • DSC Support: Enable/Disable the DSC (Display Stream Compression) function. • Information: Display the monitor information. • All Reset: Select YES to revert all settings to the factory default mode. ASUS LCD Monitor PG Series 3-13...
-
Page 36: Aura Sync
If the USB upstream connection between the monitor and computer is disconnected, to resume the Aura function, you need to re-connect the USB 3.0 upstream port of the monitor to the computer and then restart the computer. • Visit https://rog.asus.com/innovation/armoury_crate/ for more details. 3-14 Chapter 3: General Instruction... -
Page 37: Specifications
VESA wall mount 100 x 100 mm Kensington lock Voltage rating AC 100-240V, 50/60 Hz Power On:< 35 W Power consumption Standby:<0.5 W Power Off:<0.3 W Temperature (Operating) 0°C ~ 40°C -20˚C ~ +60˚C Temperature (Non-operating) ASUS LCD Monitor PG Series 3-15... - Page 38 Phys. Dimension with stand 890 x 575 x 318 mm (WxHxD) Phys. Dimension without 890 x 424 x 187 mm stand (WxHxD) 980 x 525 x 345 mm Box Dimension (WxHxD) 6.94 Weight without stand (Esti.) 9.61 Net Weight (Esti.) 15.32 Gross Weight (Esti.) 3-16...
-
Page 39: Troubleshooting (Faq)
No sound or sound is low • Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Check the audio source. ASUS LCD Monitor PG Series 3-17... -
Page 40: Supported Timing List
Supported Timing List PC Supported Primary Timing H Freq V Freq DCLK Resolution HDMI2.1 DP1.4 (KHz) (Hz) (MHz) 640x480-60Hz 31.469 59.94 25.175 640x480-75Hz 37.5 31.5 800x600-60Hz 37.879 60.317 800x600-75Hz 46.875 49.5 1024x768-60Hz 48.363 60.004 1024x768-75Hz 60.023 75.029 78.75 1280x720-60Hz 44.772 59.855 74.5 1280x960-60Hz... - Page 41 (KHz) (Hz) (MHz) 1280X960-60Hz 259.028 239.841 2560x1440-60Hz 88.787 59.951 241.5 2560x1440-120Hz 183.015 120.01 497.8 1024x768-240.0Hz 207.348 239.986 245.5 1728X1080-240Hz 291.678 239.982 550.5 1920x1440-240Hz 358.337 240.012 752.15 1920x1080-240Hz 291.587 239.989 606.5 2560x1440-240Hz 388.235 239.799 1056 ASUS LCD Monitor PG Series 3-19...
- Page 42 PBP Mode Timing H Freq V Freq DCLK Resolution HDMI2.1 DP1.4 (KHz) (Hz) (MHz) 1720x1440-60Hz 89.484 59.936 167.00 1720x1440-120Hz 182.979 119.986 1720x1440-240Hz 358.362 240.028 1920x1080-240Hz 291.587 239.989 606.5 880x1440-60Hz 88.702 59.893 92.25 880x1440-120Hz 182.033 119.956 190.25 880x1440-240Hz 388.462 239.939 1920x1080-240Hz 291.587 239.989 606.5...
Need help?
Do you have a question about the ROG Swift OLED PG39WCDM and is the answer not in the manual?
Questions and answers
i locked myself out of my osd menu
To unlock and use the OSD (On-Screen Display) menu on the ASUS Swift OLED PG39WCDM:
1. Press the Enter button to activate the OSD menu.
2. Use the Navigation button (up/down) to highlight a function.
3. Press Enter to select it. If it has a sub-menu, use the Navigation button again to navigate and press Enter or move right to activate it.
4. Use the Navigation button up/down to adjust the selected setting.
5. To exit and save, move the Navigation button left repeatedly until the menu disappears.
