PROGLOVE
USER MANUAL
Technical document
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MARK 2 and is the answer not in the manual?

Questions and answers

Related Manuals for ProGlove MARK 2

Summary of Contents for ProGlove MARK 2

  • Page 1 PROGLOVE USER MANUAL Technical document...

  • Page 2: Table Of Contents

    Battery Safety .............. 6 step: Connect Scanner.......... 24 Battery Information ............. 7 step: Scan ............. 30 SCOPE OF DELIVERY step: Disconnect ProGlove System ...... 31 Hardware & Wearables ..........8 step: Release Scanner from Wearables ....35 TECHNICAL PROPERTIES CONFIGURE DEVICES AND FIRMWARE UPDATE Scanner ................
  • Page 3 STORAGE AND CLEANING Storage ............... 42 Cleaning ..............42 SOLUTION TO THE PROBLEM Scanner ............... 43 Access Point - Data transfer ........45 BLE - Data transfer ............. 46 Gateway - Data transfer ..........47 Charging Station ............48 DISPOSAL ............49 DIRECTIVES &...
  • Page 4 It is intended for process planners, configurators and maintenance technicians who are using ProGlove system CAUTION for the first time. It is designed so that ProGlove system Slight bodily injury or danger of physical damage to can be used safely without prior knowledge.

  • Page 5: Safety Instructions

    CAUTION WEARABLES Do not unscrew the Hardware housing! This may otherwise lead to ProGlove system not CAUTION functioning properly. Keep Wearables away from moving machine parts and do not use without a scanner CAUTION Otherwise the Wearables may get stuck on objects.

  • Page 6: Battery Safety

    If you have any questions about the compatibility of a battery or a charger, contact ProGlove support. • Do not disassemble or open, crush, bend or deform, puncture, or shred.

  • Page 7: Battery Information

    BATTERY INFORMATION ProGlove approved rechargeable devices are designed and constructed to the highest standards within the industry. However, there are limitations as to how long a device can operate or be stored before needing replacement. Many factors affect the actual life cycle of a battery pack such as heat, cold, harsh environmental conditions, and severe drops.

  • Page 8: Scope Of Delivery

    Do not use any damaged Hardware or Wearables! Check whether Hardware and Wearables are properly  packaged and undamaged. SCANNER USB CONNECTION Access MARK 3 MARK 2 MARK Basic MARK Display Gateway 1 Point One S with USB WEARABLES with USB...

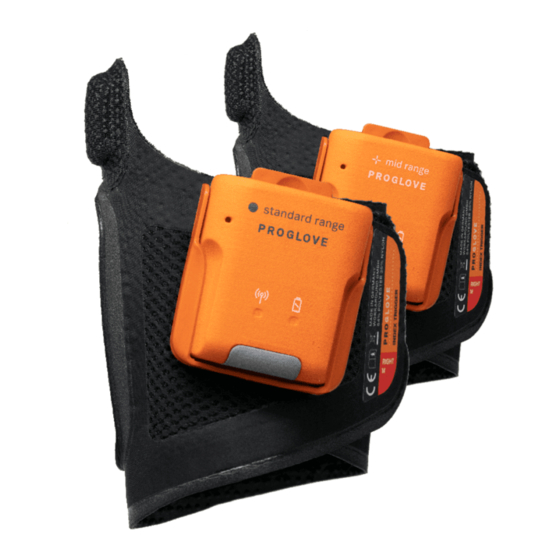

  • Page 9: Scanner

    Standard range serial number: MXSR ... symbol Mid range serial number: MXMR ... LEDs Standard range (available for MARK 2, MARK Basic, MARK Display): MARK DISPLAY 4 - 31 in (10 - 80 cm) Mid range (available for MARK 2, MARK Basic, MARK...
  • Page 10 Battery type: ......Lithium polymer (rechargeable) Charge duration: ..... 2 hours BARCODE TYPES - POSTAL: Number of scans: ....MARK 2: up to 12000 scans MARK Basic: up to 7000 scans US PostNet, US Planet, UK Postal, Australia Postal, Japan (depending on application Postal, Dutch Postal (KIX) et al.
  • Page 11 IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019. Max radio-frequency power transmitted: ....<20dBm Laser safety according to EN60825-1:2014 and IEC 60825-1 (Ed. 3.0). NOTE Further technical specifications are available on docs.proglove.de...
  • Page 12 Max radio-frequency power transmitted: ....<20dBm Laser safety according to EN60825-1:2014 and IEC 60825-1 (Ed. 3.0).(mid range) INTEGRATION REQUIREMENT: ProGlove Connect: ..... Provides a full featured integration NOTE for Android enterprise applications. Further technical specifications are available on All information on docs.proglove.de.

  • Page 13: Connectivity Device

    USB CDC mode, the device must be set to “USB CDC” the device must be set to “USB CDC” in the configuration tool (config. in the ProGlove Insight Configuration Tool (https://insight.proglove. proglove.de) under “Device settings - Output mode”.
  • Page 14 Standard setting: 115.200 (752kHz channel spacing) Data bits: ........ 8 Stop bits: ........ 1 Max radio-frequency power transmitted: .... <20dBm Parity: ........NONE Data flow: ....... OFF NOTE Further technical specifications are available on Handshake control: ....OFF docs.proglove.de.
  • Page 15 (keyboard input on host) USB CDC (virtual com port) ProGlove Deep Integration Protocol via USB WIRELESS COMMUNICATION: BLE : ............... 2400 - 2483.5 MHz WiFi : ............... 2400-2483.5 MHz Max radio-frequency power transmitted: ..... <20dBm NOTE Further technical specifications are available on docs.proglove.de.

  • Page 16: Charging Station

    Use the provided power supply only. Using any other type of AC power supply is prohibited. Attachment opening for M5 NOTE screws Pins Further technical specifications are available on docs.proglove.de. Charging tray USB-C Attachment opening for Label with serial number cable ties...
  • Page 17 10-SLOT CHARGING STATION OVERVIEW TECHNICAL DATA The 10-Slot Charging Station provides multiple options MECHANICAL PROPERTIES: to mount to flat surfaces, workstations and racks. The Dimensions: ......298 x 203 x 25 mm charging status is indicated by the LEDs of the scanner. (3.74 x 2.06 x 0.94 in) The LEDs pulse red while in charging mode.

  • Page 18: Wearables

    WEARABLES HAND STRAP PROPERTIES The ProGlove Hand Strap offers an elastic, adjustable Velcro GENERAL: closure that ensures an optimal fit for any user's hand size and shape. It can be worn with or without other gloves Packaging unit: ···························· 3 or 10 pieces per package underneath.
  • Page 19 WEARABLES INDEX TRIGGER PROPERTIES GENERAL: The ProGlove Index Trigger offers hand size optimized variants and can be wrapped around the hand in one movement. The thumb hole fixes the wrap in the correct Packaging unit: ···························· 3 or 10 pieces per package position and the flexible Velcro mechanism allows it to be securely fastened to the user's hand.
  • Page 20 WEARABLES REEL PROPERTIES GENERAL: The ProGlove Reel can be attached with the black, rotating fastening clip to the desired spot. This can be, for example, on the user's clothing or on a belt. Alternatively, the Reel Packaging unit: ························ 2 reels per package can also be worn on a lanyard around the neck.

  • Page 21: Compatibility Matrix

    (s. page 18) PG INSIGHT MOBILE (s. page 20) (s. page 20) (s. page 20) (s. page 29) NOTE For a simplified display, only a MARK 2 scanner and, if necessary, an Access Point will be used in the next steps.

  • Page 22: St Step: Charge Scanner

    APPLICATION OF PROGLOVE SYSTEM STEP: CHARGE SCANNER STEP: CONNECT THE CONNECTIVITY DEVICE CAUTION CAUTION Only use scanner in a dry Charging Station and only Only touch the connectivity device with dry hands! touch with dry hands! This may otherwise lead to the connectivity device not This may otherwise lead to the Charging Station not functioning properly.
  • Page 23 The baud rate is set to 115,200 as a 3. In the configuration tool standard. At a different baud rate, this under (https://insight.proglove.com/) is to be set in the configuration tool “Connectivity Configuration > Inte- (config.proglove.de) gration Path” select USB CDC.

  • Page 24: Rd Step: Switch On Scanner

    Scanner switches off automatically after 15 minutes (BLE) without being used. CONNECT VIA PG INSIGHT MOBILE: For using MARK Display or MARK 2 / MARK Basic  with PG Insight Mobile via Software Keyboard, Intent or SDK find more information under proglove.com/support...
  • Page 25 CONNECT VIA BLE HID TO AN END DEVICE On a battery-operated end device, the power-saving mode can lock the end device and MARK 2 simultaneously. The scanner can be used to establish a connection via Permanently disable the power-saving mode of the ...
  • Page 26 CONNECT WITH APPLE iOS 11 OR HIGHER: RESULT MARK 2 - 00000 MARK 2 - 00000 Under “Settings - Bluetooth,” Select “MARK 2 - 00000”. Confirm the “Bluetooth Pairing The scanner will flash blue twice activate the Bluetooth option. Request”.
  • Page 27 MARK 2 - 00000 - 00000 Under “Settings - Connected Tap “Bluetooth” and select Select ‘MARK 2 - 00000’. The scanner will flash blue twice devices,” switch on the Bluetooth “Pair new device.” and you will hear two beeps. The option.
  • Page 28 CONNECT WITH MICROSOFT WINDOWS 10: MARK 2 - 00000 MARK 2 - 00000 Under “Bluetooth & other Select the option “Bluetooth: Select “MARK 2 - 00000”. Click “Done”. devices,” click on “Add Bluetooth Mouses, keyboards and and other devices”. other types”.
  • Page 29 RESULT MARK 2 - 00000 The scanner will flash blue twice and you will hear two beeps. The scanner will be shown as connected under “Bluetooth & other devices,” and is ready for use.

  • Page 30: Th Step: Scan

    STEP: SCAN CAUTION 1. Press the textile trigger on For mid range scanning range: do not look directly into the glove in order to activate the crosshairs! the crosshairs. Otherwise this can lead to temporary blinding effects. 2. Aim scanner crosshairs at the barcode and scan.

  • Page 31: Th Step: Disconnect Proglove System

    STEP: DISCONNECT SCANNER DISCONNECT SCANNER FROM THE DISCONNECT THE CONNECTION CABLE CONNECTIVITY DEVICE FROM THE GATEWAY: Use the scanner  to scan the pairing code of a different Gateway. RESULT RESULT Scanner is disconnected from the Gateway and is The LED of the Gateway no longer lights up green. connected to a new Gateway.
  • Page 32 Only disconnect scanner if this is to be newly connected to another end device. DISCONNECT FROM APPLE iOS: RESULT MARK 2 - 00000 Under: “Settings - Bluetooth,” tap Tap on “Forget this device.” Confirm “Forget Device.” The scanner will flash red three on the symbol.
  • Page 33 In the Bluetooth option under Select “Forget.” The scanner will flash red three “Paired devices,” tap on the times and you will hear three gear wheel symbol of “MARK 2 - beeps. Scanner will no longer be 00000.” shown as connected under “Paired devices.”...
  • Page 34 MARK 2 - 00000 Under “Bluetooth & other devic- Click “Remove device.” The scanner will flash red three es,” select “MARK 2 - 00000.” times and you will hear three beeps. Scanner will no longer be shown as connected under...

  • Page 35: Th Step: Release Scanner From Wearables

    This may otherwise lead to bended pins.  More information about releasing the scanner correctly can be found under proglove.com/support. 1. Use your fingers to press between scanner and the fastening rail of the wearable. 2. Press scanner up slightly...

  • Page 36: Firmware Update

    CONFIGURE DEVICES AND FIRMWARE UPDATE The configuration tool under https://insight.proglove.com/ > Device Visibility > Configurations can be used to individually set the ProGlove System to improve scanning processes and to update the firmware. All information are available here: General information about configuration and →...

  • Page 37: General Scanner

    SINGAL TABLE GENERAL SCANNER: Description Connection symbol Battery symbol Audio signal Vibration Barcode data could be Short green Short positive Short vibration transferred flashing beep Barcode data could not be Red flashing 3 Long negative Long vibration transferred times briefly beep Battery charge under 10% Slow red flashing...

  • Page 38: Connection Via Access Point

    (915) SCANNER CONNECTION VIA ACCESS POINT: Description Connection symbol Battery symbol Audio signal Vibration Scanner is connected to Blue flashing 2 Blue flashing 2 Short rising Short vibration the Access Point times briefly times briefly positive beep SCANNER CONNECTION VIA BLE: Description Connection symbol Battery symbol...

  • Page 39: Mark Display

    Description Audio signal Vibration Screen MARK Display boots up LED loop Short rising positive Short vibration beep MARK Display is in Standby Mode MARK Display is ready to connect MARK Display is connect- Blue pulsing Continuously rising beep MARK Display is connect- Short rising positive Short vibration ed to an end device...
  • Page 40 Description Audio signal Vibration Screen MARK Display lost the Red flashing 3 Negative beep Short vibrations 3 connection to end device times briefly briefly 3 times times briefly MARK Display tries to Blue pulsing Continuously rising reconnect to end device beep MARK Display is recon- Blue flashing 2...
  • Page 41 Green pulsing charged Barcode data could be Short green Short positive beep Short vibration transferred flashing Barcode data could not be Red flashing 3 Long negative beep Long vibration transferred times briefly GATEWAY ▶ The signal table is available at docs.proglove.com/en/led-feedback.html...

  • Page 42: Storage And Cleaning

    CAUTION: dirt-free environment. In case of transport, ProGlove Protect Hardware from moisture! System must be transported shockproof in its original This may otherwise lead to ProGlove System not packaging. functioning properly. TEMPERATURE: Store the Hardware as well as Wearables in an CAUTION: environment between - 4°F (-20°C) and 140°F (+60°C).

  • Page 43: Solution To The Problem

    SOLUTION TO THE PROBLEM SCANNER PROBLEM CAUSE SOLUTION Scanner is not responding. Battery is not charged. Charge Scanner in the Charging Station  for at least 20 min. Wearable is defective. Change wearable.  Scanner is not vibrating or does not Feedback signals are disabled.
  • Page 44 To enhance the scanning performance, make  barcodes are hard to scan. the following settings in the configuration tool under “Symbology settings”. (config.proglove.de) Fuzzy 1D processing: ON Scanner glass is dirty. Clean the scanner glass with a cotton swab. ...

  • Page 45: Access Point - Data Transfer

    (maximum range is < 98 ft. (30m)) Access Point is defective. Access Point must be replaced. More detailed information can be  found at proglove.com/support Scanner is defective. Scanner must be replaced. More detailed information can be  found at proglove.com/support...

  • Page 46: Ble - Data Transfer

    BLE - DATA TRANSFER PROBLEM CAUSE SOLUTION Barcode data is not transferred. Scanner is not connected to the 1. Scan the pairing barcode. end device. 2. Lights up blue twice briefly while scanner is connecting and after a successful connection. Scanner lights up green after the Scanneris out of range of the end Bring scanner closer to the end device and scan...

  • Page 47: Gateway - Data Transfer

    (Maximum range is 100 - 130 ft. (30 - 40m)) Gateway is defective. Gateway must be replaced. More detailed information can be found at  proglove.com/support Scanner is defective. Scanner must be replaced. More detailed information can be found at  proglove.com/support...

  • Page 48: Charging Station

     to power source. Scanner is defective. Scanner must be replaced. More detailed information can be found at  proglove.com/support Charging Station is defective. The Charging Station must be replaced. More detailed information can be found at  proglove.com/support TIP 1...

  • Page 49: Disposal

    Workaround GmbH, hereby declares that the ProGlove Wearable 2012 regarding waste electrical and electronic equipment Barcode Scanners (MARK Basic, MARK 2, MARK Display, LEO, (WEEE). That is why MARK system cannot be disposed of MARK 3) are in compliance with the following directives: through household waste.
  • Page 50 Workaround GmbH in many countries, including the U.S. and · Es posible que este equipo o dispositivo no cause the E.U. MARK and LEO is a trademark of ProGlove GmbH interferencia perjudicial y and/or its affiliates, registered in many countries including the U.S.
  • Page 51 RF energy that are deemed to comply without testing of specific ProGlove System absorption rate (SAR). The ProGlove System, comprised of: MARK 3, MARK 2 MR, MARK Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et 2 SR, MARK Basic, MARK Display, LEO, Charging Station S, Access respecte les règles d’exposition aux fréquences...
  • Page 52 (mid range). Under the regulations of the IC the user has to be aware of the following when using the ProGlove MARK: 1. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:...

  • Page 53: Support

    SUPPORT TECHNICAL SUPPORT CONTACT DATA If you have questions about integrating or using the ProGlove devices, our customer support department will be happy to help you. They will process your request as soon as possible. You can reach them at: SUPPORT WEBSITE: proglove.com/support...
  • Page 54 Workaround GmbH Building 64.08a Rupert-Mayer-Str. 44 81379 München Germany ProGlove Inc. 520 W. Erie St. Suite 400 Chicago, IL. 60654 ProGlove Ltd. Coventry University Technology Park Puma Way, Coventry CV1 2TT, UK United Kingdom Support at: support@proglove.com...
