Summary of Contents for Pro DG Systems IBIZA LA 212 P
-
Page 2: Table Of Contents
This manual has been designed to help IBIZA LA 212 P system users from Pro DG Systems to its correctly use and understand its benefits and versatility. Before using the product, carefully read “Precautions” section of this manual (pages 4 - 5). Please keep this document in a safe place for future reference. - Page 3 Flight hardware Safety instructions ….………………..……………………………………………………... 19 - 20 Components ………………..…………………………………………………………. 20 - 21 - 22 How to fly the system up ……………….………………………………………………….. 23 - 24 Stack mode usage ………………………………………………………………………….…… 25 Ease Focus prediction software ………………………………………………………………….….. 26 Accessories ………………..…….…………………………………………………………….……… 27...
-
Page 4: Precautions
Precautions Please read, keep and follow all safety and use instructions. Important Safety Instructions. 1. Heed all warnings. 2. Do not overload the box to avoid damage to the speakers. 3. Do not use this product near water. If the box is used outdoors, make sure that no humidity can enter the box. -
Page 5: Warranty
Contains small parts which may be a choking hazard. Not suitable for children under age Warranty All the Pro DG Systems products have a 24-month warranty period, which begins from the invoice date of the first purchase. Consult everything relevant to the warranty conditions at Pro DG Systems website: https://prodgsystems.com/20-vc-warranty.html... -
Page 6: Declaration Of Conformity
Declaration of conformity Pro DG Systems declares that the product with reference IBIZA LA 212 P complies with the objectives expressed in the following European Directives: - Low voltage 2014/35/UE. - Electromagnetic compatibility 2014/30/UE. - RoHS 2011/65/UE. About restrictions on the use of certain dangerous substances in electrical and electronic equipment. -
Page 7: Description

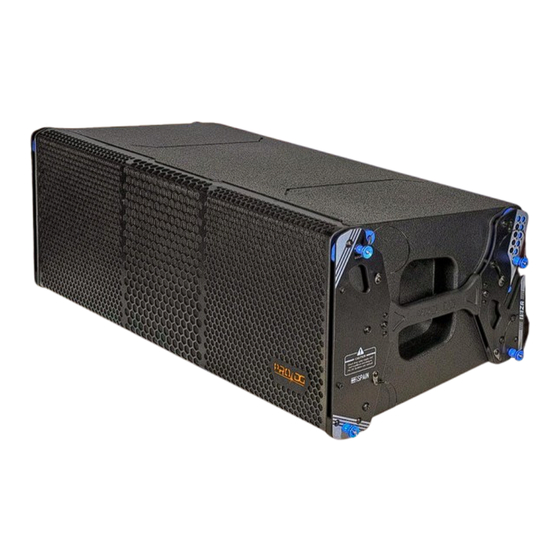

Ease Focus prediction software is available. At Pro DG Systems we know the importance for professionals of having a flexible, easily configurable system that guarantees maximum sound performance without the cost of external processors or additional wiring. - Page 8 Its front part is protected by a robust metal grille and acoustic foam. The flight hardware design of IBIZA LA 212 P system is quick and intuitive to use. The fly bar also allows the use of several units in stack format.
-
Page 9: Technical Datasheet
Technical datasheet IBIZA LA 212 P Power handling 1800 W RMS / 3600 W program / 7200 W peak. Maximum SPL Calculation 1m / 134 dB continuous / 137 dB program / 140 dB peak. Nominal impedance 8 Ohm. Frequency range 60 - 20000 Hz. -
Page 10: Architectural Specifications
Architectural specifications User guide. First steps Turning On / Off Turning on any sound system must be done from back to front. Turn on sources such as CD players first, then the mixer, then the processors, and finally the amplifiers. When turning off the sound system, follow the reverse process, turning off the amplifiers before any other element of the system. -
Page 11: Troubleshooting
User guide. Troubleshooting Problem Cause Solution Neither unit sounds. 1. The amplifier is not sending 1. Check that the amplifier is signal. turned on and that the gain is not at minimum. 2. Defective cable. 1.2 Check that the signal is 3. - Page 12 3. Contact your Systems distributor authorized professional to perform the repair. If you have any technical problem or questions about Pro DG Systems products; contact our technical support department at: sat@prodgsystems.com...
-
Page 13: Speakers
Speakers IBIZA LA 212 P has two 12” Beyma speakers with neodymium magnet, one of them in charge of reproducing low frequencies and another one for medium frequencies. Speaker for LF - main characteristics Power handling of 1000 W RMS / 2000 W program... - Page 14 Speaker for LF - architectural --------------------------------------------------------------------------------------- Speaker for MF - main characteristics Power handling of 700 W RMS / 1400 W program Exclusive cooling system with Malt Cross technology * Optimized neodymium magnetic circuit 3” DUO Double Layer Input / Output Copper Voice Coil Aluminum demodulator ring Weather resistant cone with treatment on both sides 3,7 Kg weight (per unit)
- Page 15 * Malt Cross technology allows the speaker to handle higher powers with a given coil diameter, reducing weight and increasing sensitivity, while maintaining a total output SPL equivalent to a bigger and heavier speaker. Malt Cross technology is an internal forced convection circuit that allows the working temperature of the voice coil to be reduced and, likewise, acts as a demodulator ring, linearizing the inductance of the transducer [dB]...
-
Page 16: Compression Driver
Compression driver The HF section of the IBIZA LA 212 P has one 1/4” Beyma compression driver with neodymium magnet, in charge of reproducing high frequencies. Main characteristics Power handling of 100 W RMS / 200 W program above 1.2 kHz... - Page 17 [dB] [ohm] [Hz] Frequency response measured on axis coupled to the IBIZA LA 212 P horn in an anechoic chamber, 1 W @ 1 m. Architectural...
-
Page 18: Horn
Horn The compression driver of the IBIZA LA 212 P is coupled to a horn, specifically designed to achieve maximum performance and acoustic quality in high frequencies. Made of fiberglass (BMC) and polyurethane (PU2). The combination of both materials allows obtaining a horn with great resistance and low weight, also providing a perfect blend between medium and high frequencies. -
Page 19: Flight Hardware. Safety Instructions
- The fly bar for IBIZA LA 212 P (reference: FB LA 212) is designed to support up to a maximum of sixteen units IBIZA LA 212 P. In no case should the aforementioned number of units be exceeded. -
Page 20: Components
At Pro DG Systems we know the importance for the professional of installing the different systems in a simple, fast and safe way. IBIZA LA 212 P flight system has been designed to guarantee these purposes. The different components are detailed below: Herrajes Integrated into the box chassis itself. - Page 21 Made of high-strength steel with oven-dried black electrostatic powder paint finish. It allows the raise up of a maximum of sixteen units IBIZA LA 212 P. It also serves as a fixing base to use the system in stacked format on subwoofers.
- Page 22 Made of high-strength steel with oven-dried black electrostatic powder paint finish. Allows the combination of IBIZA LA 210 A and IBIZA LA 212 P Line Array systems. It allows the raise up of a maximum of sixteen units between both systems (example; eight units IBIZA LA 210 A + eight units IBIZA LA 212 P).
-
Page 23: How To Fly The System Up
Cómo volar el sistema Important: before flying the system, carefully read the subsection “Safety instructions”, located in the “Flight hardware” section (pages 34 - 35). Remove the locking pins located on the front and rear hardware to release the cams. Pull the cams up and secure them again using the pins. - Page 24 Install the fly bar to the box using the fixation pin locks. Then repeat step 2 for the following boxes fixation. The design of the cams included in the rear hardware prevents uncontrolled swinging when disassembling the last box of the array assembly.
-
Page 25: Stack Mode Usage
(1). Once located; it will be necessary to press the brake pedals of the trolley (2), as well as securing the array to the subwoofer by using slings In any case, it is not recommended to stack more than 6 IBIZA LA 212 P units. Brake pedals... -
Page 26: Ease Focus Prediction Software
SPL and general behavior of the system, in a simple and comfortable way for the user. It is very easy to use and we have training courses for users of Pro DG Systems products. For more information, consult our technical service at: sat@prodgsystems.com... -
Page 27: Accessories
It has a brake system and slots for fixing it using slings, etc. CV LA 212 Protection cover for four units IBIZA LA 212 P. Made of waterproof material. Complete system wiring ready to go.
