Taramps THS 6000 Instruction Manual

Taramps THS 6000 Instruction Manual

4 x 100w rms class d

Advertisement

Instruction manual
THS 6000
4 x 100W RMS
CLASS D
The installation of this product must be made by a qualified professional.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THS 6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Taramps THS 6000

  • Page 1 Instruction manual THS 6000 4 x 100W RMS CLASS D The installation of this product must be made by a qualified professional.
  • Page 2 +55 18 3266 4050 or our website www.taramps.com.br/en. Presentation The TARAMPS THS 6000 is a Multi Channel Receiver developed with high technology to integrate different environments. Compact and powerful it can be used in several applications providing quality sound.
  • Page 3: Important Recommendations

    Important recommendations - The THS 6000 must be installed in a rm and ventilated place, away from heat and humidity places. Avoid locations with direct sunlight. - Do not block the ventilation holes on the top and rear. - Avoid falls and impacts.

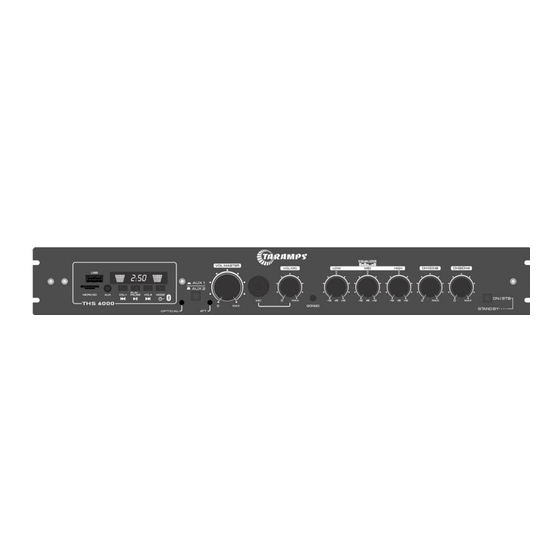

  • Page 4 Knowing your equipment Front Panel EQUALIZER VOL. MASTER THS 6000 OPTICAL 1 - MICRO SD: Micro SD memory card input. (The card must be positioned as the image shows, with the terminals facing up) 2 - USB: Input to Flash Drive.
  • Page 5 Front Panel (sequence) EQUALIZER VOL. MASTER THS 6000 OPTICAL 14 15 9 - OPTICAL: LED indicating the presence of an optical signal. Indicates that the current auxiliary input is optical. 10 - AUX1 / OPTICAL or AUX 2 KEY: Button pressed: Selects AUX1 and Optical inputs.
  • Page 6: Output Configurations

    Or even with 4 independent outputs. For configurations, the THS 6000 has three resources: two X-OVER keys to activate frequency filter depending on the type of box used, two ROUTE keys to direct the input signal to the outputs and BRIDGED output connections.
  • Page 7 L: Directs only the L channel to the CH1 and CH2 outputs. This case is only allowed when the THS 6000 will operate on 2 outputs (200W + 200W). To do this, the ROUTE key on CH3/CH4 must be in the “R” position and the speakers must be connected to the BRIDGED connections. In this case, the BRIDGED output of CH1/CH2 will reproduce the L channel and the BRIDGED output of CH3/CH4 will reproduce the R channel.
  • Page 8: Protection System

    Protection System The THS 6000 has a protection system against outputs overload and outputs short circuit. When the protections are activated, the ATT LED on the front panel turns on temporarily and the audio output is interrupted. About 2 seconds, or the audio is restored.
  • Page 9: Remote Control Function

    Remote Control Function O THS 6000 has a compact remote control, so you can remotely control the device with practicality. ON / OFF: touch this key to turn the player on or off. MODE: Switch the audio source (USB, BLUETOOTH, SD, AUXILIARY, FM).
  • Page 10 Bluetooth When selecting the Bluetooth function (identi ed with “bt” on the display), the THS 6000 waits for a Bluetooth connection. Search for the device called “TARAMPS” using your phone, tablet, PC or other and match it. - To connect to a new device, disconnect the current one and make the new Bluetooth pairing.
  • Page 11 TARAMPS long range remote control which allows you to control your sound over wide distances and without the need to point the control at the device. The THS 6000 does not lose the functionality of the USB port, as the connect control allows a Flash Drive to be plugged into its USB port.
  • Page 12 CH1/CH2: X-OVER in HPF, ROUTE in L/R CH3/CH4: X-OVER in HPF, ROUTE in L/R ROOM 2 ROOM 1 NOTE: The THS 6000 does not allow two signal sources to operate at the same time, known as dual zone. TOTAL: 200RMS STEREO...
  • Page 13: Technical Features

    The values mentioned are typical and may change due to the tolerance of components or the manufacturing process. For more information or questions visit our website or contact TARAMPS support. Taramps reserves the right to modify the contents of this manual without prior notice and not to apply the modi cations to units previously produced.
  • Page 14 12 months from the date of purchase. In case of defect during the warranty period, TARAMPS responsibility is limited to the repairing or replacement of the device of its own making.
  • Page 15 Manufactured by: TARAMPS ELECTRONICS LTDA TAX ID: 11.273.485/0001-03 Julio Budisk highway, SN, KM 30 Alfredo Marcondes - SP Made in Brazil...
