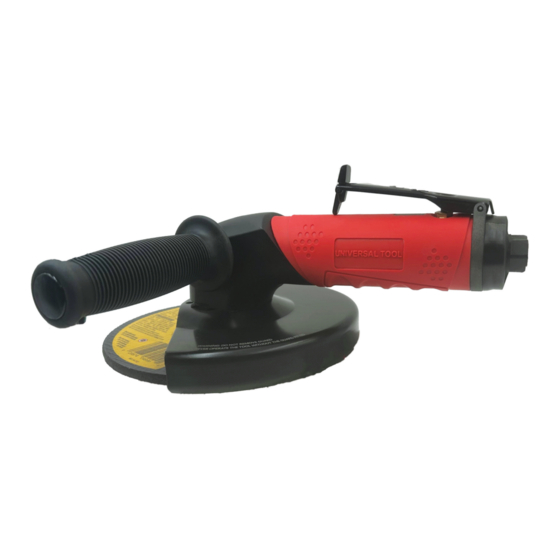

2.3 hp angle grinder
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Universal Tool
™
General Safety Information & Replacement Parts

TABLE OF CONTENTS

General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.
2 .3 HP Angle Grinder
GRINDERS & CUT-OFF TOOLS
WARNING: This product can expose you to lead, which is
known to the State of California to cause cancer. For more
information, go to www.P65Warnings.ca.gov.
Please contact 1-800-356-3392 for further assistance.
UT8787-23
UNIVERSALTOOLUSA.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UT8787-23 and is the answer not in the manual?

Questions and answers

Related Manuals for Universal Tool UT8787-23

Summary of Contents for Universal Tool UT8787-23

  • Page 1: Table Of Contents

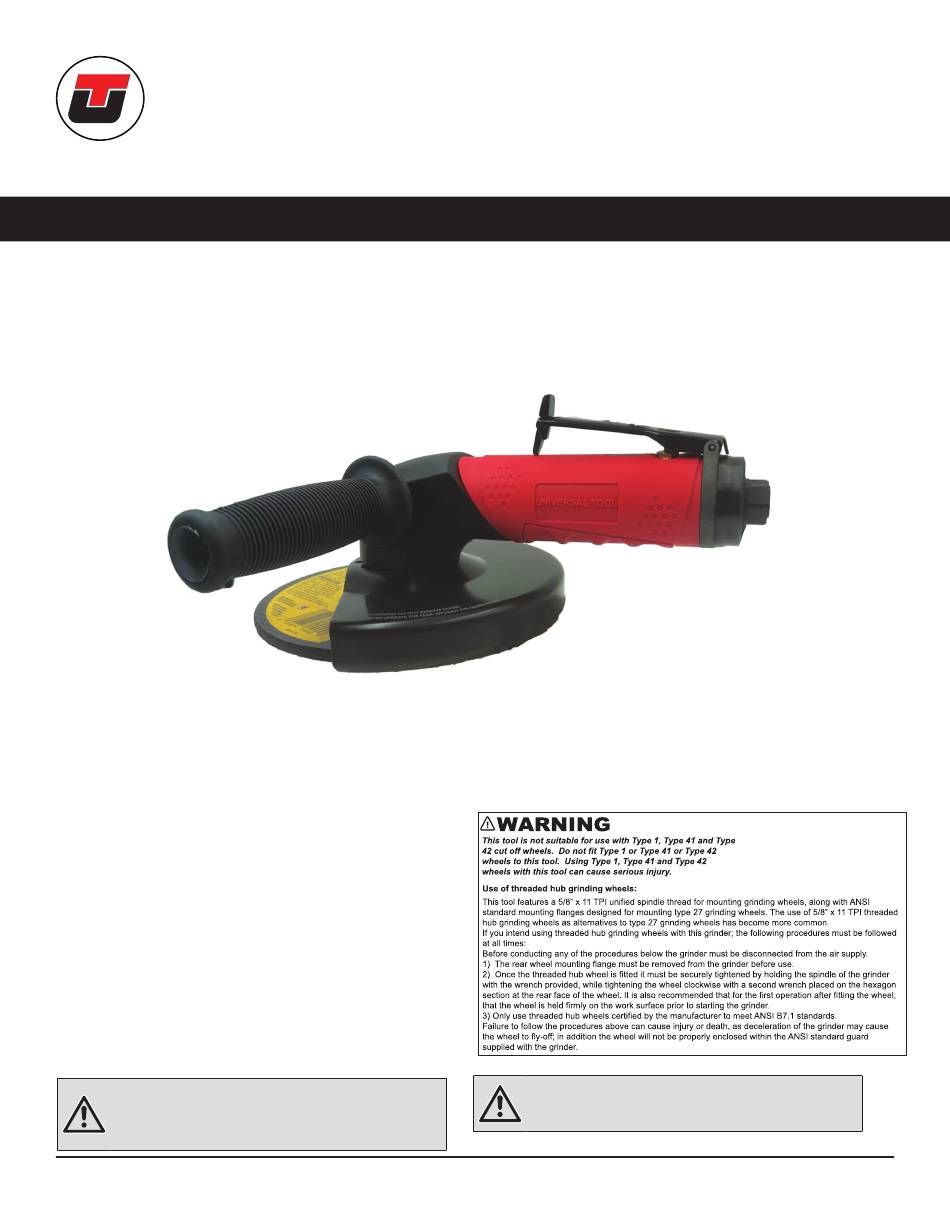

    UT8787-23 Universal Tool 2 .3 HP Angle Grinder ™ GRINDERS & CUT-OFF TOOLS General Safety Information & Replacement Parts TABLE OF CONTENTS General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Air Compressor and Air Tool Safety .
  • Page 2 • Never carry an air tool by the hose. implementation of appropriate controls is essential. • If the pneumatic tool is used in a dust filled environment exhaust air can cause a dust hazard Universal Tool a Division of Florida Pneumatic Manufacturing Corporation...

  • Page 3: Air Compressor And Air Tool Safety

    Air Cons Av. Air Cons (HP) (kW) Dia (in.) (RPM) Size (lb.) (Kg) (in) (mm) Pressure (NPT) (I.D. in.) (cfm) (cfm) 7” Type 27 3/8” UT8787-23 1.71 7600 Side 1.76 231.14 90 PSI 5/8”-11 UNIVERSALTOOLUSA.COM Please contact 1-800-356-3392 for further assistance.

  • Page 4: Installation

    Run the tool for approximately 30 seconds to ensure the oil is evenly distributed throughout the tool. Store the tool in a clean and dry environment. □ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation...

  • Page 5: Troubleshooting

    Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by someone other than Universal Tool or its authorized service centers.
  • Page 6 Service Parts / Exploded View Drawing * Spindle Lock Assembly shown as outlined ** Regulator Valve Assembly shown as outlined Universal Tool a Division of Florida Pneumatic Manufacturing Corporation...
  • Page 7 Service Parts / Exploded View Drawing Ref No. Part Number Description Qty. Ref No. Part Number Description Qty. 92-005470301 Air lnlet 92-030470302 Trigger 92-916019515 O-Ring 92-049470304 Screw 92-004470301 Exhaust Deflector 92-916009819 O-Ring 92-007470303 Spring 92-010470301 Pin Valve Rod 92-018470305 Bushing 92-916002515 O-Ring 92-016470304...
  • Page 8 Unit 7 Millfield Business Park, Banbury Lane, Pattishall Towcester, Northamptonshire, NN12 8FB, UK 1660 Silver Beach Road Suite 100 Lake Park, FL 33403 sales@ut-tools.com www.ut-tools.com www.universaltoolusa.com Retain this manual for future use. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation...
