Universal Tool
™
General Safety Information & Replacement Parts
TABLE OF CONTENTS
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.

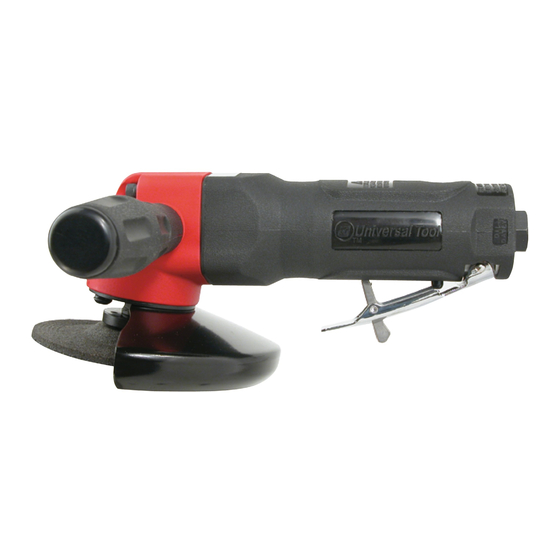

4-1/2 in. Angle Grinder
GRINDERS & CUT-OFF TOOLS
: This product contains lead, a chemical known to
WARNING
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
: This product contains chemicals known to
WARNING
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
Please contact 1-800-356-3392 for further assistance.
UT8780-1
FLORIDA-PNEUMATIC.COM
Advertisement
Table of Contents
Related Manuals for Universal Tool UT8780-1
Summary of Contents for Universal Tool UT8780-1
-
Page 1: Table Of Contents
UT8780-1 Universal Tool 4-1/2 in. Angle Grinder ™ GRINDERS & CUT-OFF TOOLS General Safety Information & Replacement Parts TABLE OF CONTENTS General Safety Information ......2 Air Compressor and Air Tool Safety . -
Page 2: General Safety Information
• Make sure there are no electrical cables, gas pipes etc. that could • Whenever universal twist couplings (claw couplings) are used, lock cause a hazard if damaged by use of the tool. pins must be installed. • Do not exceed the maximum air pressure stated on the tool. 7.2.2.10 DUST AND FUME HAZARDS • Use whip check safety cables to safeguard against possible hose to • Dust from some work processes can cause cancer, birth defects or tool and hose to hose connection failure. other respiratory diseases. Risk assessment of these hazards and • Never carry an air tool by the hose. implementation of appropriate controls is essential. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458... -
Page 3: Air Compressor And Air Tool Safety
(kW) Dia. (in.) (RPM) Exhaust Size (lb.) (Kg) (in.) (mm) Pressure (NPT) (I.D. in.) (cfm) (cfm) UT8780-1 0.66 5” Type 27 11,000 Side 5/8” - 11 3..1 8.00 90 psi-6.2 bar 1/4” 3/8” FLORIDA-PNEUMATIC.COM Please contact 1-800-356-3392 for further assistance. -
Page 4: Installation
□ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458... -
Page 5: Operation
Operation Operating the angle grinder Installing the grinding wheel □ This Angle Grinder is designed to operate on 90 PSIG. WARNING: Disconnect the tool from the air supply before Lower pressure (below 90 PSIG) will reduce performance servicing or changing accessories. of the tool. -
Page 6: Troubleshooting
Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by someone other than Universal Tool or its authorized service centers. -
Page 7: Service Parts
Service Parts / Exploded View Drawing Part Number Description Part Number Description Qty. 980401 HOUSING 980425 SCREW 980402 PROTECTING RUBBER 980426 SPRING WASHER 980403 AIR INLET 980427 SCREW 980404 SCREW 980428 SPACER 980405 O-RING 980429 RETAINING RING 980406 SPRING *980519 BEVEL GEAR SET 980407 VALVE STEM BUSHING... - Page 8 Universal Tool ™ Questions, problems, missing parts? Call Customer Service 8 a.m.-5 p.m., EST, Monday-Friday 1-800-356-3392 FLORIDA-PNEUMATIC.COM Retain this manual for future use. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
