TABLE OF CONTENTS
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety . . . . . . . . . . . . . . . . . . . 2-3
Tool Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.

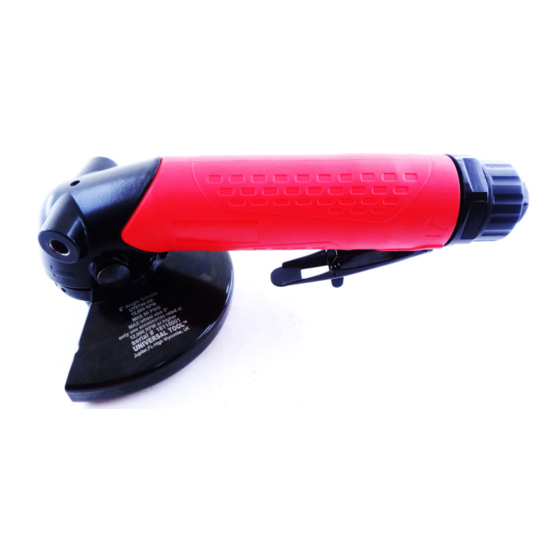

2 .4 HP ANGLE GRINDER
GRINDERS & CUT-OFF TOOLS
WARNING: DO NOT REMOVE GUARD. NEVER OPERATE
THE TOOL WITHOUT THE GUARD FITTED.
Please contact 1-800-356-3392 for further assistance.
UT8784-5/M
FLORIDA-PNEUMATIC.COM
Advertisement
Table of Contents
Related Manuals for Universal Tool UT8784-5M
Summary of Contents for Universal Tool UT8784-5M
- Page 1 UT8784-5/M Universal Tool 2 .4 HP ANGLE GRINDER ™ GRINDERS & CUT-OFF TOOLS General Safety Information & Replacement Parts TABLE OF CONTENTS General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 WARNING: DO NOT REMOVE GUARD.
- Page 2 Risk assessment of these hazards and • Never carry an air tool by the hose. implementation of appropriate controls is essential. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 3 Safety Information (continued) AIR COMPRESSOR AND AIR TOOL SAFETY WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains 1. Risk of Bursting. Do not adjust the regulator to result in output chemicals known to cause cancer, birth defects or other pressure greater than the marked maximum pressure of this air reproductive harm.
- Page 4 □ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents, and an EP (extreme pressure) additive. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 5 Warranty Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of purchase. This warranty does not apply to tools which have been abused, misused, modified or repaired by someone other than Universal Tool or its authorized service centers.
- Page 6 Service Parts / Exploded View Drawing Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
- Page 7 Service Parts / Exploded View Drawing Part Number Description Part Number Description Qty . 9ST91501 AIR INLET (NPT) 9ST91525 ROTOR BLADE 9ST91501-2 AIR INLET (BSP) 9ST91526 ROTOR 9ST91503 EXHAUST SLEEVE 9ST25125 BEARING SPACER 9ST91504 CONE MUFFLER 9ST91527 FRONT PLATE 990443 O-RING 924531A BEARING...
- Page 8 Universal Tool ™ Questions, problems, missing parts? Call Customer Service 8 a.m.-5 p.m., EST, Monday-Friday 1-800-356-3392 FLORIDA-PNEUMATIC .COM Retain this manual for future use. Universal Tool a Division of Florida Pneumatic Manufacturing Corporation 851 Jupiter Park Lane, Jupiter FL 33458...
