LG LRTN09314SW Service Manual
Hide thumbs
Also See for LRTN09314SW:
- Installation instructions manual (22 pages) ,
- Service manual (43 pages) ,
- Specifications (2 pages)
Related Manuals for LG LRTN09314SW
Summary of Contents for LG LRTN09314SW

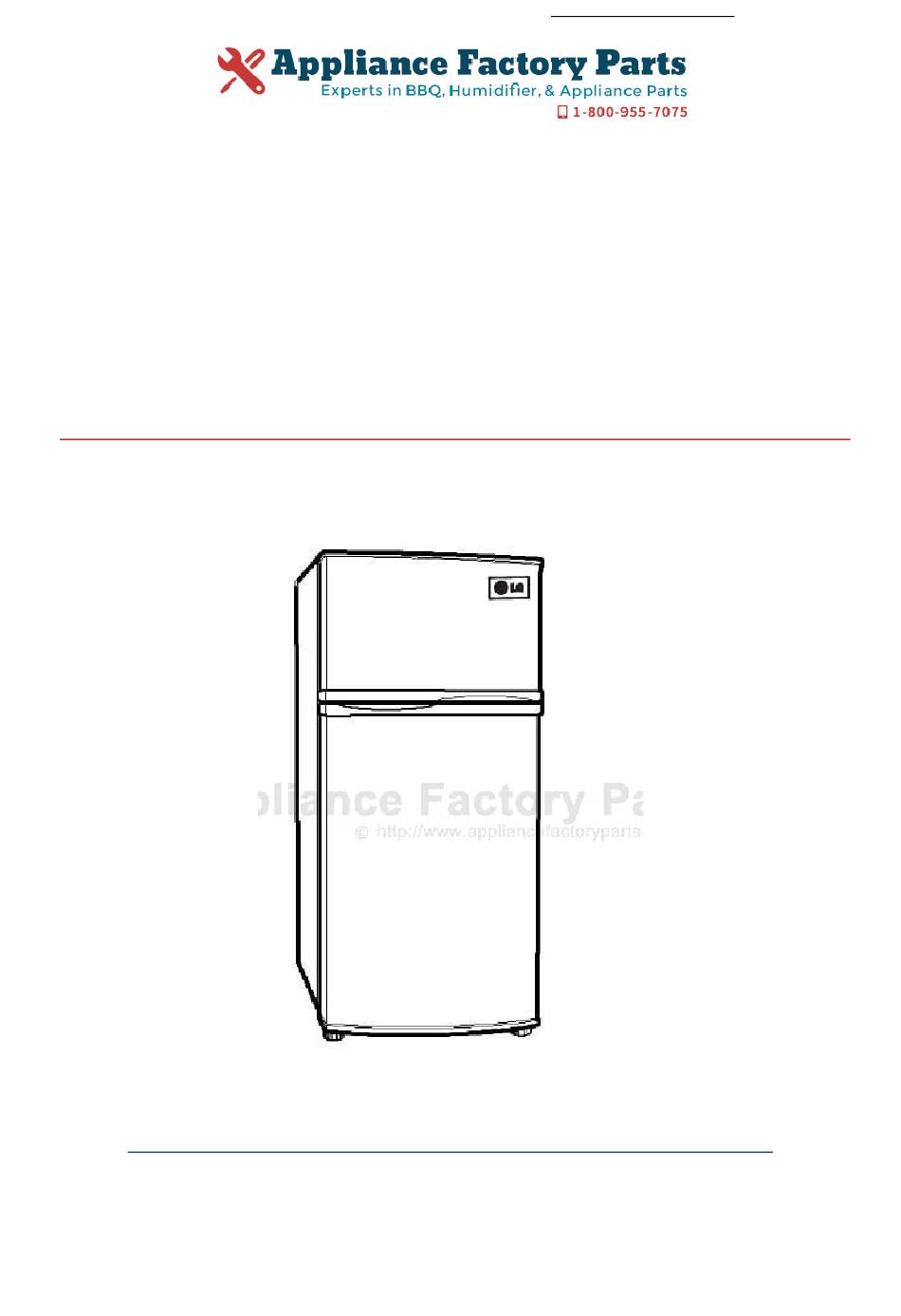

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. LG LRTN09314SW Owner's Manual Shop genuine replacement parts for LG LRTN09314SW Find Your LG Refrigerator Parts - Select From 834 Models -------- Manual continues below --------...
- Page 40 #EV# 11. EXPLODED VIEW 9 pies 103B 301A 281A 281B 103A 303B 303B 401A 418A 501F 411A 501A 282B 410G 406B 120G 120A 501K 110A 105A 120B 318A 317A 314A 310A 158C 120E 283B 309A 308A 323B 106B 307A 312A 104A 319A 409B...
- Page 41 #EV# 9 Pies 405C 405A 332A 330B 200A 404A 203A 201A 212G 900D 210A 125A 205A 131A 149A 205A 230A 241A 149B 233A 231A 140A 281H 241A 149C 241C 149C 154A 241C 243A 151A - 40 -...
- Page 42 #EV# LRTN09314SW LOC NO PART NO DESCRIPTION LOC NO PART NO DESCRIPTION 103A 3650JJ2003E Handle,Rear 301A ADL30264203 Evaporator Assembly 103B 3650JJ2003A Handle,Rear 303B 4827JJ3001B Insulation Assembly 104A 4779JA2011A Leg Assembly,Adjust 307A 2521CR0363C Compressor,Assembly 105A 5250JA2009A Tube,Drain 308A EBG32606502 Thermistor Assembly,PTC...
- Page 43 P/No. 3828JD8331B Rev.1 Julio, 2008...
