Summary of Contents for LIVINOX LCH-800I-90SS

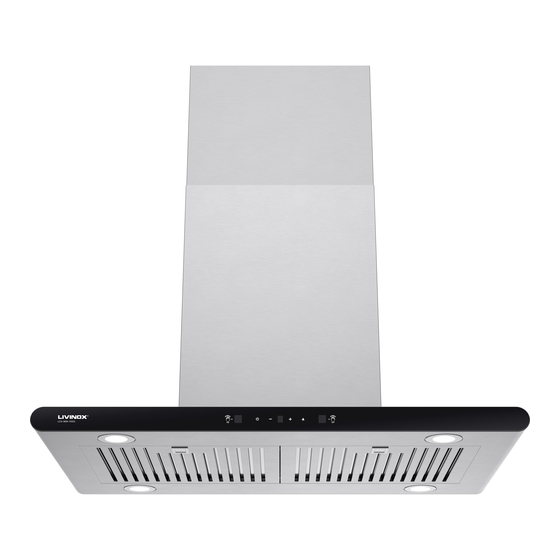

- Page 1 User Manual LCH-800I-90SS...
-
Page 2: From The Manufacturer
From the Manufacturer Please read this user manual carefully before attempting to operate the appliance and keep it in a safe place for future reference. This appliance and its packaging are produced by processes that minimize waste and respect the environment. Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. -
Page 3: Cleaning, Maintenance & Service
Cleaning, Maintenance & Service It is very important to clean and maintain the grease filters regularly (at least once monthly) to improve its efficiency in eliminating heat and contaminated air in the kitchen. Heavy oil deposits is a fire hazard. Hood surface should be cleaned with soft cloth and non-corrosive detergent. -
Page 4: Dimension Diagrams
3. Dimension Diagrams 1)Island hood LCH-800I-90SS 4. Instructions for use A. Touch Control (LCH-800I-90SS) LED screen ithin 10-15cm distance from the switch, wave once from left to right to turn on power (LED Wave A, W screen shows ”1”). Wave to the right, the fan runs at mid speed (LED screen shows “2”). Wave to the right again, the fan runs at high speed (LED Screen shows “3”). -
Page 5: Cleaning And Maintenance
Press E, turn on the light. Press again, turn off the light. Wave F, Within 10-15cm distance from the switch, wave once from right to left to turn off power. CLEANING MODE In non-working state, press E for 3 seconds, oil removing function will operate for 10 minutes. - Page 6 5. Installation Use suitable bolts to mount the appliance on a secure surface. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least 65 cm.
- Page 7 LCH-800I-90SS) CEILING MOUNTING INSTALLATION( 1) Position the hanging plate on the ceiling and then mark the position of the screw holes. The hanging plate should be securely fixed to the ceiling, ⚫ 11 x ST6 (40 mm)screws for wooden ceiling ⚫...
- Page 8 5) If the glass canopy has not been pre-assembled by the factory, then it should be fixed to the top of the main body of the cooker hood at this stage. 6) Lift the main body of the cooker hood onto the angle bar and then fix it into position using the 16 x M5 screws.
- Page 9 Installation (Vent inside) If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”. Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first.
-
Page 11: For The Installer
FOR THE INSTALLER 6. Safety Information 1. Electrical connection must be in accordance with the local standards and laws. 2. To ensure that the electrical supply in compliance with the appliance setting, otherwise, do not connect. 3. To ensure the power supply cord is free from any heat source or sharp objects. 4. -
Page 12: Troubleshooting
7. Trouble shooting Problems Possible Cause Action Check that the main switch is turned Not function No power supply Check that the plug is connected Aluminum grease filters clogged Clean the filters and replace when dry Poor airflow Charcoal grease filters clogged Replace charcoal filters with new sets Motor running but no Butterfly valve jammed Contact technician...
