Summary of Contents for LIVINOX LCH-OCEAN-90BL

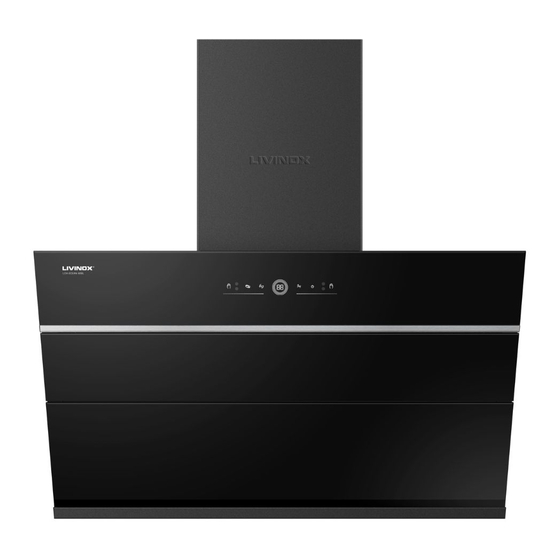

- Page 1 User Manual LCH-OCEAN-90BL...
- Page 2 From the Manufacturer Please read this user manual carefully before attempting to operate the appliance and keep it in a safe place for future reference. This appliance and its packaging are produced by processes that minimize waste and respect the environment. Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner.
- Page 3 Cleaning, Maintenance & Service It is very important to clean and maintain the grease filters regularly (at least once monthly) to improve its efficiency in eliminating heat and contaminated air in the kitchen. Heavy oil deposits is a fire hazard. Hood surface should be cleaned with soft cloth and non-corrosive detergent.
- Page 4 3. Dimension Diagrams LCH-OCEAN-90BL...
- Page 5 K. Touch control ( LCH-OCEAN-90BL) LED screen Wave A, Within 10-15cm distance from the switch, wave once from left to right, power and lighting will turn on (LED screen shows “11”), Wave to the right once, the fan runs at mid speed (LED screen shows “22”). Wave to the right again, the fan runs at high speed (LED Screen shows “33”) “Repeat this cycle".
- Page 6 5. Installation Use suitable bolts to mount the appliance on a secure surface. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. When the range hood is located above a gas appliance, this distance shall be at least 65 cm.
- Page 7 FOR THE INSTALLER 6. Safety Information 1. Electrical connection must be in accordance with the local standards and laws. 2. To ensure that the electrical supply in compliance with the appliance setting, otherwise, do not connect. 3. To ensure the power supply cord is free from any heat source or sharp objects. 4.
- Page 8 Problems Possible Cause Action Check that the main switch is turned No go No power supply Check that the plug is connected Aluminum grease filters clogged Clean the filters and replace when dry Poor airflow Charcoal grease filters clogged Replace charcoal filters with new sets Motor running but no Butterfly valve jammed Contact technician...
