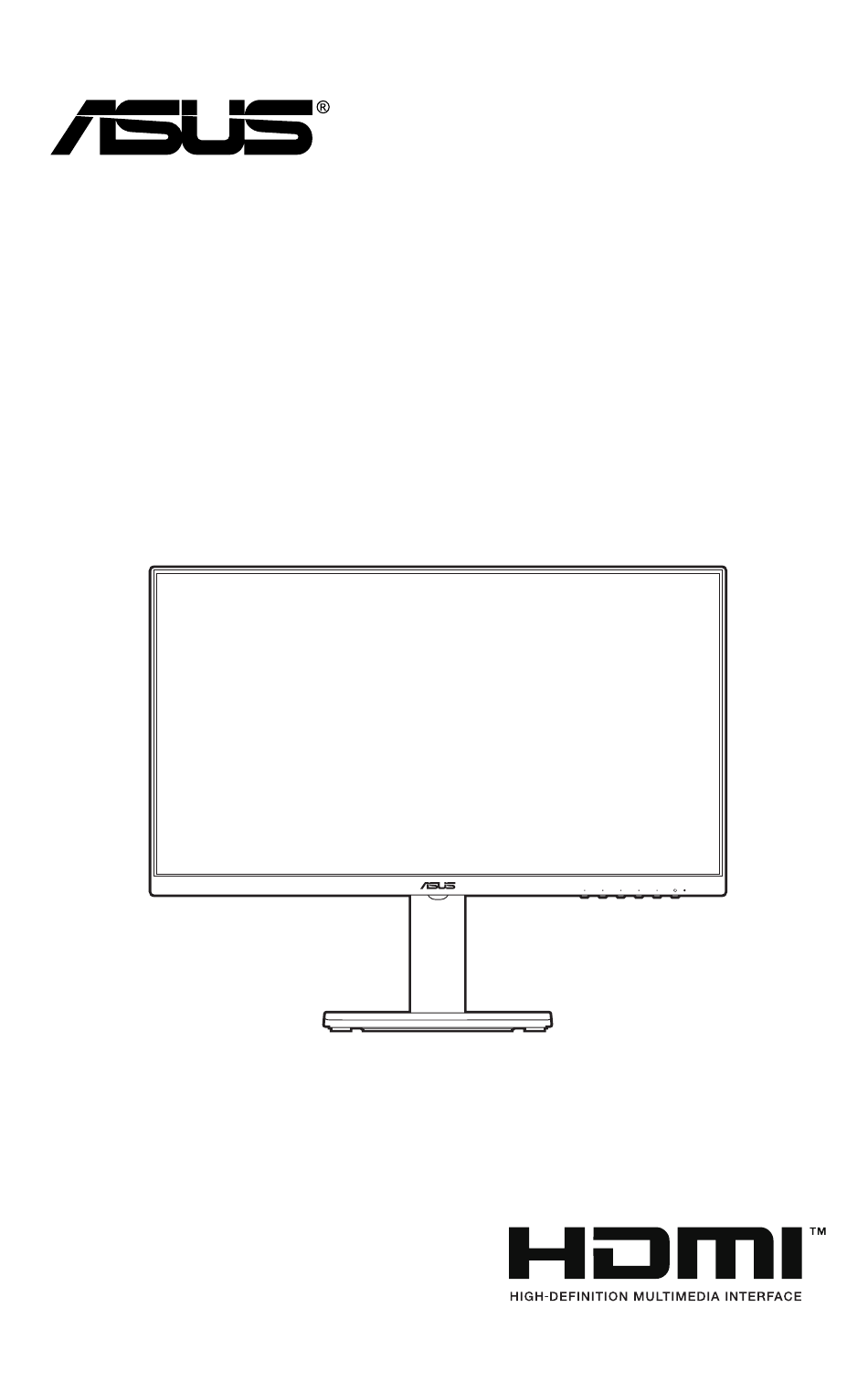

VA24DQFS/VA27DQFS
LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA24DQFS and is the answer not in the manual?

Questions and answers

Related Manuals for Asus VA24DQFS

Summary of Contents for Asus VA24DQFS

  • Page 1 VA24DQFS/VA27DQFS LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Contents Contents ...................... iii Notices ......................iv Safety information ..................vi Care & Cleaning ..................vii Takeback Services ..................viii Product information for EU energy label ..........viii Chapter 1: Product introduction Welcome! ..................1-1 Package contents ................. 1-1 Monitor introduction ..............1-2 1.3.1 Front view ...............

  • Page 4: Notices

    All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity.
  • Page 5 NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating system. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

  • Page 6: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 7: Care & Cleaning

    This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Please check local regulations for disposal of electronic products. AEEE yönetmeliğine uygundur Care & Cleaning •...

  • Page 8: Takeback Services

    About Flicker https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
  • Page 9 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 11: Welcome

    Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 12: Monitor Introduction

    Monitor introduction 1.3.1 Front view Menu Close Input Select Brightness Energy Saving Power button/power indicator • Turns the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White Amber Standby mode Menu button: •...

  • Page 13: Back View

    To change the hotkey function, go to the Shortcut > Shortcut 2 menu. Phone holder • VA24DQFS: The size of the phone holder is 14.3 x 212.0 mm. Make sure your device fits into the groove. • VA27DQFS: The size of the phone holder is 14.3 x 227.9 mm.
  • Page 14 HDMI port. This port is for connection with an HDMI compatible device. D-SUB port. This 15-pin port is for PC VGA connection. VGA port. This 15-pin port is for PC VGA connection. USB 3.2 Gen 1 Type-B. This port is for connection with a USB upstream cable.

  • Page 15: Assembling The Monitor Arm/Base

    Fix the base to the arm by fastening the bundled screw(s). We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. (For selected models) Hinge screw size: M4 x 8 mm. ASUS VA24DQFS / VA27DQFS LCD Monitor...

  • Page 16: Detaching The Arm/Base (For Vesa Wall Mount)

    Detaching the arm/base (for VESA wall mount) The detachable arm/base of this monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Use a screwdriver to remove the screw(s) on the hinge, then remove the hinge.

  • Page 17: Adjusting The Monitor

    Hold the stand to prevent the monitor from falling when you change its angle. • The recommended adjusting angle is +35˚ to -5˚ (for tilt)/+45˚ to -45˚ (for swiveling/VA24DQFS: 130 mm (for height adjustment)/VA27DQFS: 150 mm (for height adjustment)/+/-90˚ (for portrait view). (Swivel)

  • Page 18: Connecting The Cables

    When these cables are connected, you can choose the desired signal from the Input Select item in the OSD menu. If you need to replace the power cord or the connection cable(s), please contact ASUS customer service. • To use the USB 3.2 Gen 1 ports: »...

  • Page 19: Turning On The Monitor

    USB Type A jack. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS VA24DQFS / VA27DQFS LCD Monitor...
  • Page 20 Chapter 2: Setup...

  • Page 21: Osd (On-Screen Display) Menu

    Press to change the settings of the selected function. To exit and save the OSD menu, press repeatedly until the OSD menu disappears. To adjust other functions, repeat steps 1-4. ASUS VA24DQFS / VA27DQFS LCD Monitor...

  • Page 22: Osd Function Introduction

    This function contains 8 sub-functions you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VA24DQFS Splendid Theater Mode DisplayPort 1920 x 1080 @ 60Hz...
  • Page 23 30-minute working time and there will be a pop up reminder appeared on the upper left corner of the monitor for 5 seconds when time is up. Press any key to make this reminder OSD disappear. ASUS VA24DQFS / VA27DQFS LCD Monitor...
  • Page 24 This function is not available when sRGB Mode is selected in the Splendid menu. Color Set a desired color setting from this menu. ASUS VA24DQFS Color Theater Mode DisplayPort 1920 x 1080 @ 60Hz Bri g h tn e ss...
  • Page 25 • Aspect Control: Adjusts the aspect ratio to Full or 1:1 Ratio. • ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. • Motion Sync: Offers a more clear mode while displaying motion pictures. Please note this function only works when the refresh rate is 100Hz. It includes two modes: Normal Mode and Advanced Mode, which can provide different effects.
  • Page 26 GPU manufactures. Input Select In this function, you can select your desired input source or decide if you want the monitor to automatically search for input sources. ASUS VA24DQFS Input Select Theater Mode DisplayPort 1920 x 1080 @ 60Hz VG A...
  • Page 27 Alignment Grid 1 Alignment Grid 2 Alignment Grid 1 Alignment Grid 2 Paper size: You can view the documents in real size on the screen. Letter Letter A4 (VA27DQFS only) ASUS VA24DQFS / VA27DQFS LCD Monitor...
  • Page 28 Ukrainian, Vietnamese. • DisplayWidget Center: Displays a QR code for you to access the information about ASUS DisplayWidget Center. • Key Lock: To disable all function keys. Press the second button from the right over five seconds to cancel the key lock function.
  • Page 29 When a certain function is selected or activated, your shortcut key may not support. Available function choices for shortcut: Blue Light Filter, Splendid, Brightness, Contrast, Color Temp., Volume, QuickFit, GamePlus, Rest Reminder, Color Augmentation, Energy Saving. ASUS VA24DQFS / VA27DQFS LCD Monitor...

  • Page 30: Specifications Summary

    3.2 Specifications summary Panel Type TFT LCD Panel size VA24DQFS: 23.8” (16:9, 60.45 cm) wide screen VA27DQFS: 27” (16:9, 68.5 cm) wide screen Max. Resolution 1920 x 1080 Pixel pitch VA24DQFS: 0.2745 mm VA27DQFS: 0.311 mm Brightness (Typ.) 300 cd/m Contrast Ratio (Typ.) 1000:1 Contrast Ratio (Max.)
  • Page 31 TCO 9.0, RoHs, CEC, TÜV Flicker free, TÜV Low Blue Light, SIOC, Windows 10 & 11 WHQL *Specifications are subject to change without notice. **Measuring a screen brightness of 300 nits without audio/USB/Card reader connection. ASUS VA24DQFS / VA27DQFS LCD Monitor 3-11...

  • Page 32: Outline Dimensions

    Outline dimensions VA24DQFS 3-12 Chapter 3: OSD (On-Screen Display) menu...
  • Page 33 VA27DQFS ASUS VA24DQFS / VA27DQFS LCD Monitor 3-13...

  • Page 34: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. •...

  • Page 35: Supported Operating Modes

    31.47KHz 720 x 576p (4:3) 50Hz 31.25KHz 720 x 576p (16:9) 50Hz 31.25KHz 1280 x 720p 50Hz 37.5KHz 1280 x 720p 59.94Hz/60Hz 45KHz 1920 x 1080p 50Hz 56.25KHz 1920 x 1080p 59.94Hz/60Hz 67.5KHz ASUS VA24DQFS / VA27DQFS LCD Monitor 3-15...
