JIMCO OZ 1000 User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

OZ
1000T
MADE IN DENMARK
USER GUIDE
JIMCO.DK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OZ 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for JIMCO OZ 1000

Summary of Contents for JIMCO OZ 1000

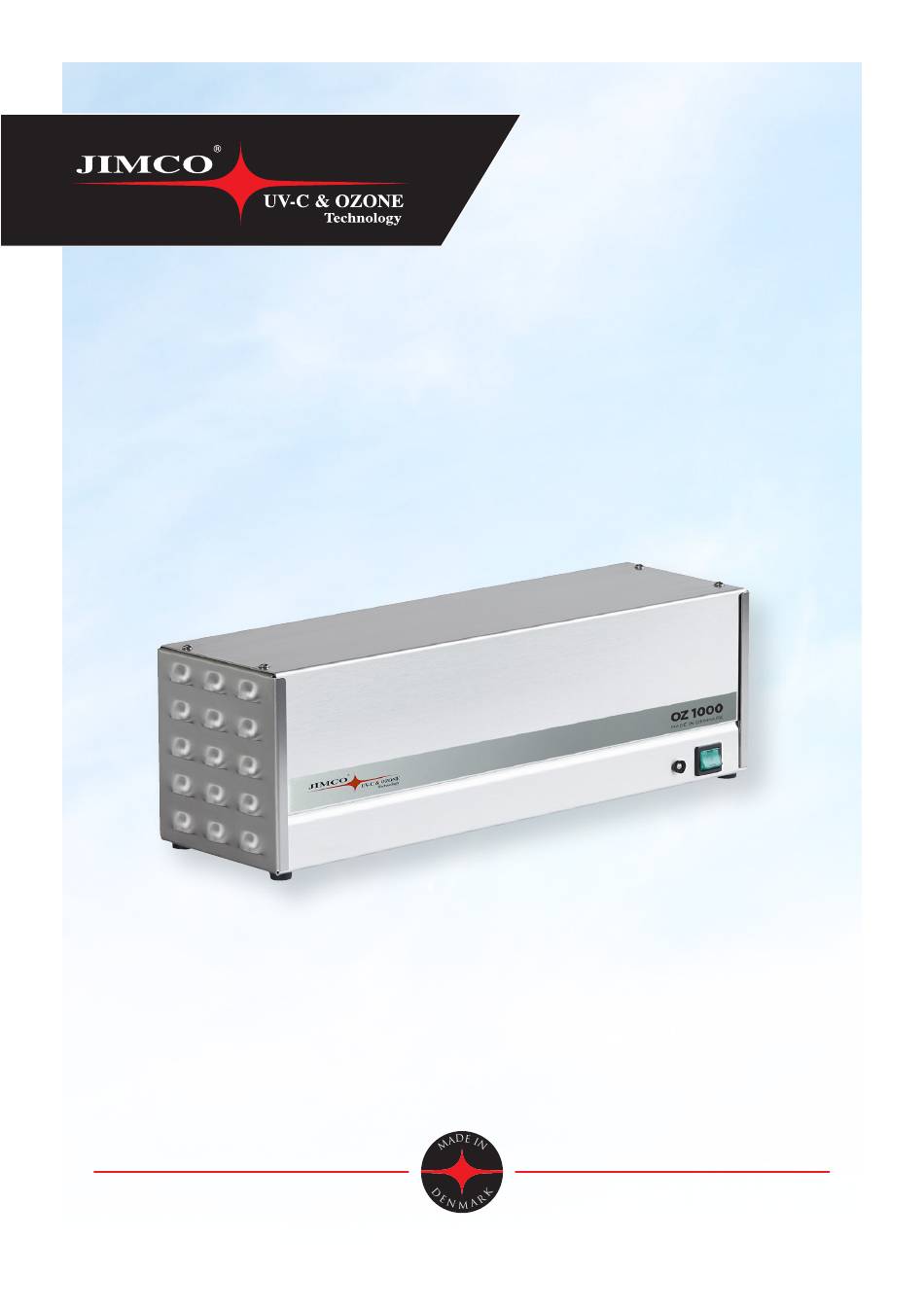

  • Page 1 1000T MADE IN DENMARK USER GUIDE JIMCO.DK...
  • Page 2 Enclosure Enclosure access screws Lamp socket Power indicator Cable access Lamp clips On/Off switch JIMCO- UV lamp Technical Data OZ1000 UV lamp: 1x16 w Power consumption: 30 w Length 430 mm Operating hours: 8000 Room area: 125 m3 Height: 140 mm...
  • Page 3 OPERATING INSTRUCTIONS • Read the user instructions carefully before using the unit. • Keep the user instructions for future reference. • Connect the instrument to a suitable plug socket • Place the instrument on a solid surface, or: • Mount on the wall or on the ceiling using the locating holes on the bottom of the unit •...

  • Page 4: Power Connection

    The OZ1000 uses UV-C and Ozone technology to sterilise and de-odorise the air within the area it is being used. The special Jimco lamp/s produces UV light at a certain wavelength that has a sterilising effect whilst also creating a small amount of Ozone that will eliminate odour from the air and on the surfaces within the room.

  • Page 5: Treatment Time

    On the OZ1000, JIMCO A/S provides 24-month warranty. Guarantee periods is 12 months. The warranty is calculated from the date of sale from your JIMCO dealer. To provide this, a receipt must be kept. Within the stated warranty period, JIMCO A/S will cover, without charge, every defect that are subject to material or manufacturing defects and, at your option, provideswarranty repair or replacement of the OZ1000.

  • Page 6: Replacing The Lamp

    REPLACING THE LAMP Red Lamp indicator is flashing Unplug the device Carefully remove the lamp (5) from the lamp Remove the 4 screws (3) from the cover (4) holders (6>7). Remove the lamp (5) Plug in the power cable and turn on from the lamp socket (8) the device on the on/off switch (9)
  • Page 7 REPLACING THE LAMP Push the reset button (10) Unplug the device again Make sure the Lamp indicator (1) turns off Attach the new lamp (11) Mount the lamp in the lamp holders (7>6) to the lamp socket (8) Mount the cover(4) with the 4 screws (3)
  • Page 8 CONTACT JIMCO NOR AS - INFO@JIMCO.NO - TLF. 22 76 34 65...
