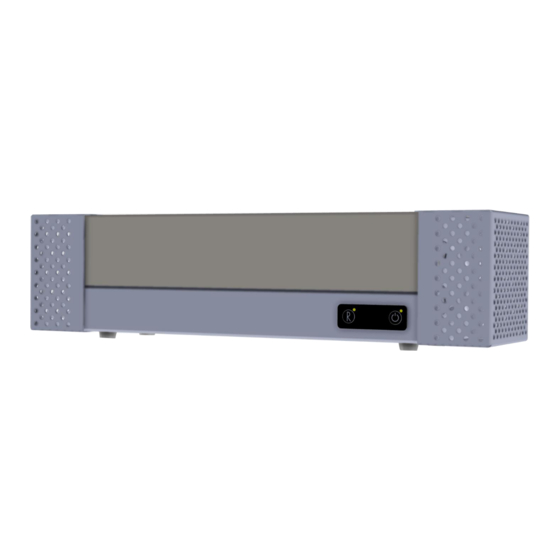

- Page 1 User Guide MAC500s Multi Air Cleaner UV-C & Ozone Technology CVR/VAT No. DK 2500 0374 JIMCO A/S ∙ Mjølbyvej 7 ∙ DK-5900 Rudkøbing ∙ Phone: +45 6251 5456 ∙ E-mail: jimco@jimco.dk ∙ www.jimco.dk...
-
Page 2: Important Safety Instructions
MAC500s produces UV-C light under controlled conditions. Different UV-C wavelengths have different properties. The MAC500s uses two wavelengths. One is a powerful sterilizer when it is in direct contact with pathogens and the other wavelength uses the available oxygen (O... - Page 3 Intended use The MAC500s is intended to be used 24 hours a day. The recommended room size is 60 m3 (24 m2 with a ceiling height of 2,5 m). The unit should not be operated while situated on the floor but should be placed as high as possible for maximum efficiency.
- Page 4 On the MAC500s, JIMCO A/S provides 24-month warranty. Guarantee periods is 12 months. The warranty is calculated from the date of sale from your JIMCO dealer. To provide this, a receipt must be kept. Within the stated warranty period, JIMCO A/S will cover, without charge, every defect that are subject to material or manufacturing defects and, at your option, provides warranty repair or replacement of the MAC500s.
-
Page 5: Installation Instruction
• Find a suitable place for your MAC500s Note: We recommends to place the MAC500s at least 200 mm. away from any side obstacles on both sides of the MAC500s to ensure inlet and outlet air. Connect the instrument to a suitable plug socket Place the MAC500s on a solid surface e.g. - Page 6 Note 1: The harder you tighten the screws the harder will MAC500s be mounted on the DIN rail. Note 2: You can choose individually on which side you want the outlet air from the MAC500s, outlet air is on the...
- Page 7 2-3-4...
- Page 8 Note 4...
- Page 9 Note 4 CLICK! Note 5...
-
Page 11: Lamp Change
Lamp change: Step: 1 Step: 2 Disconnect the power to the MAC500s by unplugging (position 2) from the wall socket Remove the four screws (position 3) and remove the cover (position 4) Step: 3 Step: 4 Lift the lamp (position 5) out of lamp clip... -
Page 13: Lamp Switch
Contact Producer: JIMCO A/S - Denmark Mjølbyvej 7 – DK-5900 Rudkøbing +45 6251 5456 www.jimco.dk Lamp switch:... - Page 14 Always stay safe UV-C & Ozone Technology CVR/VAT No. DK 2500 0374 JIMCO A/S ∙ Mjølbyvej 7 ∙ DK-5900 Rudkøbing ∙ Phone: +45 6251 5456 ∙ E-mail: jimco@jimco.dk ∙ www.jimco.dk...
