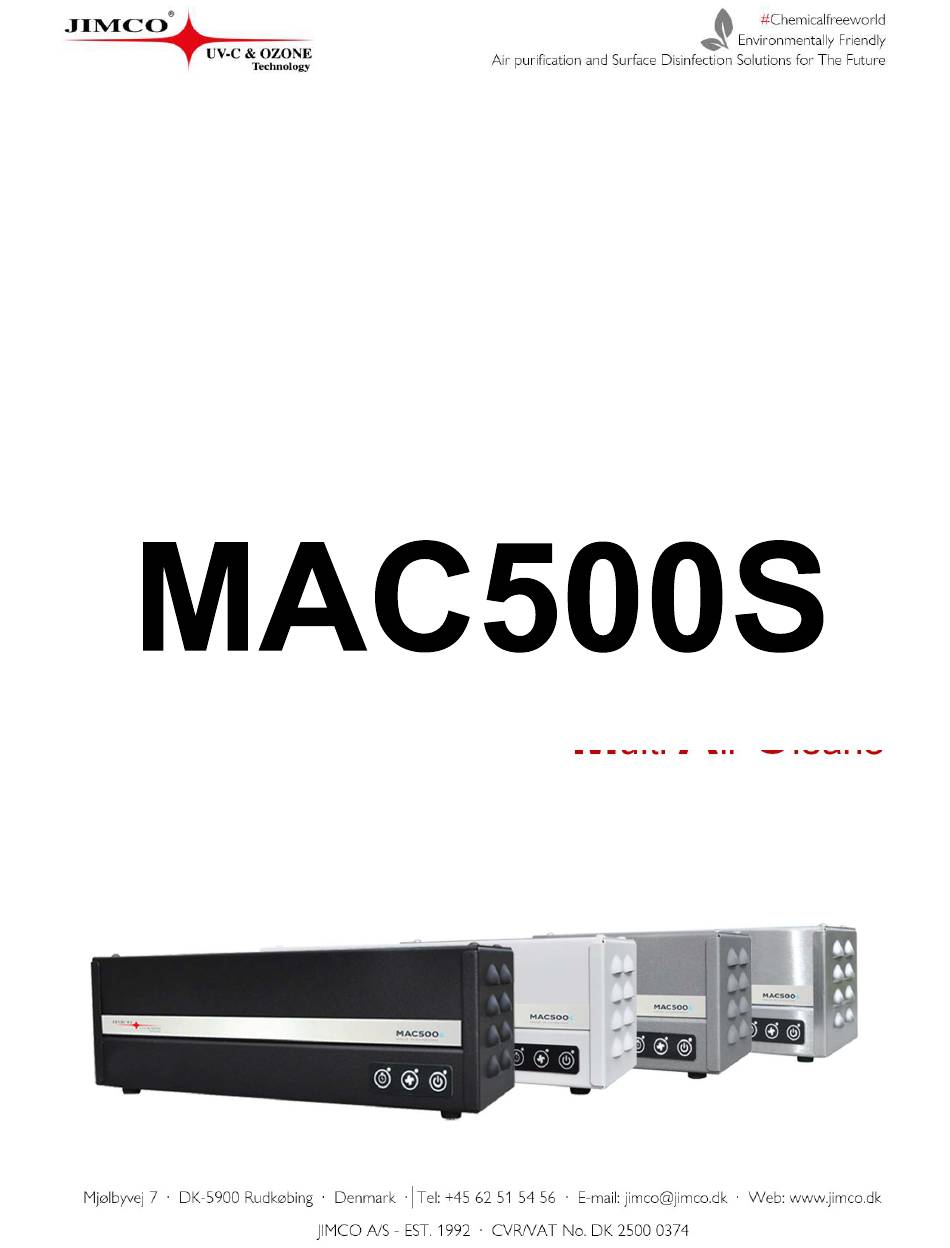

Page 1 User Guide ulti leaner...
Page 2 MAC500s produces UV-C light under controlled conditions. Different UV-C wavelength has different properties. The MAC500s uses two wavelengths. One is a powerful sterilizer when it is in direct contact with pathogens and the other wavelength uses the available oxygen (O...
Page 3: Maintenance
On the MAC500, JIMCO A/S provides 24-month warranty. Guarantee period is 12 months. The warranty is calculated from the date of sale from your JIMCO dealer. To provide this, a receipt must be kept. Within the stated warranty period, JIMCO A/S will cover, without charge, every defect that are subject to material or manufacturing defects and, at your option, provides warranty repair or replacement of the MAC 500.
Page 4: Technical Data
1x8 w Operating hours 8000 timer D: Power cable A: Cabinet Voltage 120V 50/60Hz Length 310 mm E: JIMCO-Special lamp B: Push buttons/control lights Power consumption 23 w Height 90 mm F: Lamp socket C: Enclosure access screws Room area...
Page 5 Lamp change Step: 1 Step: 2 Disconnect the power to the MAC500 by Remove the four screws (position 3) unplugging (position 2) from the wall and remove the cover (position 4) socket Step: 3 Step: 4 Lift the lamp (position 5) out of lamp Pull the lamp (position 5) out of the clip A (position 6) and lamp clip B socket (position 8)
Page 7: Lamp Replacement
Questions and Contact Producer: Jimco A/S +45 6251 5456 www.jimco.dk Lamp replacement:...
