Summary of Contents for Husqvarna VIKING RIBBON EMBROIDERY ATTACHMENT

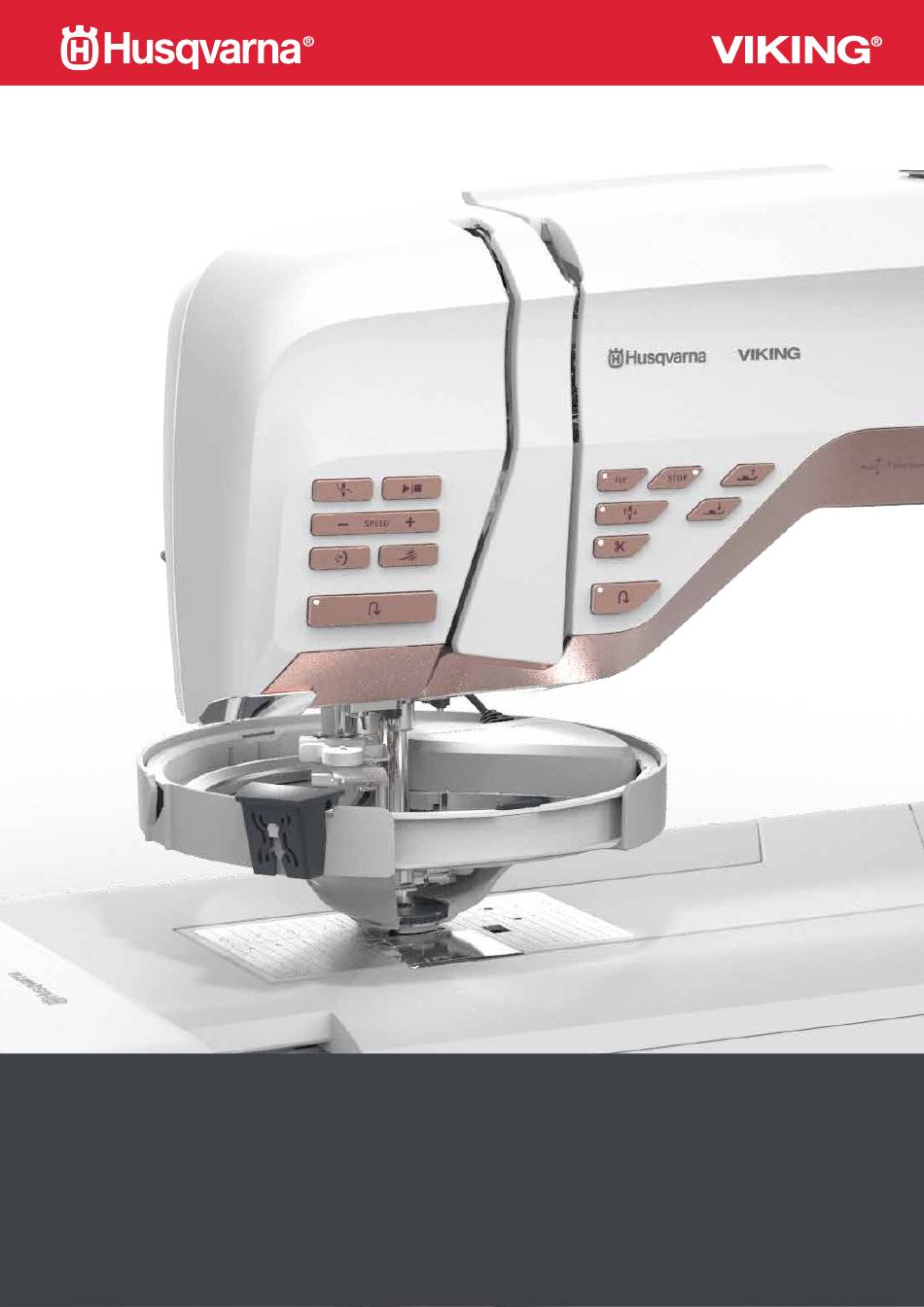

  • Page 1 RIBBON EMBRO IDE RY ATTACH ME NT...

  • Page 2: Important Safety Instructions

    This appliance is designed to comply with “IEC/EN 60335-1, 60335-2-28”, “CSA C22.2 No. 68” and UL1594. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety • Never operate the appliance with any air openings precautions should always be followed, including blocked.
  • Page 3 Ribbon Embroidery Attachment - Overview A. Ribbon ring E. Release lever Ribbon clip Ribbon ring holder C. Attachment holder G. Adjustable guide D. Connection plug H. Ribbon guides Introduction Ribbon Embroidery Attachment gives you the possibility to embroider beautiful three-dimensional ribbon designs.
  • Page 4 Prepare Winding Ribbon Secure the ribbon onto the ribbon ring by opening the clip, inserting the end of the ribbon and then close the clip again. Note: If your ribbon has a right and wrong side, wind the ribbon with the right side out. Wind your ribbon onto the ring, following the direction of the arrow markings (one turn is approx.
  • Page 5 Attach Fastening the Attachment Holder Using the universal tool, remove the presser foot ankle on the machine. Position the Ribbon Embroidery Attachment holder onto the presser foot bar from below. Insert and tighten the screw using the universal tool. Align Markings of the Embroidery Ribbon Attachment Before attaching the Ribbon Embroidery Attachment to the machine, make sure that the markings are correctly aligned.
  • Page 6 Tilting the Accessory Tilting the Ribbon Embroidery Attachment can be useful if you for example need to re-thread without having to remove it first. In the tilted position, the easiest way to re-thread is by using a tweezer. Press the release lever and slide the Ribbon Embroidery Attachment backwards halfway until the marking line up (I), and it’s possible to tilt.
  • Page 7 471063496B VIKING and DESIGNER EPIC are trademarks of KSIN Luxembourg II, S.a.r.l. HUSQVARNA and the ”H” Crown Device are trademarks of Husqvarna AB and are used under license. © 2019 KSIN Luxembourg II, S.a.r.l. All rights reserved.
