Kelvinator KCHRI27R1DRE-220 Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
USA & Canada, 866-339-8515
4003 Collins Lane, Louisville, KY 40245
www.kelvinatorcommercial.com
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the consignee
to inspect the container upon receipt of same and to determine the possibility
of any damage, including concealed damage. Electrolux Professional Group
suggests that if you are suspicious of damage to make a notation on the
delivery receipt. It will be the responsibility of the consignee to file a claim with
the carrier. We recommend that you do so at once.
Manufacture Service/Questions 866-339-8515.

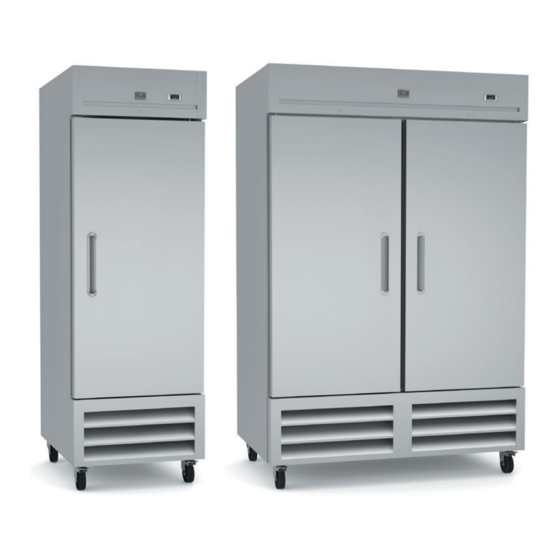

EQUIPMENT DESCRIPTION
SOLID DOOR REFRIGERATORS
REFRIGERANT
MODEL NO.
TYPE
KCHRI27R1DRE R290
KCHRI27R1DRE-220 R290
KCHRI54R2DRE R290
KCHRI54R2DRE-220 R290
KCHRI81R3DR R290
HALF-SOLID DOOR REFRIGERATORS
REFRIGERANT
MODEL NO.
TYPE
KCHRI27R2HDR R290
KCHRI54R4HDR R290
Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most updated product information and
specifications. © 2024 Electrolux Professional Group. All Rights Reserved.
REFRIGERANT
V/HZ/PH AMPS
WEIGHT, G
85 115/60/1 3
85 220/50/1 2
105 115/60/1 4.5
130 220/50/1 3
150 115/60/1 7.5
REFRIGERANT
V/HZ/PH AMPS
WEIGHT, G
85 115/60/1 3
105 115/60/1 4.5
This manual provides information for:
REACH-INS
REFRIGERATORS/FREEZERS
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Electrolux
Professional Group reserves the right to make changes in design and specifications
without prior notice. NOTICE: Please read the entire manual carefully before
installation. If certain recommended procedures are not followed, warranty claims
will be denied.
The serial number of all self-contained refrigerators and freezers is located inside
the unit on the left hand side near the top on the wall. Always have the serial
number of your unit available when calling for parts or service. This manual covers
standard units only.
CAPACITY
STORAGE (CU FT) SHELF (SQ FT)
18.1 11
18.1 11
41.6 24
41.6 24
66 37.14
CAPACITY
STORAGE (CU FT) SHELF (SQ FT)
18.1 11
41.6 24
PART NUMBER HB_738371_9F73837100, REV. A (03/23)
CHARGE SHIP WEIGHT
HP BTU
OZ LBS
1/5 1670 3 313
1/6 682 3 307
1/3 2380 3.7 489
1/4 955 4.58 490
3/4 3200 5.29 571
CHARGE SHIP WEIGHT
HP BTU
OZ LBS
1/5 1670 3 309
1/3 2380 3.7 492
REV. C (07/24)
NEMA
PLUG
5-15P
-
5-15P
-
5-15P
NEMA
PLUG
5-15P
5-15P
