Tahiti - II Flame Heater
ASSEMBLY INSTRUCTIONS
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE
FH1000 Series
HAZARDOUS FIRE OR EXPLOSION MAY
RESULT
IGNORED
It is the consumer's responsibility to see that
the patio heater is properly assembled,
installed, and taken care of. Failure to follow
instructions in this manual could result in
bodily injury and/or property damage.
• Leak test all connections after each bottle
refill
• Never check for leaks with a match or open
flame
• Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance
• Any LPG bottle not connected for use shall
not be stored in the vicinity of this or any
other appliance
IF YOU SMELL GAS:
• Turn off gas supply at bottle
• Extinguish all naked flames; do not operate
any electrical appliances
• Ventilate the area
• Check for leaks as detailed in this manual
• If odor persists, contact your dealer or gas
supplier immediately
FOR OUTDOOR USE ONLY
WARNING
IF
INSTRUCTIONS
PRECAUTIONS
FOR YOUR SAFETY
ARE
Advertisement
Table of Contents
Related Manuals for Lifestyle Tahiti II
Summary of Contents for Lifestyle Tahiti II
- Page 1 Tahiti - II Flame Heater FH1000 Series ASSEMBLY INSTRUCTIONS WARNING HAZARDOUS FIRE OR EXPLOSION MAY RESULT INSTRUCTIONS IGNORED It is the consumer's responsibility to see that the patio heater is properly assembled, installed, and taken care of. Failure to follow instructions in this manual could result in bodily injury and/or property damage.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Gas flame heater Model Number Item Name： FH1000 Series Heat Output 13.2 kW CE Certificate NO. ITS-2575-GAR-2129061 2575DM29061 Series NO. 202105 Country of destination category pressure CZ, DK, EE, FI, IS, NL, NO, SE, LT, LV, Butane: 30mbar I3B/P(30) SI, SK, CY, MT: BE, ES, FR, GB, GR, IE, LU, IT, PT,... -
Page 3: For Your Safety
The LP Gas Bottle Valve or the Regulator should be turned off when the heater is NOT in use. Do not use when it is raining, always be carefully not let any liquid splash to the glass tube when the heater is working. - Page 4 Combustible materials are considered to be wood, compressed paper, plant fibers, plastic, Plexiglas or other materials capable of being ignited and burned. Such materials shall be considered combustible even though flame proofed, fire-retardant treated or plastered. Additional clearance may be required for glass, painted surfaces and other materials which may be damaged by radiant or convection heat.
-
Page 5: Installation
INSTALLATION Important Safety Rules: This appliance is for OUTDOOR USE ONLY 1. This appliance shall not be installed or used indoors, in buildings, garages or any other enclosed area. 2. DO NOT place articles on or against this appliance. 3. DO NOT use or store flammable materials near this appliance. 4. -
Page 6: Parts List
PARTS LIST-1 Part NO. Part Name Picture Remarks Middle Plate Screwdriver Bottom Plate Lower Support Upper support Upper Plate Preassembled in Plate cover the Middle plate Glass tube GB 6... - Page 7 Part NO. Part Name Picture Remarks Preassembled in Damper upper plate Reflector Lower protection guard Match clip Upper protection guard Fixing bracket Side panel A chain is Door panel preassembled in this panel Screw M5x8 Knob Preassembled in Chain the door panel Wheel kit Optional part Bottle belt...
-
Page 8: Heater Assembly
HEATER ASSEMBLY Tools Required: 1 Phillips head screwdriver, 1 adjustable spanner Remove plate cover (7) with 4 screw(17) GB 8... - Page 9 GB 9...
- Page 10 If the wheel kit is supplied, fix it at the back of the base as shown. GB 10...
- Page 11 GB 11...
-
Page 12: Operation
OPERATION Preparation: You will need to purchase a propane gas bottle designed to be used with the regulator purchased or supplied. For correct operation of the gas system follow the instructions supplied with the regulator supplied or purchased. Connect the hose to the hose connector in the control box Warning: Always test the hose for leaks with soapy water at the end of all connections. -
Page 13: Lighting Instructions
LIGHTING INSTRUCTIONS Check and ensure that an AA battery is inside the ignition chamber and has power. Ensure the anode (+) faces outside. Electric igniter Lighting 1. Ensure that the control knob is in the OFF position. Slowly open the gas bottle valve or turn your regulator to the ON position 2. -
Page 14: Cleaning And Maintance
CLEANING AND MAINTANCE NOTE: IMPORTANT 1) ALL MODELS – UPPER AND LOWER PROTECTION GUARDS THE GUARDS ARE MANUFACTURED FROM STAINLESS STEEL BUT SHOULD BE CLEANED OR POLISHED ON A REGULAR BASIS (ONCE EVERY TWO MONTHS) TO AVOID DISCOLOURATION, WITH A QUALITY STAINLESS STEEL CLEANER. 2) MODELS WITH STAINLESS STEEL SIDE AND FRONT PANELS. - Page 15 CLEANING AND MAINTAINCE OF THE GLASS TUBE IMPORTANT MAKE SURE THE UNIT IS SWITCHED OFF AT THE GAS SUPPLY AND HAS NOT BEEN LIT FOR A MINIMUM OF 4 HOURS. PARTS REQUIRED BUCKET OF HOT SOAPY WATER SOLUTION BUCKET OF WARM WATER SOFT SPONGE BROOM OR BRUSH HANDLE CLEANING...
-
Page 16: Troubleshooting
• Any modifications or repairs to the patio heater must be carried out by a suitable qualified engineer Distributed by Lifestyle Appliances Limited Unit 66, Enfield Industrial Estate, Redditch, Worcestershire B97 6DE Tel: 01527 65126 Email: sales@lifestyleappliances.co.uk Due to production continuously developing, the product you bought might slightly differ from the one in this...
Need help?
Do you have a question about the Tahiti II and is the answer not in the manual?
Questions and answers

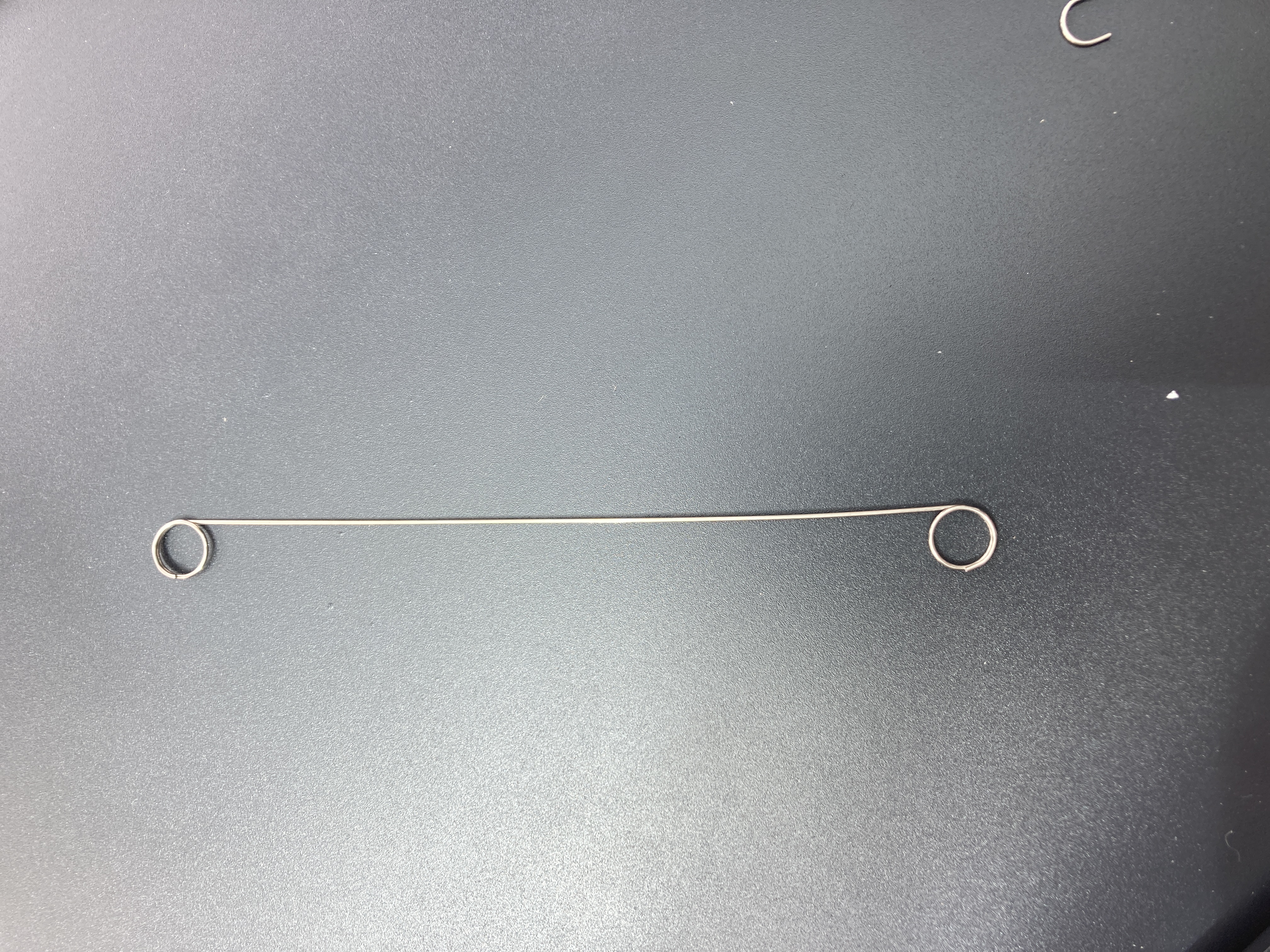

On Tahiti 11 the assembly instructions list item12 but does not show where or how it is installed. Please advise Regards Mike
