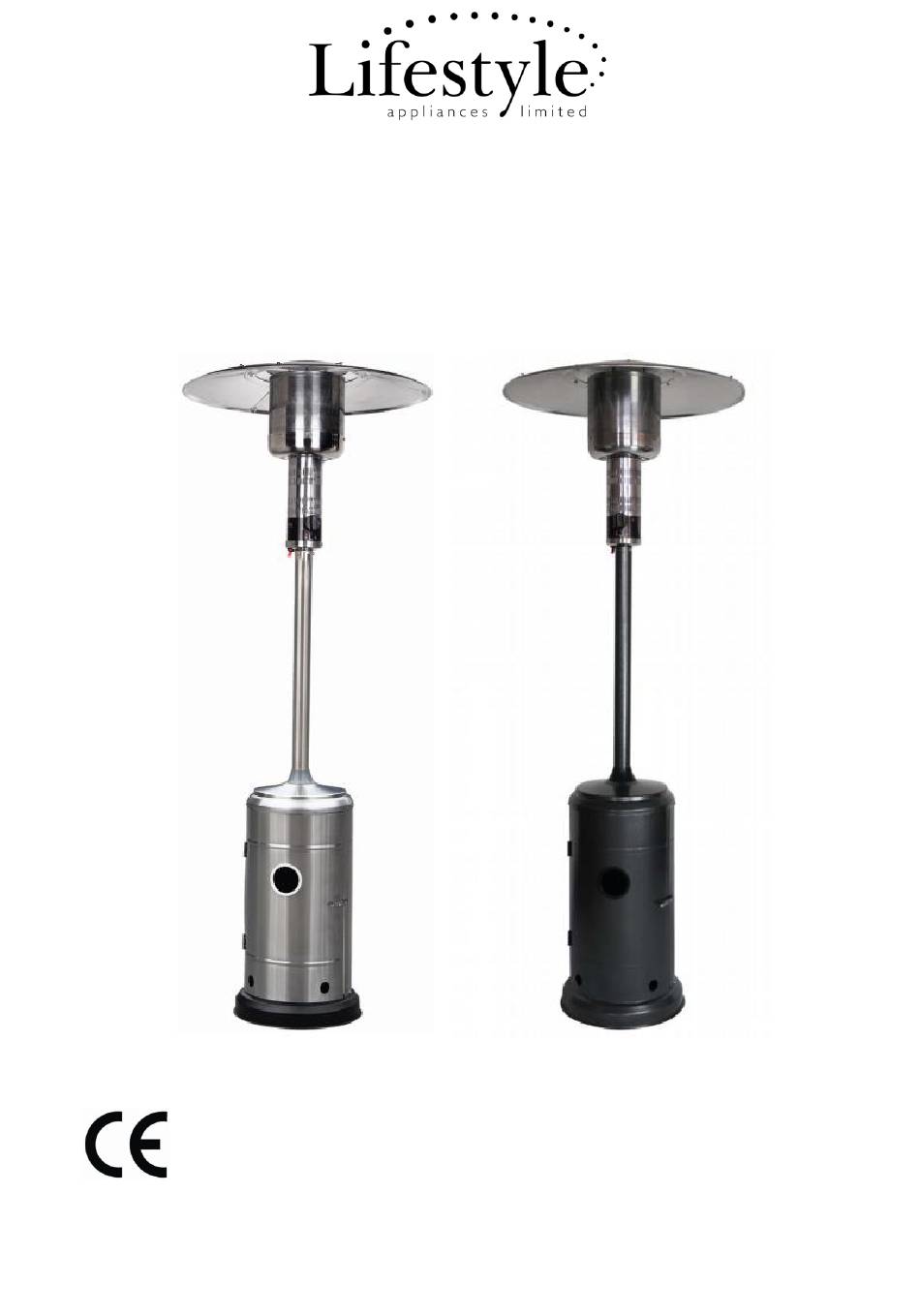

- Page 1 INSTRUCTION MANUAL CAPRI PATIO HEATER Model: LFS841, LFS842, LFS846 0063 WARNING: FOR OUTDOOR USE ONLY OR IN AMPLY VENTILATED AREAS...
-
Page 2: Table Of Contents
PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE! CONTENTS TABLE Patio Heater Safety Warnings ------------------------------------------- Part List ----------------------------------------------------------------------- Patio Heater Assembly ---------------------------------------------------- Operating Instructions ----------------------------------------------------- Leak Testing ------------------------------------------------------------------ Gas Requirement ----------------------------------------------------------- Connecting To a Gas Cylinder ------------------------------------------- Important Safety Rules ---------------------------------------------------- Maintenance ----------------------------------------------------------------- Servicing ---------------------------------------------------------------------- Storage ------------------------------------------------------------------------... -
Page 3: Patio Heater Safety Warnings
PATIO HEATER SAFETY WARNINGS PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND USE. ⚫ This appliance must only be used outdoors or in a well ventilated area, and must not be installed or used indoors. ⚫ To gas cylinder must be changed in a well ventilated area, away from any flammable sources such as candles， cigarettes，or other naked flames 。... -
Page 4: Part List
PART LIST PART DESCRIPTION QUANTITY Reflector Panel Reflector Plate Head Assembly Deck Ring Top of Housing (preassembled) Door (preassembled) Door Lock (preassembled) Rear of Housing (preassembled) Gas Pipe Hose & Regulator Post Base (preassembled) Wheel Assembly KEY: * - Preassembled ALL HARDWARE CONTENTS (Includes preassembled) PATIO HEATER ASSEMBLY 9/13... - Page 5 Instruction before assembly Required Tools: Philip Screwdriver / Adjustable Spanners / Wrenches Leak Detection Solution: one part detergent and three parts water Assemble all nuts and bolts loosely at first. Tighten all connections after completion of assembly. This eases your work and increases the stability of your appliance.
- Page 6 3. Attach reflector panels (A) together using M6 x 8mm screws (FF), Φ6 washers (DD) and cap nuts (GG). Secure loosely with cap nuts (GG). Note: In order to achieve proper alignment of reflector sections, it may be necessary to loosen the preassembled bolts prior to assembly and retighten once complete.
- Page 7 Attach gas pipe with hose (I/J) through top of housing (E) and Post (K), tighten gas pipe (I) to head assembly(C). Secure head assembly (C) to the post (K) using preassembled bolts M5 x 10 (HH), lock washer (JJ), and Φ5 washers (EE). Attach regulator to the gas hose ( J ) and secure with hose clip.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL KNOB ANTI-CLOCKWISE TO THE PILOT SETTING. PRESS KNOB IN AND HOLD FOR 3 MINUTES BEFORE ATTEMPTING IGNITION. TO LIGHT THE PILOT ⚫... -
Page 9: Gas Requirement
GAS REQUIREMENTS ⚫ The pressure regulator and hose assembly to be used must conform to local standard codes. ⚫ Never use a gas cylinder with a damaged body, valve, collar, or foot ring. A dented or rusty gas tank may be hazardous and should be checked out by a gas supplier. -
Page 10: Maintenance
MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: ⚫ Keep exterior surfaces clean. ⚫ Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents. ⚫... -
Page 11: Troubleshooting
Note: Wait until heater is cool before covering TROUBLESHOOTING IF THE PROBLEM IS: AND THIS CONDITION EXISTS: THEN DO THIS: Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing Air in the gas line control knob in) for not more than Pilot won’t light... -
Page 12: Technical Data
It is recommended that the hose is changed within 1 year of the date of manufacture or the national conditions require it. Distributed by: Lifestyle Appliances Limited Unit 66 Enfield Industrial Estate, Redditch, Worcestershire, B97 6DE W: www.lifestyleappliances.co.uk E: sales@lifestyleappliances.co.uk P: 01527 65126...
