Franke PESCARA FFPD4450 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
Replacing the Cartridge
1. Shut off the water supply to the faucet
2. Turn on the faucet briefly to relieve any pressure inside the faucet
3. Move the faucet handle to the "OFF" position
4. Remove the set screw in the bottom of the lever handle 4 using
the allen key
5. Pull the lever handle 4 from the faucet body
6. Unscrew the cap 5 from the lock nut 6
7. Unscrew the lock nut 6
8. Lift ceramic disk cartridge 7 from the body and replace it with a
new one. Ensure the two lugs on bottom of the cartridge sit
properly in the allocated holes at the base of the body
9. Re-assemble faucet in reverse order
10. Test for leakage
General Maintenance
• Clean aerator periodically for any buildup
• Do not use harsh detergents, solvents, chemical agents,
especially any containing CHLORINE, or metallic sponges as
these can damage the surface finish
• Clean only with soft sponge and soapy water

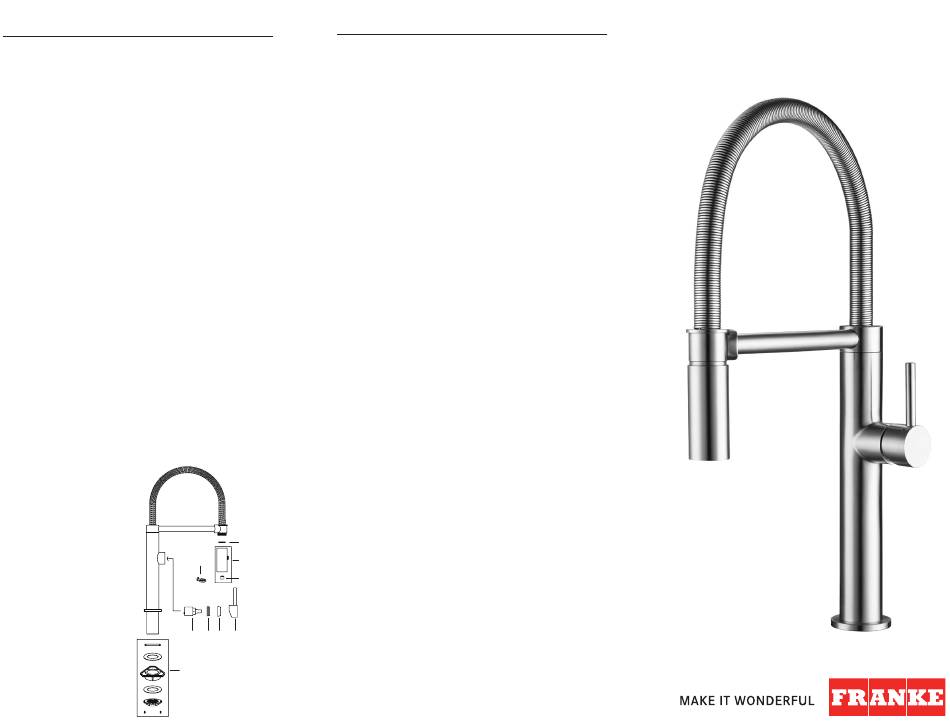

Spare/Replacement List
1. F205518 Rubber Washer
2. F4409 Spray Head Assembly
2.1. F4410 Aerator
3. F3306 Aerator Key
4. F4411 Handle Assembly
5. F4412 Cartridge Cap
6. F4413 Lock Nut
7. F4414 Cartridge
8. F3415 Fastening Set
8
