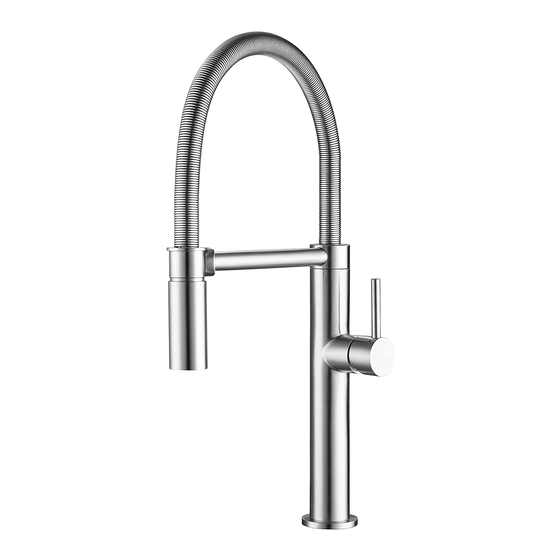

Franke PESCARA FFPD4350 Installation Manual

Franke PESCARA FFPD4350 Installation Manual

Advertisement

Quick Links

STANDARD MAINTENANCE AND TROUBLESHOOTING
Replacing the Cartridge
1. Shut off the water supply to the faucet
2. Turn on the faucet briefly to relieve any pressure inside the faucet
3. Move the faucet handle to the "OFF" position
4. Remove set screw in bottom of lever handle 4 using allen key
5. Pull the lever handle 4 from the faucet body
6. Remove set screw in bottom of handle base on faucet body using
allen key
7. Unscrew the cartridge cap 5
8. Unscrew the cartridge lock nut 6 using the cartridge removal tool
11 provided and a screwdriver for leverage
9. Lift ceramic disc cartridge 7 from the body and replace it with new
cartridge. Ensure the 2 lugs on the bottom of the cartridge sit
properly in the locating holes in the faucet body
10. Re-assemble faucet in reverse order and test for leakage
General Maintenance
Clean aerator periodically for any buildup
Do not use harsh detergents, solvents, chemical agents,
especially any containing CHLORINE, or metallic sponges as
these can damage the surface finish
Clean only with soft sponge and soapy water
Spare/Replacement List
1.
F205518 Rubber Washer
2.
F4401
Spray Head Assembly
2.1. F4402
Aerator
3.
F4312
Aerator Key
4.
F4403
Handle Assembly
5.
F4404
Cartridge Cap Assembly
6.
F4405
Lock Nut
7.
F206502 Cartridge
8.
F4406
Flow Restrictor
9.
F4407
Base O-ring
10. F3415
Fastening Set
11. F4408
Cartridge Removal Tool
LIMITED LIFETIME WARRANTY
Franke Kitchen Systems, LLC (Franke) extends the following
warranty to the original purchaser of its faucets effective
January 1, 2003.
All faucets installed in a private residence will carry a limited
lifetime warranty on all mechanical parts to be free of manufacturing
defects in material and workmanship under normal usage. All
chrome finishes carry a limited lifetime warranty; all other finishes
are warranted for five (5) years from the original date of purchase.
Marine and Outdoor Installation: Franke faucets are NOT
warranted for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the
product has been installed in accordance with our installation
instructions, used as recommended and in a normal residential
application. In the event of a warranty claim, the owner will be
required to provide proof of purchase - save sales receipt. This
warranty covers all components which make the product operational.
Franke, at its option, may repair or replace the product or
components necessary to restore the product to good working
condition. Franke reserves the right to inspect the installation prior
to the actual replacement of the product or component part. This
warranty does not cover misuse or abuse, accidental damages,
scuffs or scratches, improper installation, abnormal usage, negligence
or damage caused by improper maintenance or cleaning. Normal
wear of parts is excluded from the warranty. Damage caused by
impurities or acts beyond our control are not covered. Any product
or part which has been repaired or altered in any manner outside of
Franke's factory, unless previously authorized in writing by Franke,
will void warranty. Any replacement excludes transportation and
any labor re-installation costs. This warranty does not allow
recovery of incidental or consequential damages such as loss of
use, delay, property damage or other consequential damage,
and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
1
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty gives you specific legal rights
that may vary from state to state.
2
2.1
Further information
3
For any further information about our products, about the installation
of them or about the guarantee, please contact the customer
service department at:
8
7
6
5
4
Franke Kitchen Systems, LLC
Kitchen Systems Division
11
800 Aviation Parkway
9
Smyrna, TN 37167
Phone: 1-800-626-5771
10
Fax: 1-888-685-0007
www.franke.us/ks.com
INSTALLATION MANUAL
PESCARA
FFPD4350
