Summary of Contents for Polar Electro CS586-A

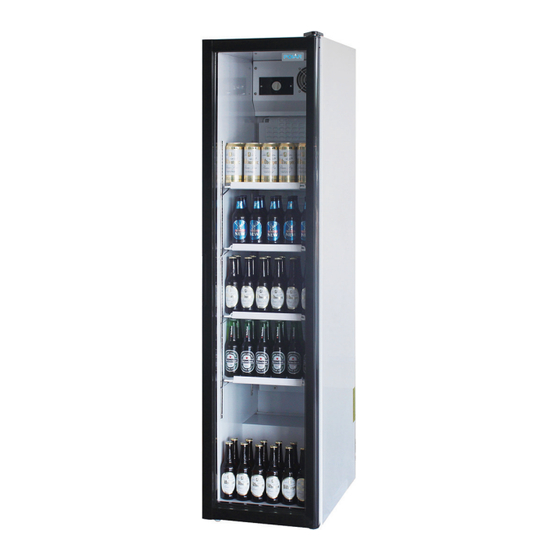

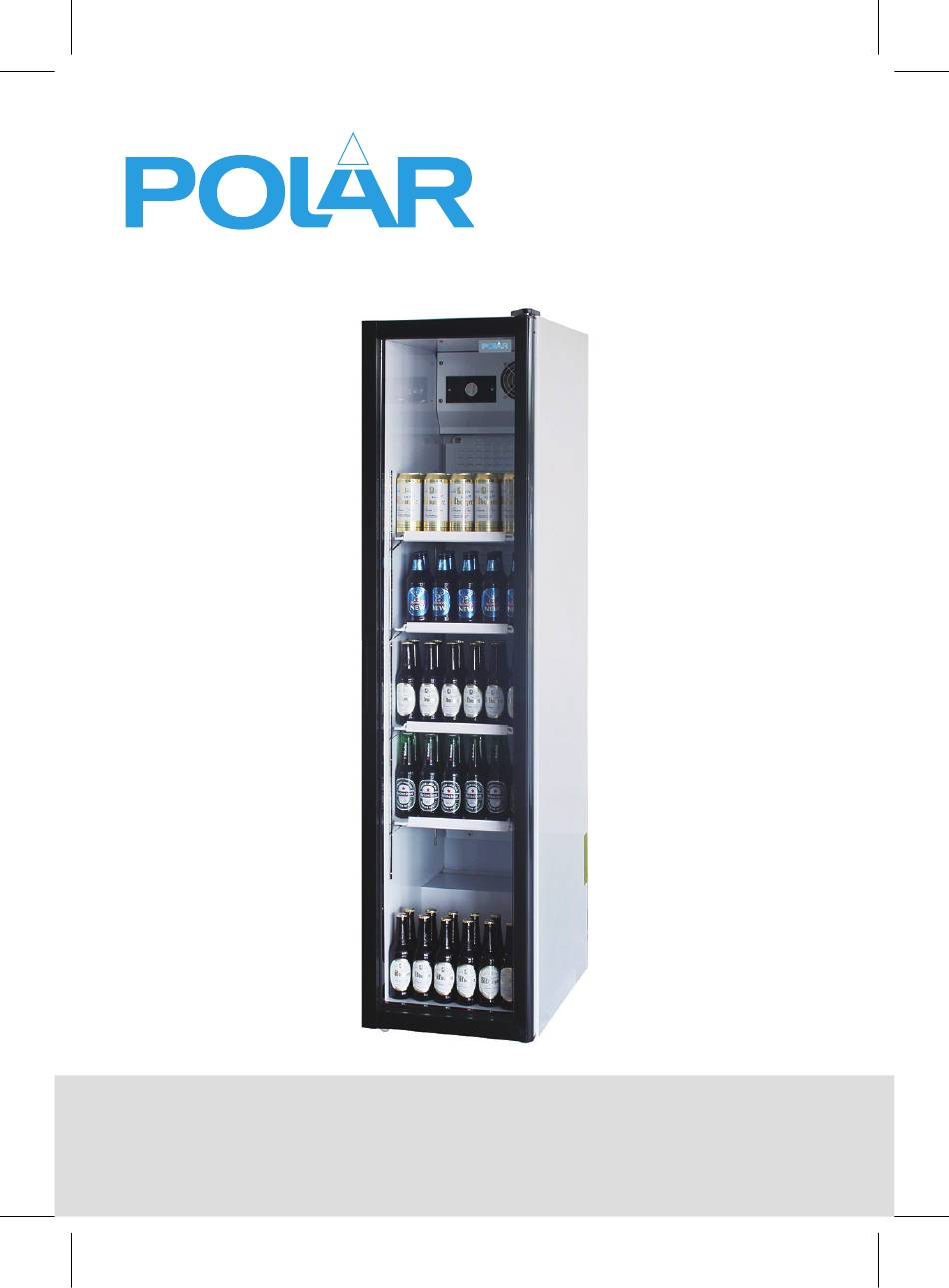

- Page 1 Slim Bottle Cooler Instruction manual Model: CS586-A CS586-A_A5_v2_20240403.indb 1 CS586-A_A5_v2_20240403.indb 1 2024/4/3 11:51 2024/4/3 11:51...
-
Page 2: Safety Instructions
Telephone Helpline: 1300225960 Safety Instructions • Position on a flat, stable surface. • A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product. - In Queensland the service agent/qualified technician MUST hold a Gas Work Authorisation or License for hydrocarbon refrigerants if the appliance gas system is being opened or charged. -
Page 3: Pack Contents
Telephone Helpline: 1300225960 • Polar recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing. Caution: Risk of Fire •... -
Page 4: Installation
Telephone Helpline: 1300225960 Installation Note: Not for use in vans or trailers, food trucks or similar vehicles. Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand. 1. - Page 5 Telephone Helpline: 1300225960 2. Remove the door and disassemble the right 5. Install the right upper hinge and hinge cover lower hinge. (previously removed at step1) on the left side. 3. Install the left lower hinge, which is sold separately with the item code AF871. 4.
-
Page 6: Operation
Telephone Helpline: 1300225960 Operation Control Panel The control panel is located at the front of the cabinet. Turn On 1. Turn the thermostat to the desired temperature setting: I (cool) to IV (Cold) Note: Setting the switch to ‘0’ turns off the appliance. 2. -
Page 7: Troubleshooting
Voltage Power Current Range capacity Refrigerant H x W x D mm (kg) CS586-A 220-240V~ 165W 1.0A 2°C ~ 8°C R600a 1900 x 448 x 682 50Hz Note: For optimal product performance and efficiency, please ensure to mind the net usable capacity (load limit) when filling. -
Page 8: Electrical Wiring
Telephone Helpline: 1300225960 Electrical Wiring The plug is to be connected to a suitable mains socket. POLAR appliances are wired as follows: • Live wire (coloured brown) to terminal marked L • Neutral wire (coloured blue) to terminal marked N •... - Page 9 DocuSign Envelope ID: 555F6438-F733-4384-950C-AF43C1C01055 DocuSign Envelope ID: 9CF99E9B-EA4D-4A26-9AFF-1C87A396462E DECLARATION OF CONFORMITY • Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • • Declaración de conformidad Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp Model • Modèle • Modell • Modello •...
- Page 10 CS586-A_A5_v2_20240403.indb 10 CS586-A_A5_v2_20240403.indb 10 2024/4/3 11:51 2024/4/3 11:51...
- Page 11 CS586-A_A5_v2_20240403.indb 11 CS586-A_A5_v2_20240403.indb 11 2024/4/3 11:51 2024/4/3 11:51...
- Page 12 http://www.polar-refrigerator.com/ CS586-A_A5_v3_2024/04/03 CS586-A_A5_v2_20240403.indb 12 CS586-A_A5_v2_20240403.indb 12 2024/4/3 11:51 2024/4/3 11:51...
