ELECTRO-MECH SCOREBOARD CO.

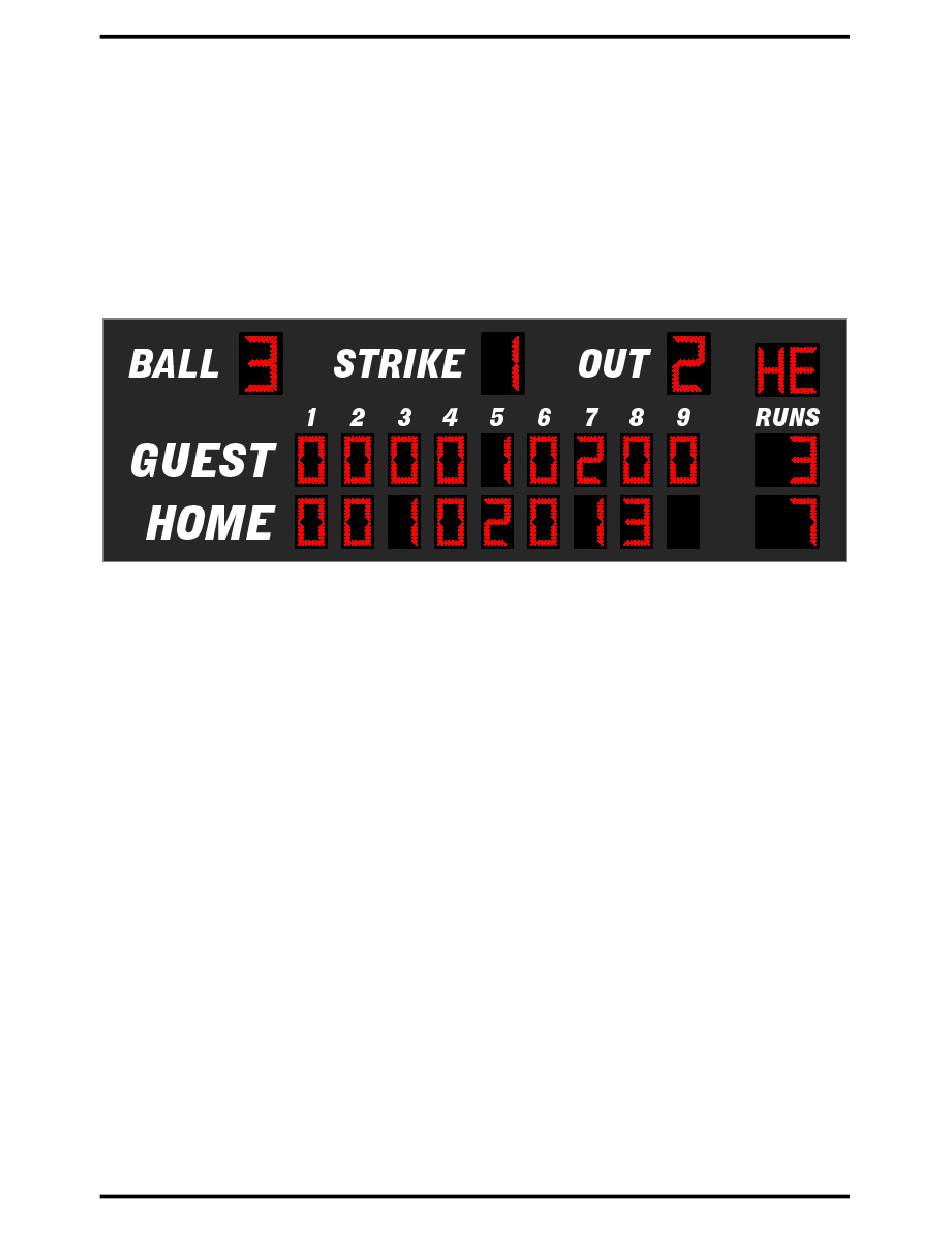

1531 BASEBALL SCOREBOARD
OWNER'S HANDBOOK
Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are
confident that your new scoreboard will give many years of reliable service.
Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096
Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com
Advertisement
Table of Contents
Related Manuals for Electro-mech 1531
Summary of Contents for Electro-mech 1531
- Page 1 1531 BASEBALL SCOREBOARD OWNER’S HANDBOOK Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096...
-
Page 2: Table Of Contents
LED Digits And Indicators Replacement ................17 LED Driver Module Replacement..................22 LED Power Supply Module Replacement .................23 MOV Module Replacement ....................23 WARRANTY ..................24 Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 3: Scoreboard Specifications
The captions are white. DISPLAY: The 1531 baseball scoreboard displays the runs scored (0 to 9) for innings 1 to 9 and the total runs scored (0 to 99) for the HOME and GUEST teams, BALLS, STRIKES, OUTS, HIT, and ERROR. -
Page 4: Scoreboard Installation
The mounting hardware will accommodate posts up to 7 inches outer diameter. Sink the posts in reinforced concrete footings. Figure 1 shows the spacing of the posts for a 1531 scoreboard. The specifications for the posts and concrete footings are dependent upon the expected local wind and soil conditions, the height of the scoreboard from the ground, and the local building codes. - Page 5 TO POWER SOURCE Figure 1 1531 Post Spacing Figure 2 shows the spacing of the posts for a 1531 scoreboard with an optional top sponsor panel. This panel is a separate unit that mounts on the same posts as the scoreboard.
-
Page 6: Mounting The Scoreboard
The threaded rods screw into these tapped holes. The washers and nuts are used to clamp the steel angle bracket against the steel post and hold the scoreboard in place. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 7: Mounting The Optional Top Sponsor Panel
6. Repeat steps 4 -6 at the other mounting points. 7. Tighten the nuts to clamp it in place on the posts. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 8: Electrical Installation
DOME PLUG ACCESS PANEL Figure 5 Rear Access Panel 4. Figure 6 shows the view behind the access panel. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 9: Power Connections
Power Connections The scoreboard requires 120 VAC service at the scoreboard to operate properly. Maximum power consumption of Model 1531: 312 Watts. Make sure that power cable is rated for this electrical load. Install the power cable in conduit. Avoid running the power cable in close proximity to the control cable. -
Page 10: Scorelink 300
ScoreLink 300 The ScoreLink 300 RF MODEM SYSTEM is designed to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation. -
Page 11: Control Console Connections
This scoreboard is operated with a 37-key control console. Figure 10 shows the keypad layout on the control console. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... - Page 12 There is a clock function displayed on the control console, not on the scoreboard. Figure 11 explains the LCD display layout. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
-
Page 13: Control Console Key Functions
Press [3][ENTER] to set the GUEST runs to 3. The LCD display will then read: D15:00 TOT RUNS BOT<00> Press [2][ENTER] to set the Home runs to 2. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... - Page 14 9. ENTER / FLASH ERRORS – This key has two purposes. It is used when entering game information. It can also be used to flash the error symbol (E) on the scoreboard. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
- Page 15 HITS, SET TOTAL ERRORS, HITS +1, ERRORS +1, HORN ON / OFF, CLOCK ON/OFF, and DIMMER keys are not used with the 1531 scoreboard. You should reset the scoreboard each time that it is turned on. Test out all the functions to ensure that the scoreboard is operating properly.
-
Page 16: Scoreboard Shutdown
In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time. -
Page 17: Component Replacement
3. Place the assembly on a flat surface and remove the 6-32 kep lock nuts that hold the defective circuit board in place. 4. Remove the circuit board from the assembly. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... - Page 18 8. Plug the wire assembly onto the LED DIGIT DRIVER – LARGE BOARD J1 jack. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
- Page 19 Black Red Shield AC-L AC-N Ground Control Cable Main Power MOV MODULE LPS7 LPS5 Figure 14 Access Panel Components Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
- Page 20 GUEST INNING 4 NOT USED NOT USED GUEST INNING 9 NOT USED NOT USED HOME INNING 9 NOT USED Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
- Page 21 NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
-
Page 22: Led Driver Module Replacement
3A 250V TRANSFORMER PRIMARY AGC-3 5A 250V DC POWER OUTPUT #1 AGC-5 5A 250V DC POWER OUTPUT #2 AGC-5 Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 23: Led Power Supply Module Replacement
¼” tabs on the module labeled N. The green wire should be connected to the ¼” tab on the module labeled G. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com... -
Page 24: Warranty
MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE. Electro-Mech Scoreboard Co. • #3 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
