ELECTRO-MECH SCOREBOARD CO.

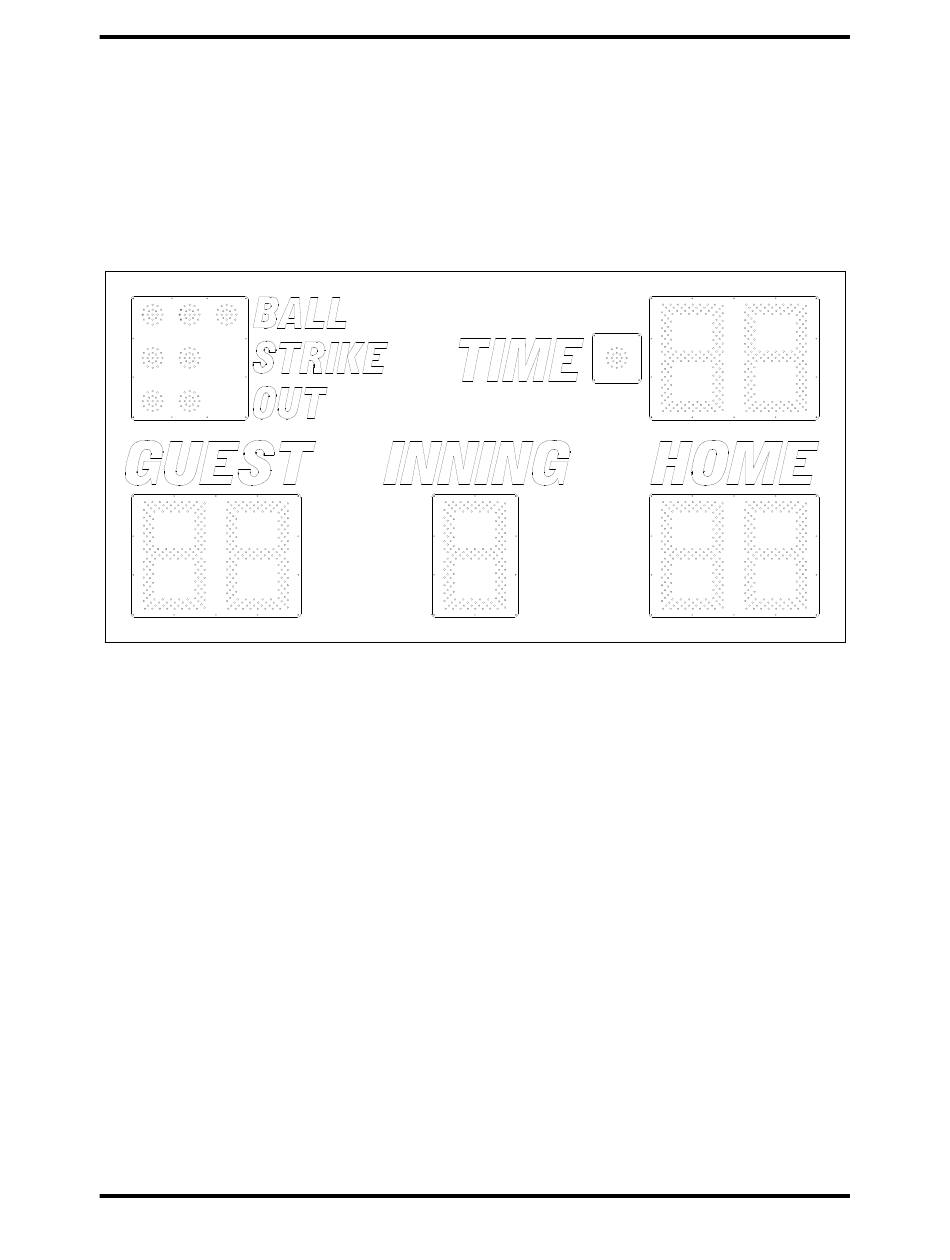

1340 BASEBALL SCOREBOARD
OWNER'S HANDBOOK
Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are
confident that your new scoreboard will give many years of reliable service.
Rev. 4 Revised: 11/02/2007
Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096
Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1340 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electro-mech 1340

  • Page 1 ELECTRO-MECH SCOREBOARD CO. 1340 BASEBALL SCOREBOARD OWNER’S HANDBOOK Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service. Rev. 4 Revised: 11/02/2007 Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096...
  • Page 2: Table Of Contents

    LED Digits And Indicators Replacement ................18 LED Driver Module Replacement ..................22 LED Power Supply Module Replacement .................24 WARRANTY ..................25 Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 3: Scoreboard Specifications

    GENERAL: This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control console, 10 ft. extension cable, and junction box. DIMENSIONS: 10’ L x 5’ H x 6” D (1340 with a side sponsor panel measures 14’ L x 5’ H x 6” D) WEIGHT: 150 lbs SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum.
  • Page 4: Scoreboard Installation

    4.5 inches outer diameter. Sink the posts in reinforced concrete footings. Figure 1 shows the spacing of the posts for a 1340 scoreboard. The specifications for the posts and concrete footings are dependent upon the expected local wind and soil conditions, the height of the scoreboard from the ground, and the local building codes.
  • Page 5 TO POWER SOURCE Figure 1 1340 Post Spacing Figure 2 shows the spacing of the posts for a 1340 scoreboard with an optional side sponsor panel. The sponsor panel is built into the scoreboard cabinet. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096...
  • Page 6 Figure 2 1340 with Side Sponsor Panel Post Spacing Figure 3 shows the spacing of the posts for a 1340 scoreboard with an optional top sponsor panel. This panel is a separate unit that mounts on the same posts as the scoreboard.
  • Page 7: Mounting The Scoreboard

    The scoreboard is attached to the posts at four points. Figure 4 shows the location of the mounting points on the rear of the scoreboard. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 8: Mounting Hardware

    The washers and nuts are used to clamp the steel angle bracket against the steel post and hold the scoreboard in place. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 9 Note: Be sure to leave enough space on the posts above the scoreboard for the optional top sponsor panel, if purchased. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 10: Mounting The Optional Top Sponsor Panel

    3. Remove the rear access panel and the dome plugs on the plate below the access panel. Figure 6 shows the location of the access panel and the dome plugs. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 11 1/2A Black Red Shield AC-L AC-N Horn Ground Control Cable Main Power LPS5 LDM14 Figure 7 Access Panel Removed Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 12: Power Connections

    Power Connections The scoreboard requires 120 VAC service at the scoreboard to operate properly. Maximum power consumption of Model 1340: 144 Watts. Make sure that power cable is rated for this electrical load. Install the power cable in conduit. Avoid running the power cable in close proximity to the control cable.
  • Page 13: Horn Installation

    The SL-230 / 330 RF MODEM SYSTEM is designed to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboards as well as all LED scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation.
  • Page 14: Control Cable Installation

    2. Crimp fork terminals to the control cable wires and the shield. 3. Connect the control cable to Control Cable terminal block on the junction chassis according to figure 10. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 15: Control Console Connections

    If you are unable to insert the plug into the outlet, contact a qualified electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding- type plug. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 16: Scoreboard Operation

    Figure 11 Keypad Layout The scoreboard will display: GUEST SCORE – 0 HOME SCORE – 0 INNING – 0 CLOCK – 30 Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 17: Control Console Key Functions

    13. DEC. SEC. – This key decreases the clock by one second. The HIT and ERROR keys are not used with the 1340 scoreboard. You should reset the scoreboard each time that it is turned on. Test out all the functions to ensure that the scoreboard is operating properly.
  • Page 18: Servicing The Scoreboard

    In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time.
  • Page 19 6. Plug the ribbon cable onto the header on the back of the circuit board. Refer to figure 13 in order to plug the ribbon cable IDC connector onto the circuit board in the proper orientation. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 20 All other components are located behind the rear access panel. Figure 15 shows the view behind the access panel. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 21 DRIVER MODULE DC POWER INPUT #2 HORN RELAY CONTROL COLON INDICATOR (SEG H) INNING UNITS GUEST SCORE TENS DIGIT STRIKE BALL Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 22: Led Driver Module Replacement

    LPS5 LED Power Supply Module. The table following the figure lists the fuse ratings, functions, and part numbers. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 23 AGC-1 ½A 250V 120 VAC ELECTRICAL RECEPTACLE AGC-1/2 Note: Other manufacturer’s fuses may be substituted for the Bussmann fuses. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 24: Led Power Supply Module Replacement

    To avoid damage to the module, always turn off the power to the scoreboard when removing or replacing it. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 25: Warranty

    MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
