Electro-mech 2665-4 Owner's Handbook Manual

Basketball scoreboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

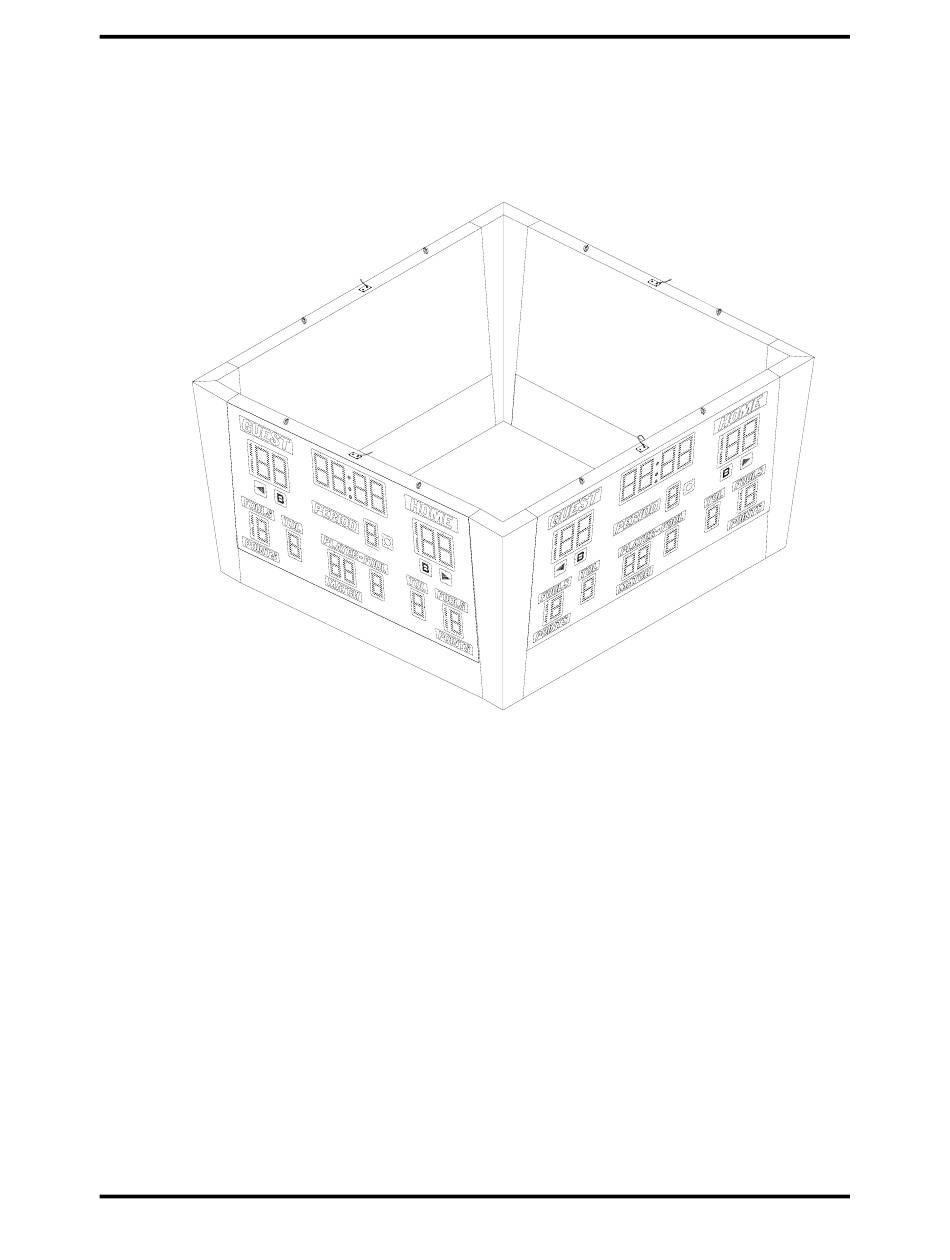

ELECTRO-MECH SCOREBOARD CO.
MODEL 2665-4 BASKETBALL SCOREBOARD
OWNER'S HANDBOOK
Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are
confident that your new scoreboard will give many years of reliable service.
Rev. 1 Revised:01/10/2007
Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096
Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2665-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Electro-mech 2665-4

Summary of Contents for Electro-mech 2665-4

  • Page 1 ELECTRO-MECH SCOREBOARD CO. MODEL 2665-4 BASKETBALL SCOREBOARD OWNER’S HANDBOOK Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service. Rev. 1 Revised:01/10/2007 Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096...

  • Page 2: Table Of Contents

    LED Digits And Indicators Replacement ................18 Horn Replacement .......................19 LED Driver Module Replacement..................20 LED Power Supply Module Replacement .................22 WARRANTY ..................23 Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 3: 2665-4 Basketball Scoreboard Specifications

    10 ft. extension cable, three 25 ft. extension cables, and junction box. DIMENSIONS: Approximately 12’ 6” square at the top x 60” H x 6” D (2665-4 with bottom sponsor panel measures approximately 12’ 10” square at the top L x 81” H x 6” D) WEIGHT: 1000 lbs (2665-4 with bottom sponsor panel weighs 1100 lbs) SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum.

  • Page 4: Scoreboard Installation

    11. Connect your chains or cables to the eyebolts of the assembled scoreboard. Figure 1 shows the distance between the eyebolts. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 5: Electrical Connections

    Figure 2 shows the electrical connection points on the scoreboard. We recommend a qualified electrician perform the needed electrical connections to ensure proper operation of your scoreboard. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 6: Connecting The Scoreboard To Your Power Source

    ScoreLink 200 The SCORELINK 200 RF MODEM SET is intended to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboards as well as all LED scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation.

  • Page 7: Control Cable Installation

    Those customers must solder the ¼” stereo plug to the cable according to the figure 4. Unscrew the stereo plug cover from the plug body to expose the contact pins. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 8: Daisy Chaining The Serial Data Lines

    If you are unable to insert the plug into the outlet, contact a qualified electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding- type plug. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 9: Goal Lights Installation

    4. Never splice the control cables together or connect them to the same junction box. Each scoreboard will need to be connected to 120 VAC service. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 10: Scoreboard Operation

    This scoreboard is operated with a 37-key control console. Figure 5 shows the keypad layout on the control console. Figure 5 Keypad Layout Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 11 LCD display that are not present on the scoreboard. Figure 6 explains the LCD display layout. Figure 6 Control Console LCD Display Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 12: Control Console Key Functions

    To reset the clock to count down mode, press [CLOCK UP / DOWN], [0], [ENTER] on the control console. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 13 LCD display to the left of the time to indicate that the time of day function is active. The scoreboard will display the time of day. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 14 Press the keypad number for the player fouls, [ENTER]. EXAMPLE: To set the player fouls to 3, press [PLAYER FOUL], [3], [ENTER]. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 15 17. GUEST SCORE +1 – This key is used to increment the guest score by 1. 18. HOME SCORE +1 – This key is used to increment the home score by 1. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 16 GUEST team has 1 time out left, press [SET GUEST TIME OUTS], [1], [ENTER]. 26. CLEAR – This key clears the information being entered into the control console. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 17: Horn And Goal Lights Operation

    Proper scoreboard shutdown will help protect the scoreboard and control console from power surges and lightning strikes. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 18: Servicing The Scoreboard

    In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time.

  • Page 19: Horn Replacement

    All other components are located behind the PERIOD panel of each cabinet. Figure 8 shows the view behind the PERIOD panel. Figure 8 SCOREBOARD ELECTRONICS Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 20: Led Driver Module Replacement

    To avoid damage to the module, always turn off the power to the scoreboard when removing or replacing it. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
  • Page 21 1A 250V HORN AGC-1 3A 250V TRANSFORMER PRIMARY AGC-3 Note: Other manufacturer’s fuses may be substituted for the Bussmann fuses. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 22: Led Power Supply Module Replacement

    To avoid damage to the module, always turn off the power to the scoreboard when removing or replacing it. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...

  • Page 23: Warranty

    MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE. Electro-Mech Scoreboard Co. • 120 Industrial Parkway • Wrightsville, GA 31096 Phone: (800) 445-7846 • Fax (478) 864-0212 • Email: score@electro-mech.com...
