- Page 1 QUICK START GUIDE VIENTO 10 AND HD10 GIGE 603 Portway Avenue, Suite 100 | Hood River, OR 97031 | 855.222.1801 | www.sierraolympia.com Product Export Classification Control Number (ECCN): 60/30Hz: 6A003.b.4.b 9Hz: 6A993 This document does not contain export-controlled technology...
-
Page 2: Table Of Contents
QUICK START GUIDE VIENTO 10 AND HD10 GIGE TABLE OF CONTENTS Table of Figures ......................... 1 Safety Conditions ..................... 2 Export Notice ......................2 Reference Documents ....................2 Introduction ......................2 Included Items......................3 Required Equipment ....................3 Connect Camera to Software – Setup Procedure ............3 Noise Filtering ...................... -
Page 3: Safety Conditions

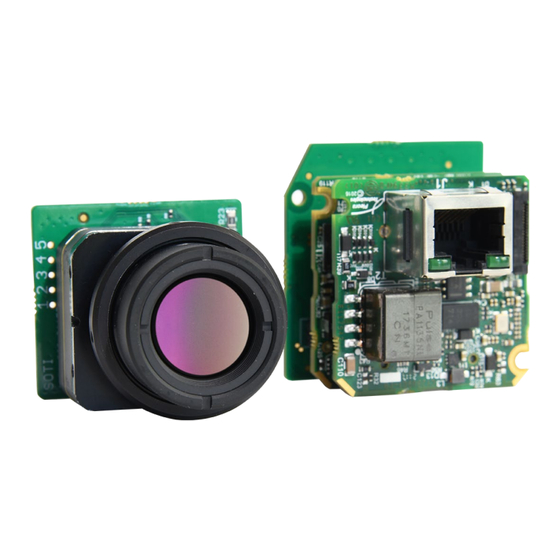

User Guide, Viento GUI 4 INTRODUCTION The Viento 10 GigE is a fixed focal length, GigE Vision LWIR imager designed for integrators and OEMs. This quick start guide will cover basic operation of this product. More detailed technical information can be found in the documentation referenced in section 5. -
Page 4: Included Items
QUICK START GUIDE VIENTO 10 AND HD10 GIGE 5 INCLUDED ITEMS Packaging contains the following items: • Viento 10 GigE camera Delivery drive • o Quick Start Guide (this document) o Viento GUI Software o GigE drivers and support files... -
Page 5: Figure 2 Ethernet Connection With Poe Switch
QUICK START GUIDE VIENTO 10 AND HD10 GIGE NOTE: The network device must be PoE capable, or a PoE injector must be used on the camera-side of the device. Figure 2 Ethernet Connection with PoE Switch Install the Viento GUI software. Start the software from the Start Menu or the installation folder. -
Page 6: Figure 4 Viento Gui Device Selection Window
QUICK START GUIDE VIENTO 10 AND HD10 GIGE In the Device Selection section in the Available Devices window, select the camera entry from the list. NOTE: The camera entry will begin with “iPORT-NTx-GigE”. NOTE: Multiple cameras may be identified by their MAC address or DHCP- assigned IP address at the end of the string. -
Page 7: Noise Filtering
QUICK START GUIDE VIENTO 10 AND HD10 GIGE 8 NOISE FILTERING DRS offers two different noise filtering options to improve image quality, Temporal Noise Reduction (TNR) and Spatial Noise Reduction (SNR). TNR compares pixels from frame to frame and replaces them if their value is less than a specified threshold. SNR compares each pixel’s value to its neighbors and ensures the intensity is bounded within the range of its neighbors.
