Better Bathrooms Evelyn EVESLCHRPO User Manual

Traditional pull out chrome & brushed brass
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Product
EVESLCHRPO - Traditional Pull out Chrome
EVESLBBRPO - Traditional Pull out Brushed Brass
• Single-person assembly
• Tools required
• We always recommend using professional
tradespeople to install your product
V2_23/2/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evelyn EVESLCHRPO and is the answer not in the manual?

Questions and answers

Related Manuals for Better Bathrooms Evelyn EVESLCHRPO

Summary of Contents for Better Bathrooms Evelyn EVESLCHRPO

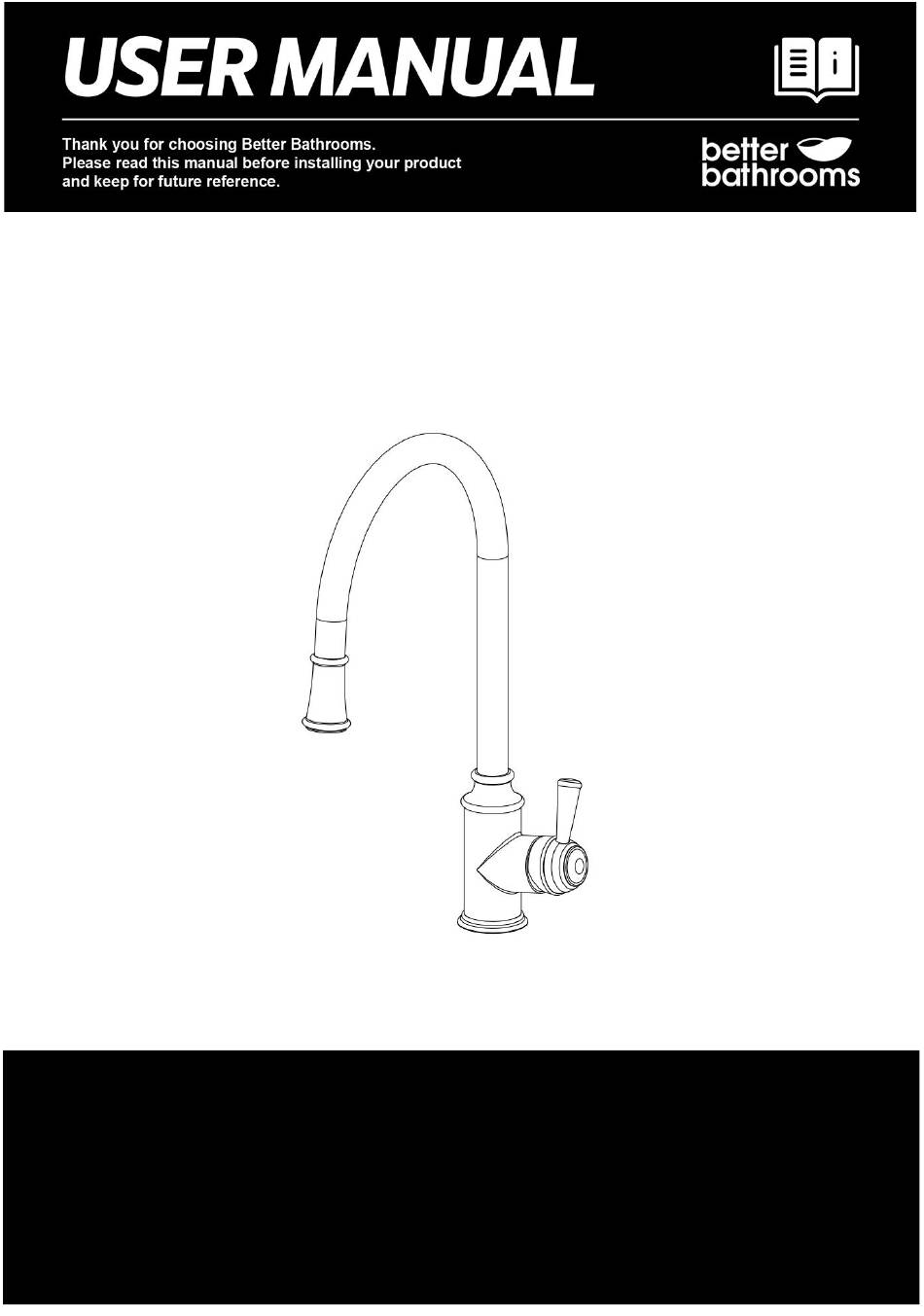

  • Page 1 Product EVESLCHRPO - Traditional Pull out Chrome EVESLBBRPO - Traditional Pull out Brushed Brass • Single-person assembly • Tools required • We always recommend using professional tradespeople to install your product V2_23/2/2023...

  • Page 2: Congratulations On Your Purchase

    Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.

  • Page 3: Parts Diagrams

    Parts / Diagrams Description Handle assembled Dome Locknut Cartridge Body assembled Decorative Cap Spout assembled Plastic Cap Hand Sprayer with aerator assembled Pull-out hose Lead Base Gasket O-ring Adjustable connector Non-return valve Connector Fixing Kit Flexible hose...
  • Page 4 Dimensions Tools required • Screwdriver • Wrench...

  • Page 5: Installation

    Installation Remove the Screws(7H), Locknut(7G), Metal gasket(7F), Rubber Gasket(7E), Mounting seat(7D), Rubber Washer(7C) from the mixer body. From above sink, push the inlet hoses through the hole on sink and position correctly. Do not allow the hoses to be kinked or twisted Ensure the gasket is fitted between the base and sink/top.
  • Page 6 Install the flexible hoses with inlets in the body. These should be hand tightened, do not use a spanner as this can damage the O – ring. From underneath the sink, fix the lead(8D) with pull-out hose(8C), and tighten the screws on the lead after the hose is properly adjusted for suitable length.

  • Page 7: Operation

    Operation The pull-out hand sprayer has 2 functions. Standard mode is AERATED FLOW. By pressing the switch button, the mode becomes SPRAY. The mode automatically gets back to standard when the mixer is closed and re-opened. Troubleshooting Issues Inspection Item •...

  • Page 8: Maintenance

    Maintenance Replacement of Cartridge A: Remove cap and screw by using allen key. Take out the handle. B: Remove the Cap, locknut(by using wrench), cartridge from body accordingly. Install a new catridge in reverse steps. Cleaning To maintain the surface of your product, wipe with a clean damp cloth and wipe dry, do not use any abrasive cleaning agents or materials.
