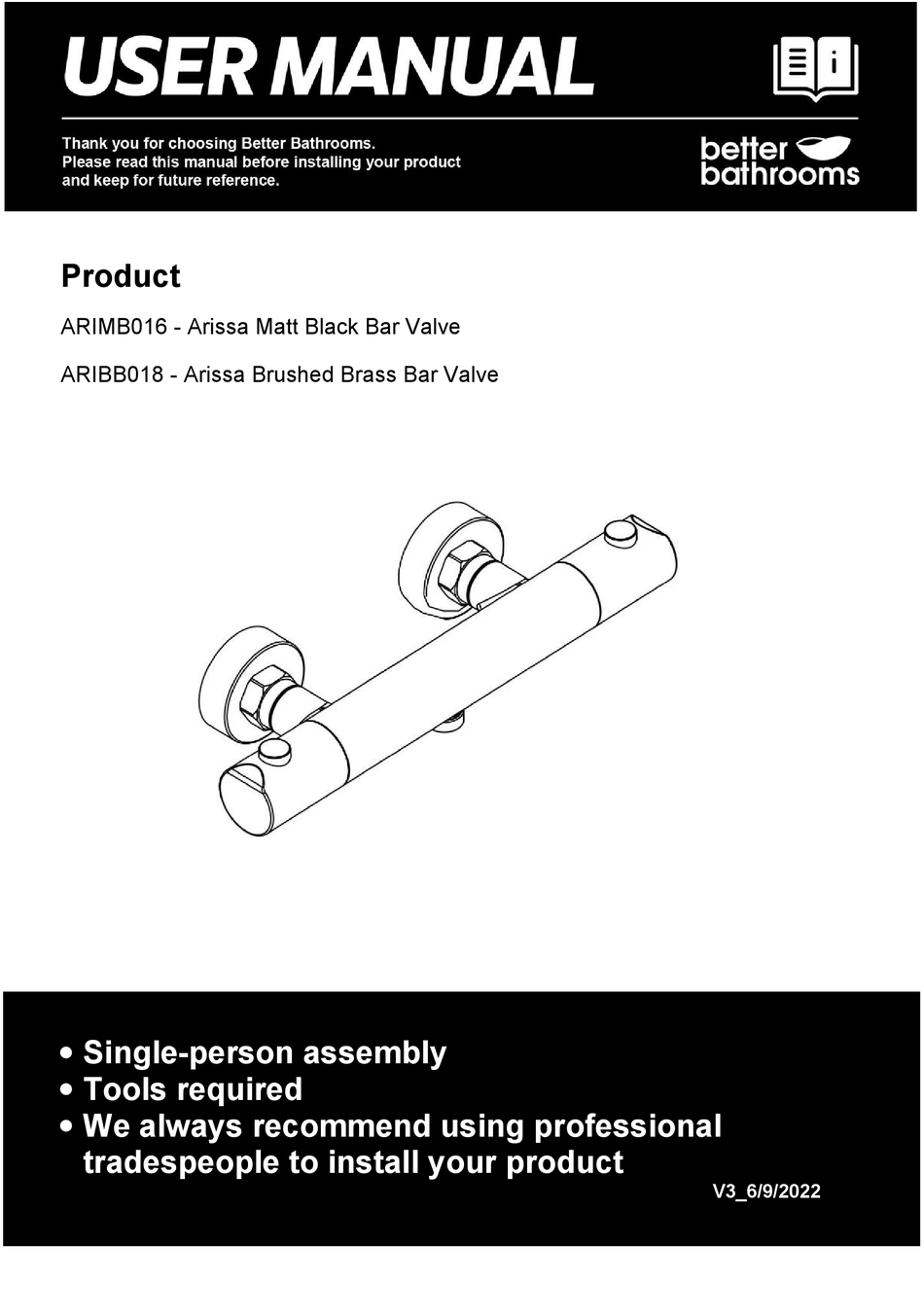

- Page 1 Product ARIMB016 - Arissa Matt Black Bar Valve ARIBB018 - Arissa Brushed Brass Bar Valve Single-person assembly Tools required We always recommend using professional tradespeople to install your product V3_6/9/2022...
- Page 2 Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.
- Page 3 Parts / Diagrams Description Description Safety Button Divertor cartridge O-ring Locknut Lever Positioning gasket Grub screw Spring Switch handle Temperature control handle Button Grub screw Grub screw Positioning rod Grub screw Positioning ring Lock ring Plastic ring Non-return valve Thermostatic cartridge Connector assembled Main body assembled Rubber gasket with filter...
- Page 4 Dimensions Tools required Spanner Hammer Drill and bit PTFE seal tape Installation Mount the eccentric feet( cold water side and hot water side). The end surfaces of the right and left eccentric feet should be horizontal and flush with the wall surface.
- Page 5 Mount the mixer body to the eccentric feet. Cold supply must be on the right and hot supply on the left. Tigten the cap nuts on hot water side and cold water side alternatively while holding product horizontal. Make sure the rubber washer with filter are included in the nuts, and the bulge side of filter should be opposite to the direction of eccentric feet - refer to the left.
- Page 6 Troubleshooting Issues Inspection Item Poor water flow Is there dust with filter net of thermostatic cartridge (5) Is there debris inside the non-return valve(8&17) Is there dust with filter net of rubber washer(19) Water leak Is there damage or dirt within the O-rings of the ...
- Page 7 Replacement of Cartridge Before replacement please turn off the water supply. Rotate the button(11C) and take it off, loose the grub screw(11B) by allen then take handle(11A). Remove positioning ring(11D), plastic ring(11E). Loose the grub screw(11G) and take out the thermostatic cartridge(11F).
