Product
ARIMB010 - Arissa Matt Black Dual Control Concealed Valve - 1 Outlet
ARIBB010 - Arissa Brushed Brass Dual Control Concealed Valve - 1 Outlet
ARIMB011 - Arissa Matt Black Dual Control Concealed Valve - 2 Outlet
ARIBB011 - Arissa Brushed Brass Dual Control Concealed Valve - 2 Outlet
ARIBB012 - Arissa Brushed Brass Triple Control Concealed Valve - 2 Outlet
Single-person assembly
Tools required
We always recommend using professional
tradespeople to install your product
V2_8/9/2022
Advertisement
Table of Contents
Related Manuals for Better Bathrooms Arissa ARIMB010
Summary of Contents for Better Bathrooms Arissa ARIMB010

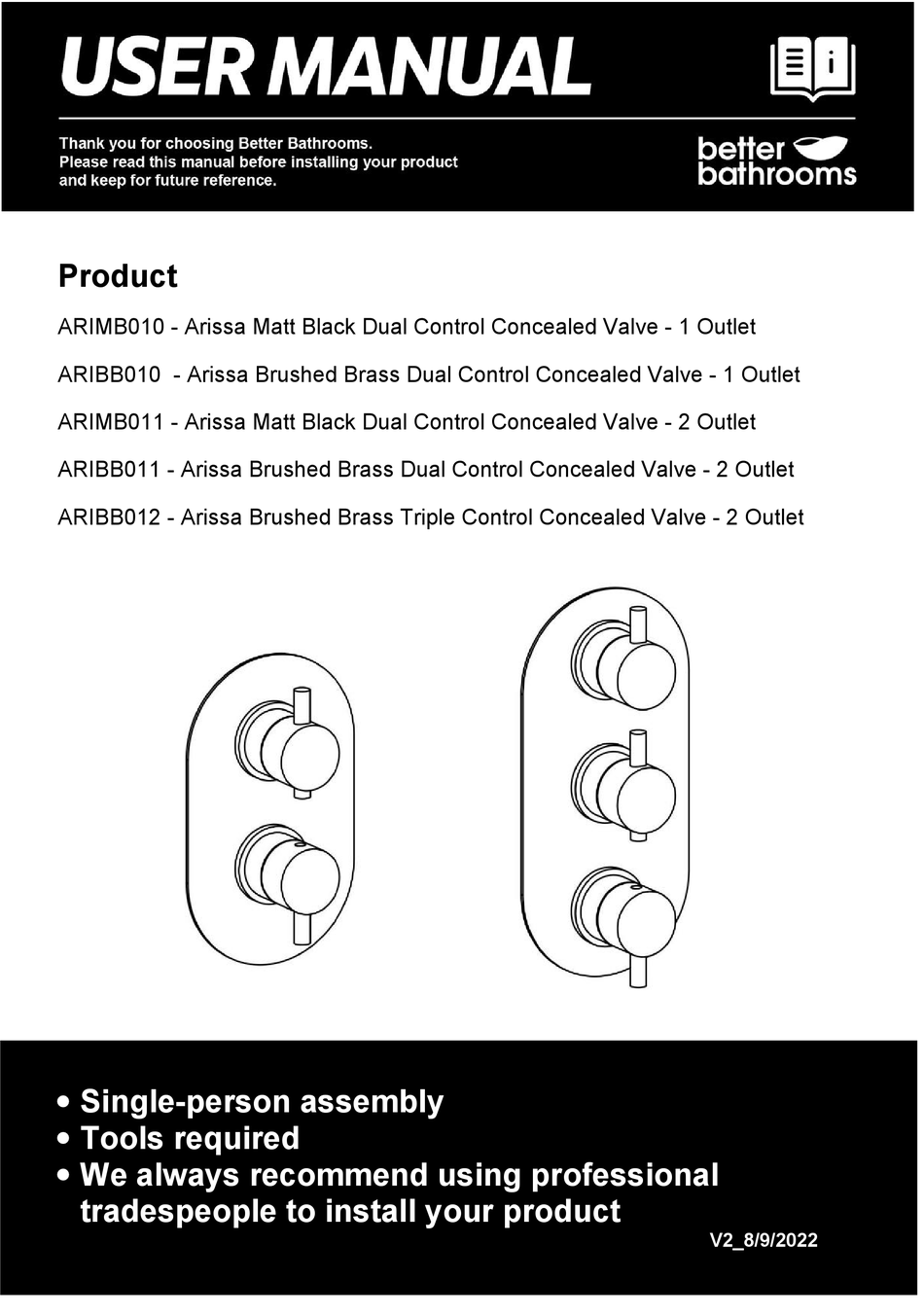

- Page 1 Product ARIMB010 - Arissa Matt Black Dual Control Concealed Valve - 1 Outlet ARIBB010 - Arissa Brushed Brass Dual Control Concealed Valve - 1 Outlet ARIMB011 - Arissa Matt Black Dual Control Concealed Valve - 2 Outlet ARIBB011 - Arissa Brushed Brass Dual Control Concealed Valve - 2 Outlet ARIBB012 - Arissa Brushed Brass Triple Control Concealed Valve - 2 Outlet ...
-
Page 2: Congratulations On Your Purchase
Congratulations on your purchase And welcome to our growing gang of savvy shoppers We're on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day. -

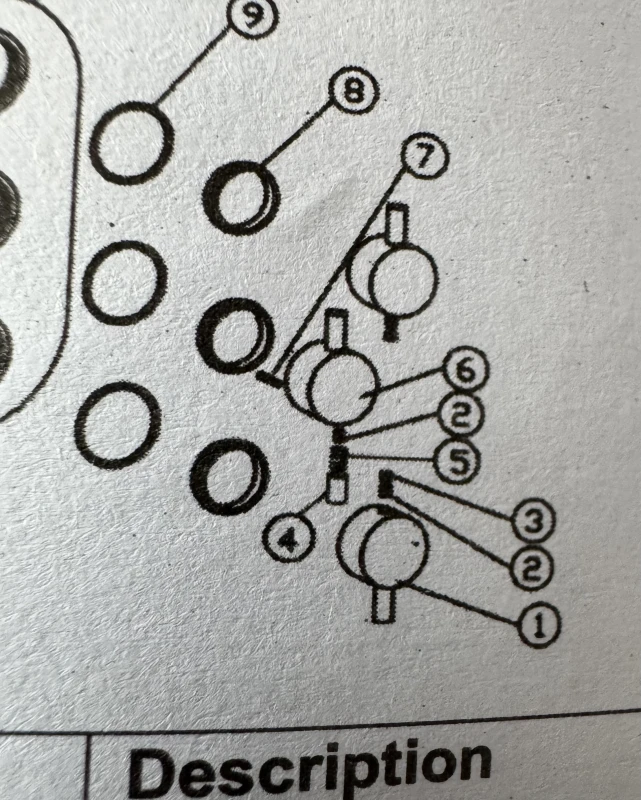

Page 3: Parts Diagrams
Parts / Diagrams Dual Control Concealed Valve - 1 Outlet Description Description Description Button Cover of concealed box Plug Spring Spirit level indicator O-ring Thermostatic Housing thermostatic Non-return valve handle valve Housing of divertor valve Screw Grub screw Positioning cap Middle Box Divertor knob Screw... - Page 4 Description Description Description Button Cover of concealed box Plug Spring Spirit level indicator O-ring Thermostatic Housing thermostatic Non-return valve handle valve Housing of divertor valve Screw Grub screw Positioning cap Middle Box Divertor knob Screw Body Positioning rod Screw Rubber seal ring(Blue)-cold Plastic ring...
- Page 5 Description Description Description Divertor knob Cover of concealed box Plug Grub screw Spirit level indicator O-ring Housing thermostatic Non-return valve valve Button Housing of divertor valve Screw Spring Positioning cap Middle Box Thermostatic Screw Body handle Positioning rod Screw Rubber seal ring(Blue)-cold Plastic ring...
-
Page 6: Tools Required
Dual Control Concealed Valve - 1 Outlet Dual Control Concealed Valve - 2 Outlet Triple Control Concealed Valve - 2 Outlet Tools required PTFE tape... -
Page 7: Installation
Allen key Screwdriver Thermometer Knife Installation Prior to installation ensure that the hot and cold water supplies are both shut off. The recess should be made such as to have the mixer protrude out of the surface at the indicated markings(29mm minimum and 54mm maximum). - Page 8 Install the divertor knob into position and secure it in place via the provided grub screw. Clip on the decorative grub screw cover. Open water supply for hot and cold pipelines. With the thermostatic mixer set at 38°C, set the divertor to direct water to the hand shower and check the temperature with a thermometer which should correspond to the 38°C setting( refer to the...
-
Page 9: Operation
The installation is complete. Operation There is a safety button at the bottom of thermosatic handle. Pressing down the button and turn the handle towards the H side can adjust temperature higher than 38 °. -
Page 10: Troubleshooting
Troubleshooting Issues Inspection Item Poor water flow Is there dust with filter net of thermostatic cartridge (25) Is there debris inside the non-return valve(31) Is the supply pressure inadequate Water leak Is there damage or dirt within the O-rings of the ... - Page 11 Be reminded to close water supply before maintenance. Calibration...
- Page 12 After the installation the output temperature of the thermostat must be checked. A recalibration correction would be necessary if the temperature measured at the output differs from the temperature set at the thermostat. The below steps should be followed to perform thermostat calibration.
- Page 13 To maintain the surface of your product, wipe with a clean damp cloth and wipe dry, do not use any abrasive cleaning agents or materials. If any harsh chemicals come into contact with the surface of the product, rinse and wipe clean immediately.
