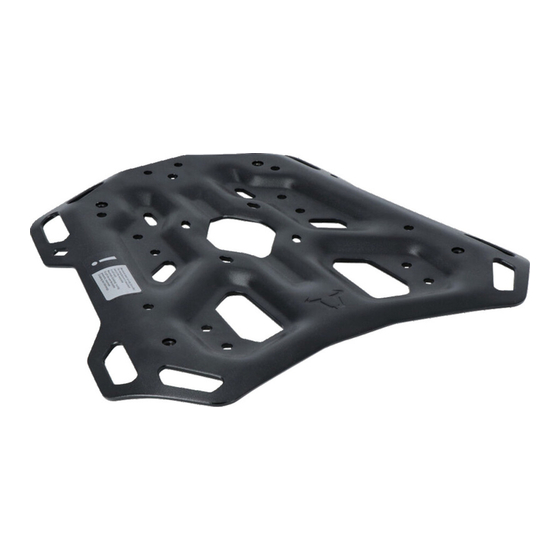

- Page 1 ANBAUANLEITUNG mounting instructions • instructions de montage • instrucciones de montaje • istruzioni di montaggio GPT.07.975.30000 beinhaltet • contains • contient • contiene • contiene GPT.07.975.19000/B GPT.00.152.35500/B BC.HTA.00.305.30000...
- Page 2 ~ 1 h. EASY DIFFICULT ENGLISH ·Thank you for choosing this premium product from SW-MOTECH. PREPARATION: Read the mounting instructions carefully and make sure Visit our online shop for more information (e.g. model assignments). Required that all parts on the parts list are available.
- Page 3 Indicates the tightening torque of a part specified by SW- strength; M (MEDIUM): medium strength; L (LOW): MOTECH or the vehicle manufacturer (OEM). low strength. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 4 Ø 22 / ø 8,4 / h 6 GPT.00.152.002.11 SC.ST.06.020.02.7380.109 US.ST.064.02.9021 MU.ST.06.02.6927.08 SBL.00.051.013.02 DB.ST.0220.0084.0060.02 Ø 18 / ø 8,4 / h 15 DB.ST.0180.0084.0150.02 The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 5 NOTE: Disassembly and assembly are carried out on the same side! Loosen the screws on the original rack, and remove it. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 6 WARNING: Use a liquid threadlocker! Do not tighten the screws (3) and (4) yet. × × 18 Nm × 18 Nm The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 7 WARNING: Use liquid thread locker. Tighten the screws (3), (4), and (6) as specified in the mounting instructions. × 3 Nm The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 8 WARNING: Use liquid thread locker. Do not tighten the screws (9) and (11) yet. × × × × × × The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
- Page 9 MOUNTING STEP · READ AND KEEP MOUNTING INSTRUCTIONS! NOTE: If the SW-MOTECH side carrier is installed at the same time, × screws (3) and (9) are omitted. In their place, mount the screws (*) included with the side carrier as shown in the detailed drawing below.
- Page 10 TÜV regulations. After assembly, parts that are subject to registration should be entered in the vehicle documents by your test center. The content translation is automated. Errors and omissions excepted © SW-MOTECH GmbH & Co. KG Subject to technical and design changes.
