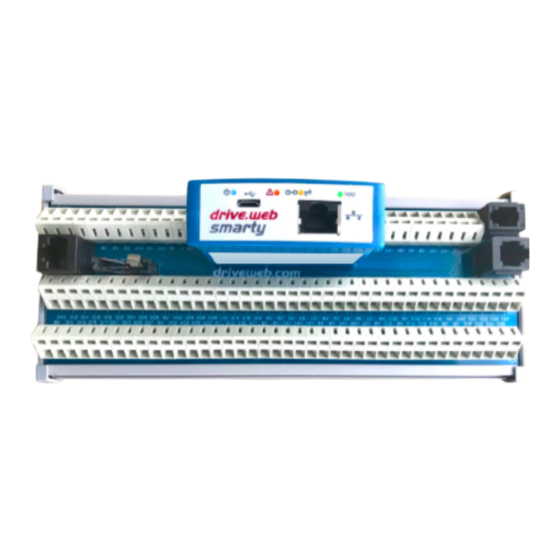

Drive.web smarty dw241 Installation & Operation Manual

drive.web
Universal Automation Controller
models
dw240, dw241,
dw244,
dw248, & dw249
Installation & Operation Manual
Contents
UL, CE, and UKCA Conformity Statements, Warnings
smarty Models, Standard Features
smarty Installation, Terminal Naming and Ratings
smarty Terminals and Wiring, Front Panel, Serial Port
smarty Carrier Descriptions
Carrier Terminal Designations, Dimensions, Drawings 7-10
smarty Extended Operating Ranges, RTC clock, FI Notes 11
Get savvy
®
Get started with savvy engineering & design software
Upgrade savvy and smarty, savvy-SFD Upgrade
savvyPanel
smarty Precision Motion Parameters and Connections
smarty Comms Interfaces, CANopen, Modbus, EIP
Free drive.web Online Training Seminars
UL Certification Statements
This process control equipment to be supplied by Class2, LPS, limited power supply.
CE and UKCA Conformity Statements
EMC Standard, EN 61326-1: 2006, Electrical Equipment for Measurement, Control and
Laboratory Use.
Emissions Class A, Commercial Equipment.
Immunity Table 2, Industrial Equipment.
LVD Standards, EN 61010-1: 2010, Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use and;
EN 61010-2-030: Particular Requirements for Testing and Measuring Circuits.
smarty is an industrial controller designed for permanent installation by qualified professionals.
If it is used in a manner not specified herein the protection provided may be impaired.
smarty and its packaging contain recyclable materials
This device is designed to comply with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.
This Class [A] digital apparatus is designed to comply with Canadian ICES-003. Cet appareil numerique de la
classe [A] est conforme à la norme NMB-003 du Canada.
Warning! It is essential that you read and understand this entire manual and the entire contents of the savvy
software Help menu before proceeding with your installation and configuration. See page 6 for savvy installation
instructions. For more information and to download manuals and software, go to www.driveweb.com or contact
us. See page 12.
Warning! Your use of savvy software and drive.web devices may cause motors and machinery to power up
with high Voltages or start or operate in an unexpected, dangerous or lethal way. It is essential that you are
completely familiar with all of the equipment and the system design before attempting to program or edit a
program or connect to any live device. It is also essential that a risk assessment is conducted to identify hazards.
Risks must be reduced to tolerable levels.
Warning! You are entirely responsible for the configuration or use of any drive.web product. By configuring
or using these products you agree to indemnify and hold harmless Bardac Corporation, its employees, directors,
officers, distributors, and resellers against the consequences of your configuration or use of the products.
Warning! Information in this manual is subject to change without notice. You are responsible for verifying the
proper operation of your smarty. Special care must be taken after loading new firmware or installing new options.
SMARTY, SAVVY, SAVVYPANEL, SPEEDY, BARDAC, and DRIVE.WEB are trade marks of Bardac
HG503894Iss3.2
smarty
Corporation, registered in the U.S. and other countries.
, USB Plug and Play, Ethernet Networking
Touch Screen Operator Station
®
www.driveweb.com
smarty
drive.web automation
Page
1, 2
2
3, 4
5
6
12, 13
13, 14
14
14, 15
12
12
12
Page /16
®
U L
C US
LISTED
QUYX
E472630
1
