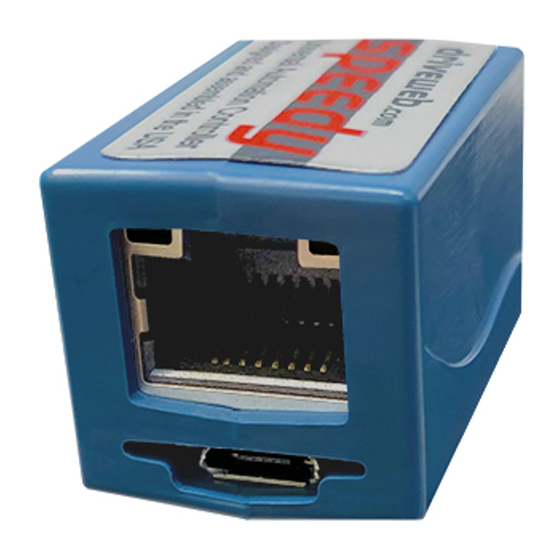

drive.web
speedy
Distributed Process Controller
models
Installation & Operation Manual
Contents
, UL, FCC, IC, warnings, copyright notice
identification and standard features
speedy
speedy
options listing
speedy
specials
installation
speedy
speedy
power and serial port connections
drive-dedicated models, drive setup info
speedy
Ethernet networking, system setup
speedy
Get started with
Upgrade
savvy
savvyPanel
Comms Interfaces Modbus and EIP/PCCC
speedy
Option 06 winder control library
savvy
-
savvyPanel
®
drive.web
Free
drive.web
speedy, savvy, savvyPanel, smarty, Bardac and drive.web are trade marks of Bardac
Corporation, registered in the U.S. and other countries.
speedy
HG503206beta2
dw220, dw222, dw223,
dw225 & dw226
for firmware version 0x2019
®
savvy
engineering & design software 9 - 11
and speedy,
®
touch screen operator station
diagrammatic overview
product line highlights
online training seminars
savvy-SFD
www.driveweb.com
drive.web automation
®
upgrade
Page
2
3
3
4
4, 5
6, 7
7, 8
8
12
13, 14
15 - 17
17
18, 19
20
20
Page 1/20
Advertisement
Table of Contents
Related Manuals for Drive.web Speedy
Summary of Contents for Drive.web Speedy
- Page 1 18, 19 ® product line highlights drive.web Free drive.web online training seminars speedy, savvy, savvyPanel, smarty, Bardac and drive.web are trade marks of Bardac Corporation, registered in the U.S. and other countries. speedy HG503206beta2 www.driveweb.com Page 1/20...
- Page 2 Special care must be taken after loading speedy new firmware or installing new options. Warning! Avoid permanent damage to your speedy, never exceed any min or max values. Do not connect any terminal to mains circuits. See page 8 for IO ratings.
-
Page 3: Product Identification
Please see pages 9 to 12. To find the speedy‘s firmware version, launch savvy, choose Get Detailed Info from the speedy contextual menu. See pages 11, 12. dw220 generic ModbusRTU master up to 500kbps. -
Page 4: Installation
Specials speedy Generic engineered solutions include required options (in parentheses), system configuration and wiring diagram. Contact us for many other engineered solutions. Options may be added. -1101 Open-loop Constant Tension Center Winder (05, 06) -1102 Closed-loop Dancer Control Center Winder (05, 06) - Page 5 Installation speedy continued... Weight: Standard-19g(0.7oz). w/ DIN rail & terminals - 28g(1.0oz) Power requirements: Regulated 24VDC ±10%, 40mA. Do not connect to a distributed DC power network. Serial port EIA485(RS485) 0.1 to 500Kbps. Unisolated, power and serial circuits must have compatible common-mode Voltages.
-
Page 6: Power And Serial Connections
15”, 24AWG, 0V, C solid-wire connections. 0V 24V with DIN rail mount option. Single, local device connections. 0V , C dw225 standard 15”, 24AWG, 0V, C solid-wire connections. Wire terminal name... -
Page 7: Drive Setup
Name EIA485 name Modbus name Description A or Data Inverting Pin B or Data + Non-Inverting Pin SC or Data 0V Common Common Reference A and B must share a single twisted-pair. C may use one or both conductors in another pair. - Page 8 Set up Your Computer - Get savvy With free drive.web savvy software, easily program and monitor your speedy, perform data trending and create distributed control systems. To download the latest version of savvy go to www.driveweb.com and click on Get savvy.
- Page 10 Get started with savvy continued... Device Directory window, select File > Administrate > Set IP Addresses for System. The serial number marked on is its MAC Address. Enter a unique IP your speedy address within your computer’s subnetwork, click OK.
- Page 11 Get started with contextual menu continued... savvy speedy Find Parameter... Enter parameter number, name or partial name to view it. Unlock, Lock, Set Password. The speedy at right is locked to Restrict Modification. Viewing configuration below it is locked to Restrict All is possible.
- Page 12 Add button. Click Apply. Signal Flow Diagram Upgrade savvy-SFD With savvy-SFD, build systems graphically while creating live drawings that are stored in your speedy. Set borders with user attributes, drag and drop connections, zoom, pan, cross-reference and annotate multi-page drawings.
-
Page 13: Operator Station
Operator Station savvyPanel Computers, Apple® mobile digital devices; iPad®, iPhone® & iPod Touch® are operator touch stations with savvyPanel. Requires Windows(XP, Vista, 7), Mac OSX, Linux(Solaris, Umbuntu, etc) or iOS. Operator station data is located in the devices so setup is easy. - Page 14 Three Tile Types savvyPanel Parameter Tiles. Touch a settable parameter to see its savvyPanel setter. Includes; slider, keypad, 1x, 10x increment, default & revert. A parameter is settable if it is not read-only and has no incoming drive.web connection.
- Page 15 Comms Interfaces-Modbus & EIP/PCCC speedy Warning! Use of speedy comms interfaces, ModbusTCP, ModbusRTU and EIP/PCCC, may cause motors and machinery to power up with high Voltages or start or operate in an unexpected, dangerous or lethal way. It is essential that you are completely familiar...
- Page 16 0x1F or 31. Bus-sharing Modbus servers must use different addresses. Comms Port function block Comms Speed Read-only for drive-dedicated speedy’s. dw220, choose standard speeds are enter baud rate 0.1 to 500Kbps. Comms Configuration Read-only in dedicated speedy’s. Character frame is 1-8-Parity-Stop: Parity is N None, O Odd, E Even, S Space(0) or M Mark(1).
- Page 17 ModbusRTU Master - Comms Port function block continued Status. Any Last Error in Modbus Data blocks. Click to Reset all. Enable. Globally enable and disable all Modbus Data blocks. Modbus Data blocks, Boolean, INT16, UINT16 Define the data point, register, discrete or coil and the slave or server device.
- Page 18 Device Group Device savvyPanel System Name Example Device Directory Discover devices when savvy launches or by using the Directory menu. Discover by; group, savvyPanel system, Discovery file or all local devices automatically or by request. Navigate...
- Page 19 Systems Page View all available savvyPanel systems. Assign savvyPanel savvyPanel system in Systems each device’s contextual menu, one per device. If a savvyPanel password is set in the device, it must also be added in savvyPanel...
-
Page 20: Training Courses
Drive-dedicated smarty speedy models are available with complete, one-cable drive interfaces. Supported Drive smarty Model speedy Model dw210 dw220 Generic dw21 1 dw221 PL/X Digital DC Drive dw214 dw224 Optidrive P2 dw213 dw223 Optidrive Plus...
