Para Mobility IBIS Manual

IBIS
®
Wheelchair
to Car Access
- Bracket

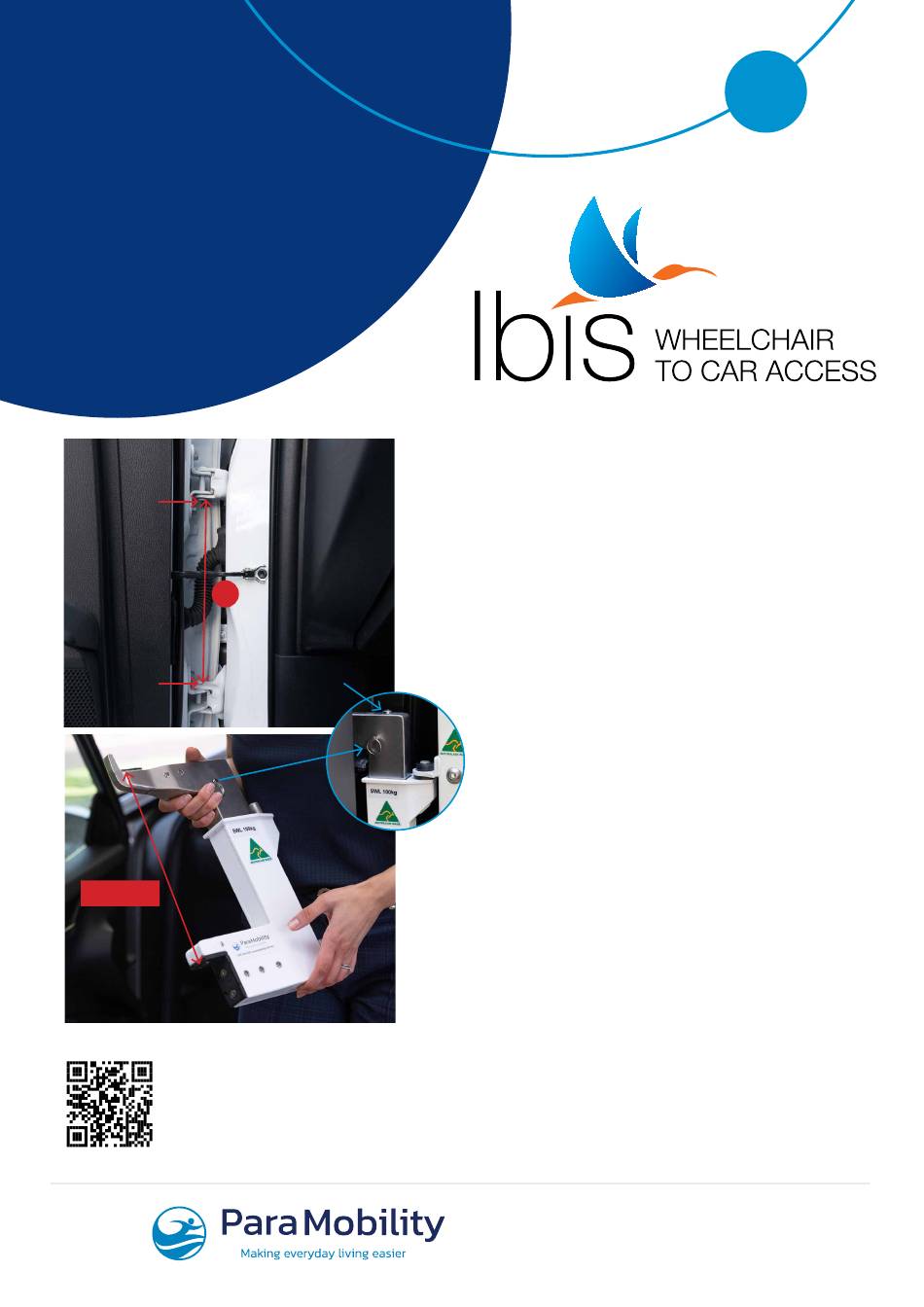

Initial Fitting
Instructions
BOTTOM
OF TOP
HINGE
A
TOP OF
BOTTOM
HINGE
LOCKING PIN
A - 20mm
SCAN TO VISIT OUR USER HUB
WITH 3D ANIMATION AND
VIDEO GUIDES
TOP ROUND
HEAD HEIGHT
ADJUSTMENT
BOLT
BRACKET INITIAL FITTING STEPS
Once you complete these steps customising the
door hinge bracket to suit your vehicle, refer to the
User Guide for connecting up the rest of the IBIS
parts ready to use.
STEP 1 Measure gap between bottom (underside)
of top car door hinge to the top of bottom car door
hinge (A).
STEP 2
Remove the locking pin.
STEP 3
Rotate top round head bolt anti-
clockwise using Allen key provided so the height
is approximately 20mm less than measurement
obtained in step 1 (A - 20mm). Tip: It is easier to do
most of the lengthening while bracket is on bench.
STEP 4
Insert bracket between car door hinges –
ensure bracket rests on the lower car door hinge.
STEP 5 Rotate top round head height adjustment
bolt anti-clockwise using supplied Allen key to raise
top hook – raise top hook so it fits behind car door
top hinge and hook arm contacts the top hinge.
STEP 6
Rotate top round head height adjustment
bolt clockwise 3 turns to slightly loosen (enables
easier bracket installation).
STEP 7
Re-insert locking pin.
STEP 8
Buffers (supplied) can be used on both the
top and bottom of IBIS Car Bracket to stop sideways
movement or to protect the car's paintwork
(optional). Screw buffer thread directly into desired
position of bracket and tighten small nut against
bracket to lock in place.
The car bracket is now set, ready to be used.
