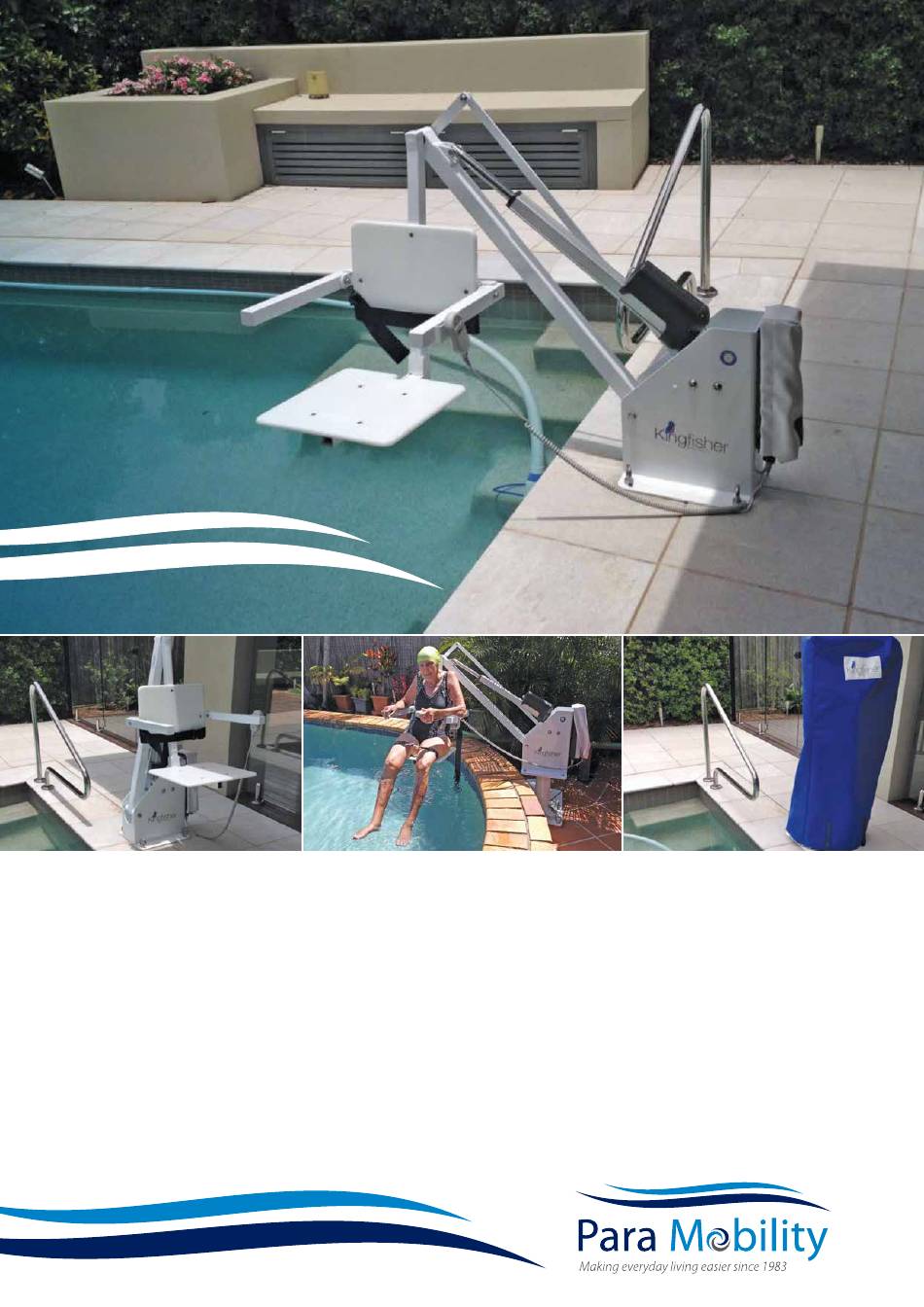

KINGFISHER
POOL HOIST
Independence and access to the water! Compact and adaptable.
The Kingfisher Pool Hoist, designed and manufactured in Australia by Para Mobility, will allow access to a
pool where traditional methods are not able to be used. Designed in close consultation with Occupational
Therapists and other industry professionals, the Kingfisher Pool Hoist is a simple and safe operation that is
both comfortable and dignified. The Kingfisher is ideal for home pools, retirement villages and hotels etc.
It is user-operated and secured to the pool deck easily. A trolley is also available which allows it to be easily
moved between locations and/or storage. Manufactured to Australian Standard — AS3581.
The Kingfisher Pool Hoist has a Safe Working Load (SWL) of 150kg, rechargeable Linak 24v battery, floating
hand control, load bearing lift-up arm rests for ease of transfer, removable and adjustable foot rest, flip
up seat for storage, wheel away transport trolley option for storage, lap belt for safety, left or right side
mounting, extra heavy duty Linak Actuator with emergency lifting.
Advertisement
Related Manuals for Para Mobility KINGFISHER
Summary of Contents for Para Mobility KINGFISHER
- Page 1 Independence and access to the water! Compact and adaptable. The Kingfisher Pool Hoist, designed and manufactured in Australia by Para Mobility, will allow access to a pool where traditional methods are not able to be used. Designed in close consultation with Occupational Therapists and other industry professionals, the Kingfisher Pool Hoist is a simple and safe operation that is both comfortable and dignified.
- Page 2 KINGFISHER POOL HOIST PRODUCT SNAPSHOT SPECIFICATIONS STANDARD INCLUSIONS MATERIALS • Lifting Capacity: SWL 150kg • Base Plate: • Lift up arm rests 316g Stainless Steel • Weight of Hoist: • 24v Battery 48kg (without the battery) • Lifting Frame: •...
- Page 3 CONCRETE PAD REQUIREMENT IMPORTANT: To safely install the Kingfisher Pool Hoist you will need a solid concrete pad to anchor it to. CONCRETE PAD INSTALLATION We recommend that approximately 1/3 of cubic metres of concrete is used when pouring your pad.
- Page 4 C =....mm D= ....mm D =....mm Minimum of 400mm required For hoist base Customer name................Pool Deck Pool name..................Contact name........Ph........A = ....mm Grate B = ....mm C = ....mm PARA MOBILITY- Pool deck measuring guide Kingfisher Nov 2014 JW...
- Page 5 If you obtained a footrest, lift the seat and remove the wing nut from tubing. Place the • footrest into the tubing and hand tighten the wing nut prior to use. Removing the Hoist Wash the Kingfisher with clean water (not chlorinated) prior to packing away. • Remove the battery and place it on charge. •...
- Page 6 Lifting Arm Floating Hand Control and holder Weight bearing, fold up armrests Fold up seat and footrest holder Battery Emergency stop button...
- Page 7 < /DWKZd Ed W &...
- Page 8 E d...
- Page 9 Check to ensure it remains plugged into the bottom of the control box. It must never be removed from the control box unless instructed by Para Mobility or your distributor. When storing you pool hoist,...
-
Page 10: Battery Care
Battery Care The battery is ok, no need for charging. Battery needs charging. Battery needs charging. Buzzer sound is provided when a button is pressed at this battery stage. How to use the lowering/lifting function on the control box (Emergency USE) On the control box there are either buttons or holes. - Page 11 < Fold up the Kingfisher Pool Hoist and put on the cover if needed. Place the Kingfisher Pool Hoist on the trolley with the seat facing outwards. Place the straps around the hoist to secure it in place and move as required.
