Summary of Contents for AVIRE MEMCO Panachrome+ Universal Controller
- Page 1 Connecting and protecting people Installation Guide Panachrome+ Universal Controller G852 855ML GB...

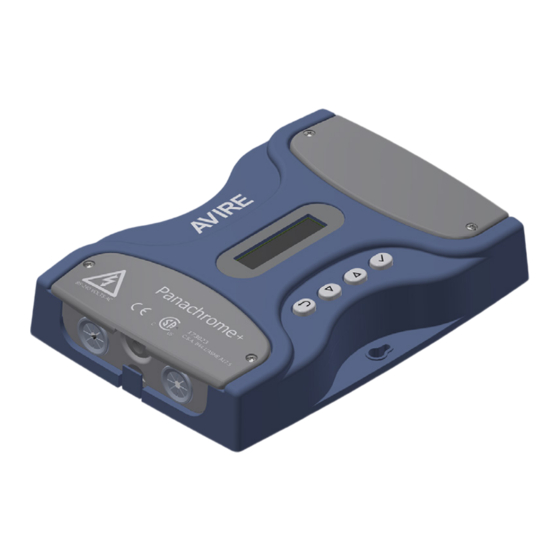

- Page 2 The Panachrome+ Controller (G3852 base model) is a revised Panachrome+ Controller (base model G3851) with added remote (Over-The-Air) firmware update feature when combined with an Avire DCP (Lift Digital Communication Platform). The mechanical footprint and electrical interfaces are the same for both (G3851 and G3852) models.
-
Page 3: Installation
1. Connections Covers To access the connections on the Controller it is necessary to remove the end covers protecting the terminals. The Right Hand Cover conceals the terminals for connecting the external speaker and detector sockets. The Left Hand Cover is for the power, relays and external door signals (see Figs 1 and 2). 2. - Page 4 Power, relays and external door signals Fig 3: Installation Terminal No. Function Comments Earth Neutral 85 to 240VAC if powered via AC (for DC use 17 & 18) Live Relay 1 for door operator 250VAC, 24VDC at 5A N/C 1 COM 1 N/O 1 Relay 2...
- Page 5 Panachrome+ can connect to an Avire DCP using CANBus wiring The Avire hub allows remote configuration of the system, and monitoring of fault events. G3852 000 allows remote firmware updates using the AVIRE Hub. Optional DCP Connection - CANBus Wiring :...
- Page 6 3. External Signals Wiring Examples Door closing Door opening Common can be joined together at signal and signal and Panachrome+ Controller common (0V) common (0V) Door closing Door opening signal and signal common (0V) O O O O O O O O Spare contact 12 - 230VAC or DC supply on door close...
-
Page 7: Menu Navigation
4. Menu Navigation Panachrome+ settings can be changed by using the 4-button keypad and screen. Terminal No. Function Go back/cancel ▼ Menu and value down ▲ Menu and value up Menu item select and confirm To enter the settings menu first press ▼. Press ▲... -
Page 8: Reset To Default Factory Settings
Note that the LCD display is used to indicate the Panachrome+ Detector profile. As an example, if a G3510 detector model is configured then the LCD display top line would show the following. Above, the “10S” indicates that the controller is configured for use with a 10mm profile Panachrome+ Detector operating in standard “S”... - Page 9 5. Menu Navigation Language English Language Selection French German Italian Spanish Japanese Quick Config G35xx Quick Configurator for Product Versions Select G35xx if you have a G3510/G3520/G3540 2D/3D detector. G25xx Select G25xx if you have a G2510/G2520/G2540 2D (only) detector. If you have a Smart 3D device, ensure it is plugged in so that it can be auto- detected and enabled for use before selecting the above Quick Config options.
- Page 10 Smrt3D Enable Turns Off Smart 3D sensor Turns On Smart 3D sensor Smrt3D LF Distance Sets the door separation distance (in) at which the Radar detection area is switched from high to low. The default is set to 23.62”. Each increment change is 0.4"...
- Page 11 Speech Speech Output OFF Speech Output ON Speech Volume Speech volume (0 to 9). Note: 0 volume is the lowest setting and not equivalent to OFF Speaker Internal Enable internal speaker External Enable external and disable internal speaker Speech Language English Defaulted to the same as menu language French...
- Page 12 Display a serial number for this unit. This is a unique, electronically generated, 12 digit alphanumeric sequence. Shaft No. Shaft number must match with shaft number on the Avire HUB – default 1. Node No. Node address in lift car. There can be up to 4 nodes in each car. Default address is 72.
- Page 13 Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. AVIRE LTD Unit 2, The Switchback 01628 540100 Gardner Road 01628 621947 Maidenhead sales.uk@avire-global.com Berkshire www.avire-global.com MEMCO is a brand of AVIRE SL6 7RJ, UK...
