Instructions – Parts List
Parts
Dispense Consoles
For storage (or hanging) of dispense valves where product is piped from
beneath the floor.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Model 222629, Series D
six-unit dispense console
Model 223448, Series D
four-unit dispense console
Model 222645, Series D
single-unit dispense console
Use to expand four- or six-unit consoles.
Patent No. 4,884,592
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1988, Graco Inc. is registered to I.S. EN ISO 9001
06694
307953 rev.L

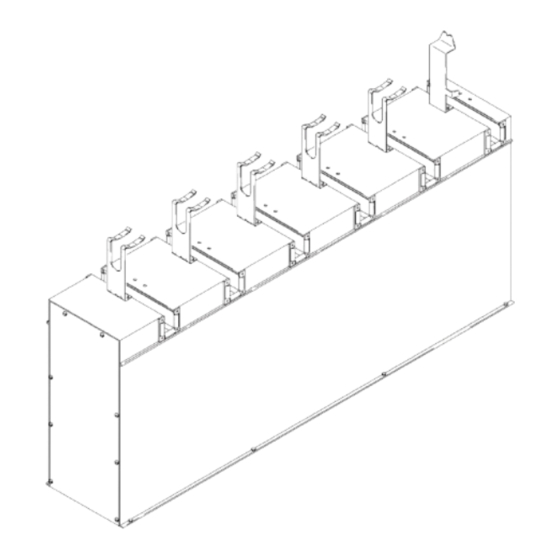

Model 222629 shown
