Canon SS-41-IASD Operation Manual

Lens Accessory
Studio Conversion Kit
SS-41-IASD
Operation Manual BT1-B091-B
(1) Read "GENERAL SAFETY INFORMATION" (back side) before using the product.
The safety cautions must be observed.
(2) Read operation manual (this sheet) before using the product. Keep the manual in
place for future reference.
Thank you for purchasing a studio conversion kit <SS-41-IASD>.

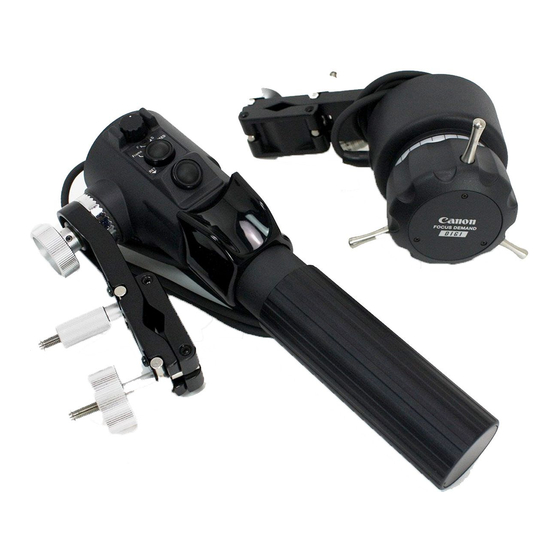

The studio conversion kit <SS-41-IASD> supplies all the accessories necessary to
convert cameras mounted with digital drive unit loading lens into "rear view" TV cameras
that can be mounted on a tripod.
When using the lens of analog drive unit loading, a conversion cable <ZSD-
300D:CC-0820/FPD-400D:CC-0620> is needed separately. In that case, a part of the
function is restricted.
