Kohler AWAKEN R72415T Installation Instructions

INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. The highest working pressure for spray is 0.5MPa(5 bar). If it exceeds 0.5MPa(5 bar), a pressure reducer is
needed. The highest water and environment temperature is 60°C. Please keep handspray, shower head and the
shower arm away from heater, or it may become damaged and cause injury to the user.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
G1/2˝
INSTALLATION
Flush both water supply
installed.
Install check valve(2) into the shower inlet if needed. Put the screen washer(3)
into the shower hose(4) connector. Attach the hand shower to shower hose.
Note: Don't over tighten.
Connect another end of shower hose to the water supply.
1196636-2A-A

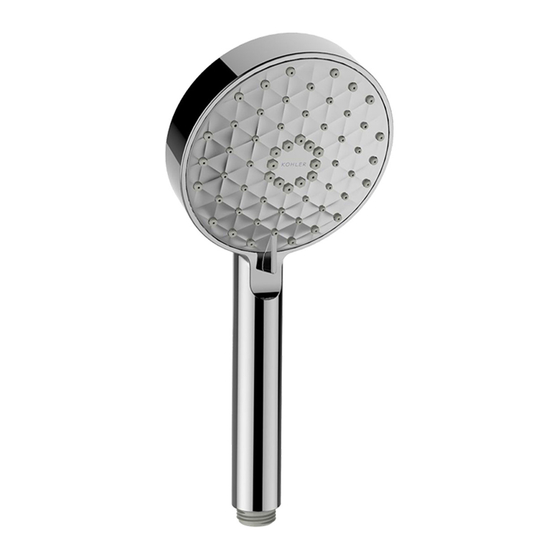

R72415T Multi Function Hand Shower-Geometric
R72421T Multi Function Hand Shower-Organic
Ø110
R72415T
for about one minute before the hand shower(1) is
Ø116
G1/2˝
R72421T
4
AWAKEN
1
2
3
1
