  • Page 1 User reference guide Daikin room air conditioner FTXM60A2V1B FTXM71A2V1B...

  • Page 2: Table Of Contents

    The clock setting................................5.4.1 To set the clock .............................. Brightness of the Daikin eye............................5.5.1 To set the brightness of the Daikin eye......................To turn on the power supply............................6 Operation Operation range ................................When to use which feature............................Operation mode and temperature setpoint........................
  • Page 3 ONECTA app ....................... 9.1.13 Symptom: In ONECTA app, powerful operation is NOT indicated as active..........Solving problems based on error codes ........................Troubleshooting for wireless LAN connection....................... 10 Disposal 11 Glossary FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 4: About The Documentation

    User reference guide: Detailed step-by-step instructions and background information for basic and advanced usage Format: Digital files on https://www.daikin.eu. Use the search function find your model. Latest revisions of the supplied documentation may be available on the regional Daikin website or via your installer.

  • Page 5: General Safety Precautions

    Indicates a situation that could result in minor or moderate injury. NOTICE Indicates a situation that could result in equipment or property damage. INFORMATION Indicates useful tips or additional information. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 6 Example: " 1–3 Figure title" means "Figure 3 in chapter 1". Indicates a table title or a reference to it. Example: " 1–3 Table title" means "Table 3 in chapter 1". FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 7: User Safety Instructions

    Do NOT place any objects containing water on the unit. CAUTION ▪ Do NOT place any objects or equipment on top of the unit. ▪ Do NOT sit, climb or stand on the unit. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 8: Instructions For Safe Operation

    10 cm. CAUTION Do NOT insert fingers, rods or other objects into the air inlet or outlet. When the fan is rotating at high speed, it will cause injury. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 9 CAUTION Do NOT operate the system when using a room fumigation-type insecticide. Chemicals could collect in the unit, and endanger the health of people who are hypersensitive to chemicals. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 10 If damaged, the unit may fall and result in injury. CAUTION Do NOT touch the heat exchanger fins. These fins are sharp and could result in cutting injuries. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 11 Contact your dealer. WARNING If the supply cord is damaged, it MUST be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 12: About The System

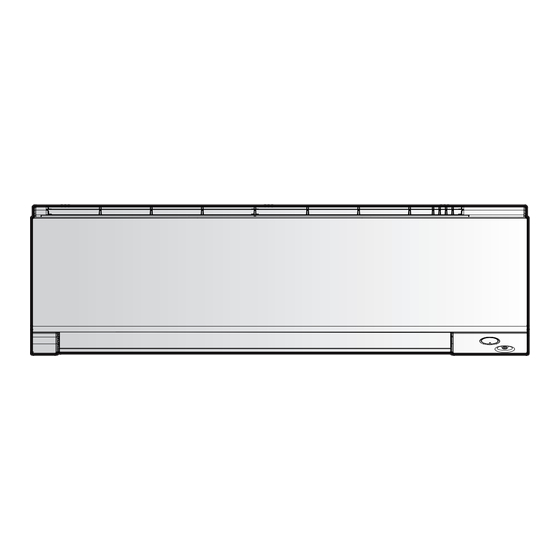

    INFORMATION The following figures are just examples and may NOT completely match your system layout. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 13: Daikin Eye Indication Lamp

    Air outlet c Front panel d Service cover e ON/OFF button, Daikin eye and timer lamp, Intelligent eye lamp f Intelligent eye sensor g Inlet for room temperature sensor h Titanium apatite deodorising filter and silver allergen removal air purifying filter...

  • Page 14: About The User Interface

    Timer operation Orange When the OFF/ON timer or Weekly timer operation is set, the Daikin eye periodically changes to orange. After lighting orange for about 10 seconds, it returns to the colour of the operation mode for 3 minutes. Example: When the timer is set during cooling operation, the Daikin eye will periodically light orange for 10 seconds, and then switch to...

  • Page 15: Components: Wireless Remote Control

    Fan button 4.2.2 Status: Wireless remote control LCD Icon Description Operation is active Operation mode = Automatic Operation mode = Drying Operation mode = Heating Operation mode = Cooling FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 16 Automatic horizontal swing is active Flash Streamer (air cleaning) is active ON timer is active OFF timer is active Weekly timer is active Day of the week Current time FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 17: To Operate The Wireless Remote Control

    Result: When the indoor unit receives a signal from the wireless remote control, you will hear a sound: Sound Description Beep-beep Operation starts. Beep Setting changes. Long beep Operation stops. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 18: Before Operation

    ▪ Inserting the batteries in the wireless remote control. ▪ Fixing the wireless remote control to the wall. ▪ Setting the brightness of the Daikin eye lamp. ▪ Setting the clock. ▪ Turning on the power supply. 5.2 To insert the batteries The batteries will last for about 1 year.

  • Page 19: To Mount The Wireless Remote Control Holder

    Result: and blink 2 Press to set the current day of the week. Display Day of the week Monday Tuesday Wednesday Thursday Friday Saturday Sunday 3 Press Result: blinks. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 20: Brightness Of The Daikin Eye

    Result: Setting is complete. blinks. 5.5 Brightness of the Daikin eye You can set the brightness of the Daikin eye on the indoor unit to high, low or turn it OFF. 5.5.1 To set the brightness of the Daikin eye 1 Keep pressed for at least 2 ...

  • Page 21: Operation

    A safety device might stop the operation of the system if the unit runs outside its operation range. Condensation and water dripping might occur if the unit runs outside its operation range. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 22: When To Use Which Feature

    To automatically turn ON or OFF the system. ON timer + OFF timer To automatically turn ON or OFF the system on Weekly timer a weekly basis. Additional features FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 23: Operation Mode And Temperature Setpoint

    In that case, the system automatically switches to defrosting operation to remove the frost. During defrosting operation, hot air is NOT blown from the indoor unit. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 24: To Start/Stop Operation Mode And To Set The Temperature

    ▪ When using drying operation mode, you CANNOT adjust the airflow rate setting. 6.4.1 To adjust the airflow rate 1 Press to change the airflow setting as follows: FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 25: Airflow Direction

    LCD. The flaps (horizontal blades) will begin to swing. 2 To use fixed position, press when the flaps reach the desired position. Result: disappears from the LCD. The flaps will stop moving. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 26: To Adjust Horizontal Airflow Direction

    The system detects movement in the room and automatically adjusts the airflow direction and temperature in order to avoid direct contact with people. If no movement is detected for 20  minutes, the system switches to energy saving operation: FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 27: To Start/Stop Comfort And Intelligent Eye Operation

    Note: If there are people close to the front of the indoor unit or there are too many people, use both operations at the same time. 2 To stop operation, press until both symbols disappear from the LCD. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 28: Powerful Operation

    This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 29: Outdoor Unit Quiet Operation

    Result: The setting will change as follows. Display Operation Econo Outdoor unit quiet Econo and Outdoor unit quiet — Both deactivated 2 To stop operation, press until both symbols disappear from the LCD. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 30: Flash Streamer (Air Cleaning) Operation

    INFORMATION Program the timer again in case of: ▪ A breaker has turned the unit off. ▪ A power failure. ▪ After replacing batteries in the wireless remote control. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 31: Hour Clock Off/On Timer Setting

    3 Press again. Result: and the set time are displayed on the LCD. The Daikin eye lights orange. INFORMATION Each time is pressed, the time setting advances by 10 minutes. Holding the button down will change the setting rapidly.

  • Page 32: Hour Countdown Off/On Timer Setting

    Result: and/or and the set time are displayed on the LCD. The Daikin eye lights orange. The time displayed on the LCD will automatically count down by 1 hour for every hour that passes. Example: If the OFF timer is set to 3  hours, the displayed time will change as follows: 3hr →...

  • Page 33: Weekly Timer Operation

    Note: Be sure to aim the wireless remote control at the indoor unit and check for a receiving tone when setting the Weekly timer operation. INFORMATION The clock MUST be set correctly before using any timer functions. Refer to "5.4.1 To set the clock" [  19]. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 34: To Set Weekly Timer Operation

    Result: The time is set and and the temperature blink. Note: Press to return to the previous screen. If OFF timer is selected, continue to step 9. 8 Press to select the desired temperature. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 35: To Copy Reservations

    Result: The reservation of the selected day of the week will be copied. 4 Press to select the destination day. 5 Press Result: The whole reservation is copied to the selected day and the Daikin eye lights orange. Note: To copy to another day, repeat the procedure. 6 Press to complete the setting.

  • Page 36: To Confirm Reservations

    1 To deactivate the Weekly timer, press while is displayed on the LCD. Result: disappears from the LCD and the Daikin eye stops lighting orange. 2 To reactivate the Weekly timer, press again. Result: The last set reservation mode will be used. 6.11.5 To delete reservations To delete individual reservations Use this function if you want to delete a single reservation setting.

  • Page 37: Wireless Lan Connection

    Medical equipment. E.g. persons using cardiac pacemakers or defibrillators. This product may cause electromagnetic interference. ▪ Auto-control equipment. E.g. automatic doors or fire alarm equipment. This product may cause faulty behaviour of the equipment. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 38: To Install The Onecta App

    To confirm the wireless LAN connection status 1 On home screen menu, press and hold for at least 5 seconds while the unit is not operating. Result: The SP (wireless connection setting menu) appears. is blinking. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 39 Operation (5 sec.) 2 Press to confirm the selection. Result: is blinking. 3 Check the Daikin eye. a Daikin eye b Partly green c Red, orange or blue Daikin eye colour alternates between …then wireless adapter is… partly green and…...
  • Page 40 2× (5 sec.) 3 Press to confirm the selection. Result: is blinking. The Daikin eye colour alternates between red and partly green. 4 Open the ONECTA application on your smart device and follow the steps on the screen. Result: If the connection was successful, the Daikin eye colour alternates between blue and partly green.

  • Page 41: About Multi System

    When more than 1 indoor unit is operating, priority is given to the first unit that was turned on. Set other units to the same operation mode. Otherwise, they will enter the standby mode, and the Daikin eye will flash (does NOT indicate malfunction).
  • Page 42 Exceptions: If the first unit that was turned on is set to fan only, and then in the other room heating mode is set, priority will be given to the unit set to the heating mode. The first unit will go in standby and the Daikin eye will flash. INFORMATION ▪...

  • Page 43: Night Quiet Mode

    Activate this function if you wish to set all indoor units connected in a Multi-system to 1 operation mode. INFORMATION The Cooling/heating mode lock CANNOT be activated together with the priority room setting. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 44: Energy Saving And Optimum Operation

    Adjust the air flow direction to avoid cool air from gathering on the floor or warm air against the ceiling. (Up during cooling or dry operation to the ceiling and down during heating operation.) FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 45 Energy saving and optimum operation ▪ Avoid direct air flow to room inhabitants. ▪ Operate the system within the recommended temperature range (26~28°C for cooling and 20~24°C for heating) to save energy. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 46: Maintenance And Service

    DANGER: RISK OF ELECTROCUTION To clean the air conditioner or air filter, be sure to stop operation and turn all power supplies OFF. Otherwise, an electrical shock and injury may result. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 47: To Clean The Indoor Unit And Wireless Remote Control

    Contact your dealer. 1 Clean with a soft cloth. If it is difficult to remove stains, use water or a neutral detergent. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 48: To Clean The Front Panel

    CANNOT deodorise the air, ▪ CANNOT clean the air, ▪ poor heating/cooling, ▪ causes odour. List of treated articles used in Daikin products based on Regulation (EU) No 528/2012 Treated article ofa biocidal product Air resin filter Active substance Silver phosphate glass Content <0,02 %...

  • Page 49: To Clean The Air Filters

    Maintenance and service List of treated articles used in Daikin products based on Regulation (EU) No 528/2012 Safety Information RoHS compliant, non-toxic or corrosive. There are no specific PPE recommendations. Disposal shall comply with government and legal regulations governing the disposal of material.

  • Page 50: To Clean The Titanium Apatite Deodorising Filter And The Silver Particle Filter (Ag-Ion Filter)

    2 Remove the dust from the filter with a vacuum cleaner. 3 Soak the filter for 10 to 15 minutes in warm water. Note: Do NOT remove the filter from the frame. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 51: To Replace The Titanium Apatite Deodorising Filter And The Silver Particle Filter (Ag-Ion Filter)

    2 Close the front panel slowly; press at both sides and at the centre. 8.10 To take following items into account before a long idle period Operate the unit several hours in fan only mode to dry the inside of the unit. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...
  • Page 52 Maintenance costs shall be borne by the customer. In certain operating conditions the inside of the unit may get dirty after several seasons of use. This results in poor performance. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 53: Troubleshooting

    Stop operation. The operation switch does NOT function Turn OFF the power supply. properly. The Daikin eye flashes and you can check the Notify your installer and report error code by the wireless remote control. To the error code. display the error code, see "9.2 Solving...
  • Page 54 Check if your system is NOT heating only version. be selected. An abnormal function The air conditioner may malfunction because of happens during operation. lightning or radio waves. Turn the breaker OFF and back ON. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 55: Symptoms That Are Not System Malfunctions

    This sound is generated by the refrigerant flowing during defrost operation. 9.1.5 Symptom: A clicking sound during operation or idle time is heard This sound is generated when the refrigerant control valves or electrical parts operate. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 56: Symptom: A Clapping Sound Is Heard

    When the powerful operation is activated while indoor unit is OFF, the powerful operation may not be displayed as active for 2  minutes until the cloud data are updated. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 57: Solving Problems Based On Error Codes

    Indoor unit PCB abnormality Freeze-up protection or high-pressure control Fan motor (DC motor) abnormality Indoor heat exchanger thermistor abnormality Room temperature thermistor abnormality Outdoor unit Error code Description 4-way valve abnormality FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 58: Troubleshooting For Wireless Lan Connection

    FAQ. Problem Measure Connection to the wireless LAN is not ▪ Try operating the unit with the possible (Daikin eye is NOT blinking wireless remote control. during wireless LAN connection setting). ▪ Check if the power is on. ▪...
  • Page 59 ▪ Measured temperature for other appliances may differ due to different condition around the unit (e.g. direct sunlight, frost accumulation…) ▪ Temperature displayed in ONECTA is only referential. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 60: Disposal

    Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. FTXM60~71A2V1B User reference guide Daikin room air conditioner 4P518786-14M – 2024.01...

  • Page 61: Glossary

    Optional equipment Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation. Field supply Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation.
  • Page 64 4P518786-14M 2024.01...
