Product Overview

This section is designed to help you become familiar with the structure, features,
and functions of the SecureSync 2400.
1.1

SecureSync Front Panel

The front panel of a SecureSync unit consists of:
The OLED information display is configurable using the front panel controls. The
micro USB serial interface and the front panel controls provide a means to con-
figure the unit's network settings and perform other functions without requiring
access to the Web UI.
SecureSync units with the SAASM GPS receiver option module installed also
have an encryption key fill connector and key zeroize pin switch on the left-hand
side of the front panel.
Figure 1-1:
1.1.1

Front Panel Keypad, and Display

To simplify operation and to allow local access to SecureSync, a keypad and an
OLED information display menu are provided on the front panel of the unit.
SecureSync 2400 Getting Started Guide Rev. 5
an LED time display
seven illuminated status LED
a front panel control
an OLED information display
micro-B USB serial console
intake for temperature-controlled cooling

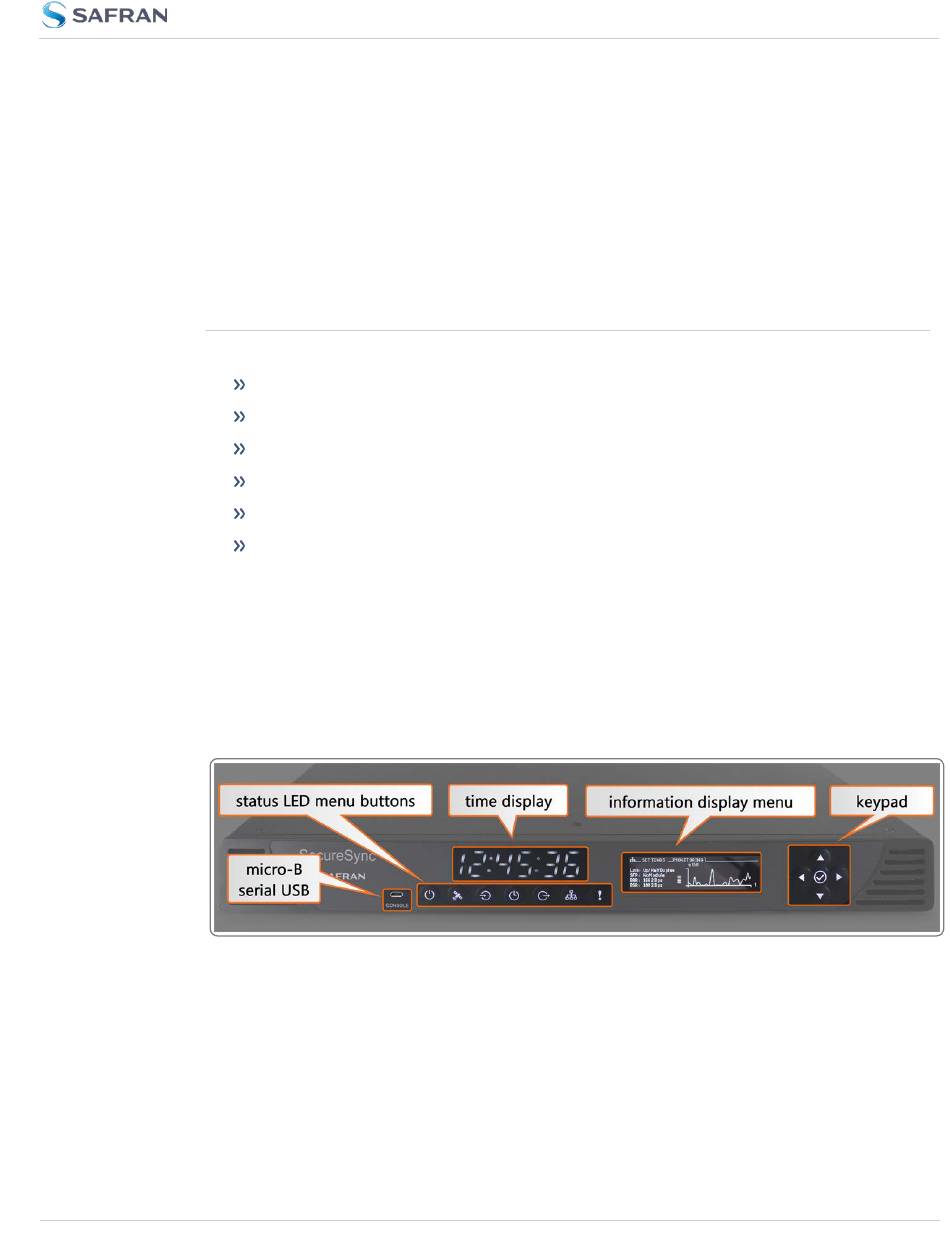

SecureSync front panel layout
menu buttons
keypad
menu
1.1 SecureSync Front Panel
fans
