8969814COM

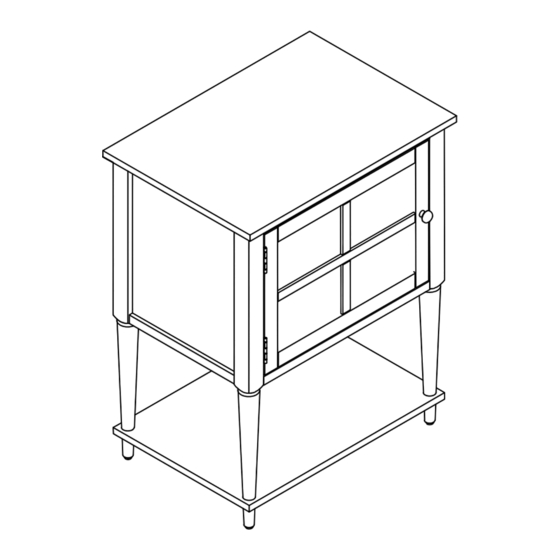

Fairmont Accent Table
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
You
Tube
B348969814COM0NN
Tough
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ameriwood HOME 8969814COM
Summary of Contents for Ameriwood HOME 8969814COM
- Page 1 Easy Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. - Put heavy items on lower shelves or drawers.
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting. -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size TOP TABLE LEFT SIDE PANEL RIGHT SIDE PANEL BOTTOM PANEL T8969814010NN T8969814020NN T8969814030NN T8969814040NN Qty: 1 PC Qty: 1 PC Qty: 1PC Qty: 1PC DOOR PANEL BOTTOM SHELF MOVING SHELF T8969814050NN T8969814060NN T8969814070NN Qty: 1 PC Qty: 1PC Qty: 1PC BACK FRAME... - Page 5 Board Identification Not actual size ameriwoodhome.com Tube...
-
Page 6: Part List
Hardware Bag Reference number: 28969814COM0NN Part List Actual Size 6 X 35 mm 4 x 20mm M8 x 30mm Ø15 x 11mm ×12 ×12 ×8 ×1 CAM BOLT CAM LOCK WOOD DOWEL BOLT FOR KNOB TNN0001 TNN0002 TNN0003 TNN0008 7 X 16 mm Ø3 x 15mm Ø3 x 12mm ×8... - Page 7 STEP 6 X 35 mm 8 X 30 mm 1.1 Insert (1) and (3) into (I) and (H)as illustrated. ameriwoodhome.com Tube...
- Page 8 STEP Quick Proper orientation of CAM LOCK 2.1 Attach (B) and (C) into (H) with (2) as illustrated. ameriwoodhome.com Tube...
- Page 9 STEP Quick Proper orientation of CAM LOCK 3.1 Attach (I) into (B) and (C) with (2) as illustrated. ameriwoodhome.com Tube...
- Page 10 STEP 4.1 Attach (F) and (J) into (H) and (I) as illustrated. ameriwoodhome.com Tube...
- Page 11 STEP 6 X 35 mm 5.1 Insert (1) into (A) as illustrated. ameriwoodhome.com Tube...
- Page 12 STEP Quick Proper orientation of CAM LOCK 6.1 Attach (A) into (B), (C) and (H) with (2) as illustrated. ameriwoodhome.com Tube...
- Page 13 STEP 3 X 15 mm 3 X 12 mm Step 7.1 Step 7.2 Note: This is reversible door. Step 7.3 7.1 Attach (E) into (I) with (5) as illustrated. 7.2 Insert (9) into (E) with (5) as illustrated. 7.3 Insert (9) into (E) with (6) as illustrated.
- Page 14 STEP 3 X 15 mm 3 X 12 mm Step 8.1 Step 8.2 Note: This is reversible door. Step 8.3 8.1 Attach (E) into (I) with (5) as illustrated. 8.2 Insert (9) into (E) with (5) as illustrated. 8.3 Insert (9) into (E) with (6) as illustrated.
- Page 15 STEP 4 X 20 mm 9.1 Attach (G) as illustrated. 9.2 Insert (7) into (B) and (C) as illustrated. 9.3 Attach (D) as illustrated. ameriwoodhome.com Tube...
- Page 16 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 25 bls/ 11 kgs Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Page 17 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
- Page 18 Visitez: ameriwoodhome.com Tube...
- Page 19 Taille actuelle Cadre avant (10) Page 8 Page 11 Page 13 Page 15 ameriwoodhome.com Tube...
- Page 20 Page 17 Merci ameriwoodhome.com Tube...
- Page 21 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 22 Español Página 4: Identificación de la Junta Página 6: Lista de No es la talla actual Tamaño real (A) Mesa de arriba (1) Perno de leva (B) Panel lateral izquierdo (2) Bloqueo de la leva (C) Panel lateral derecho (3) Taco de madera (D) Panel inferior (4) Perno para perilla (E) Panel de la puerta...
- Page 23 Visite el sitio web de su tienda local, califique su comprado y denos sus comentarios! Nos gustaría enviar un gran "Agradecimiento" a todos nuestros clientes por tomarse el tiempo de ensamblar este producto de Ameriwood Home, y por darnos sus valiosos comentarios. Gracias ameriwoodhome.com...
