Sealey AK446.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this
‰
equipment.
Familiarise yourself with the application and the limitations of the grease gun, as well as the potential hazards.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Keep the grease gun clean for best and safest performance.
9
Check moving parts alignment on a regular basis.
9
DO NOT use the grease gun for any purpose other than that it was designed for.
8
DO NOT operate the grease gun if any parts are damaged or missing, as this may cause failure and/or personal injury.
8
When not in use store in a safe, dry, childproof location.
9
WARNING! Always wear approved eye protection when operating the grease gun.
‰
2. INTRODUCTION
Die-cast pump head with air-bleed valve. 3-Way fill with cartridge, bulk or manual capability. Supplied with rigid delivery tube and push-
on hydraulic 4-jaw coupling. Accepts standard 400g cartridges.
3. SPECIFICATION
Model No:
Capacity:
Delivery per Stroke:
Delivery Pressure:
Nett Weight:
1 Coupler
2 Outlet Nozzle
3 Grease Loader Fitting
4 Handle
5 Barrel
6 Plunger Handle
4. OPERATION
WARNING! An empty grease cartridge or grease may be under pressure
‰
from the spring in the barrel, use caution when removing it.
4.1. GREASE GUN LOADING
4.1.1. Separate the gun head from the grease gun barrel (fig. 1).
4.2. CARTRIDGE LOADING
4.2.1. Withdraw the plunger rod fully
4.2.2. Remove plastic cap from end of grease gun cartridge, insert into barrel of grease gun.
4.2.3. Remove seal from grease gun cartridge and mount grease gun head back onto the barrel.
4.2.4. Depress the air vent valve on the top of the grease gun.
4.2.5. Release the plunger rod using its tab, force the rod out and in a few times to eject air trapped in the grease via the air vent valve. When
grease comes out of the valve, the air has been discharged.
4.2.6. Pump the grease gun handle until grease flows continuously. If it does not, depress the air vent valve again and use the plunger rod to
expel the trapped air.
© Jack Sealey Limited

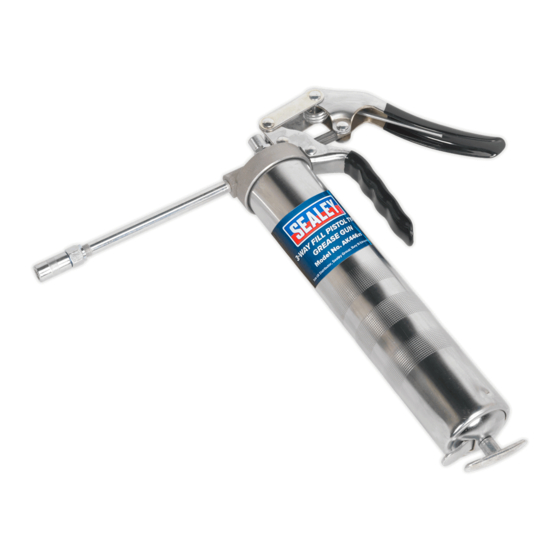

3-WAY FILL PISTOL GRIP GREASE GUN
MODEL NO:
Wear protective
gloves
AK446.V3
500cm³
1.25cm³
4500psi
1.09kg
Original Language Version
AK446.V3
1

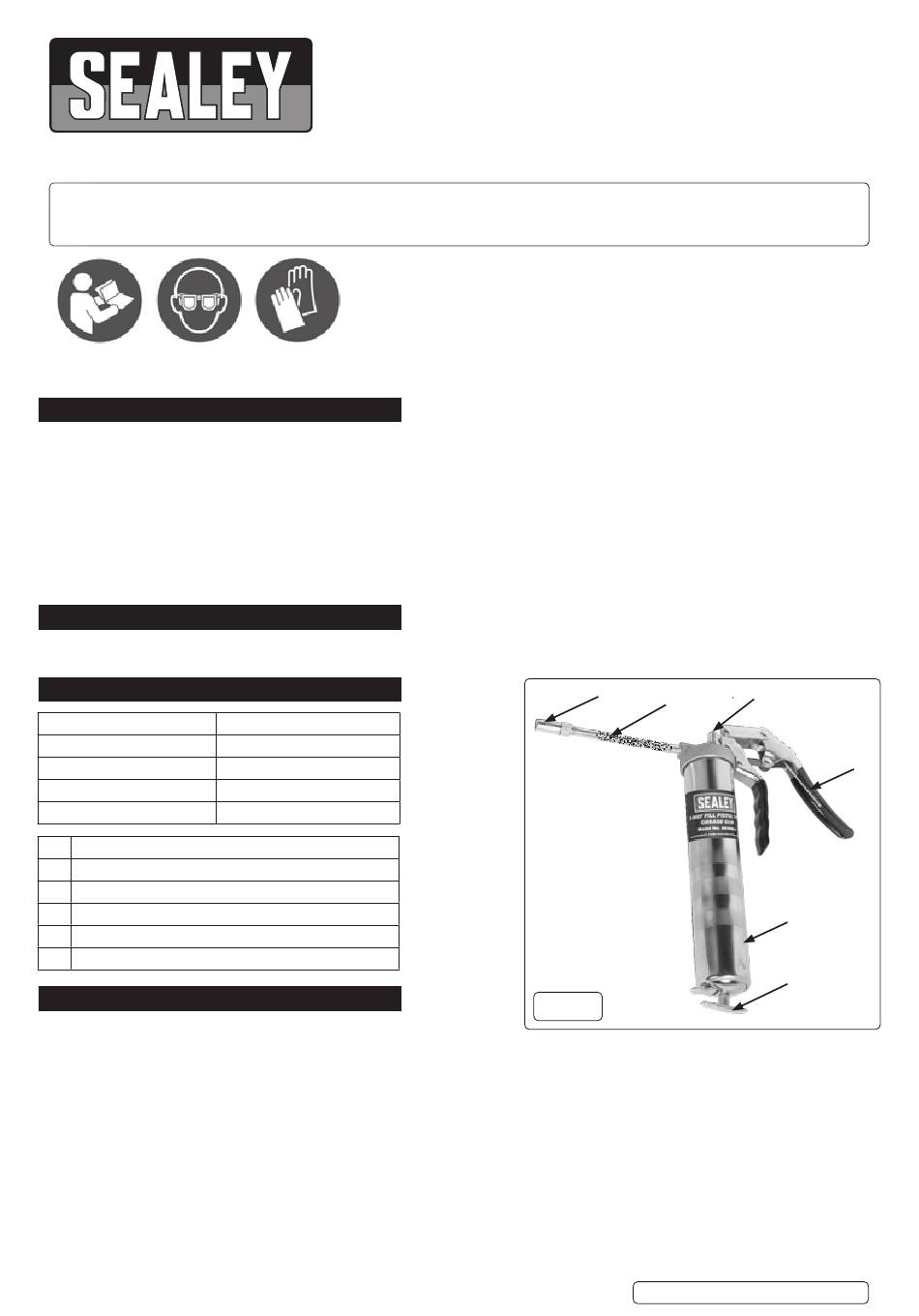

fig.1
2 3
5
6
AK446 Issue 1 14/05/24
4
