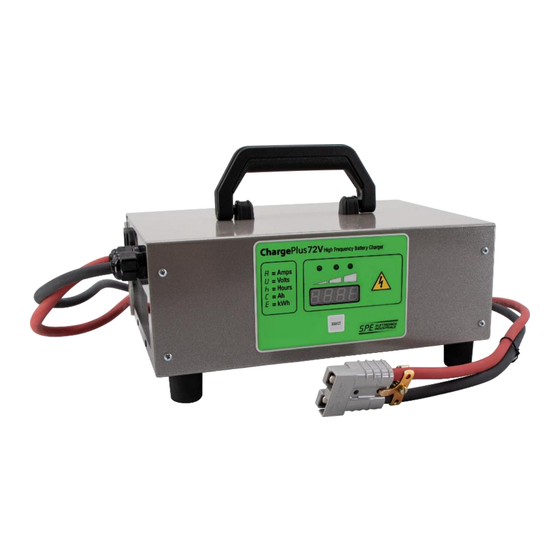

- Page 1 72V CHARGE PLUS User’s Manual High Frequency Battery Charger Important Safety, Installation and Operation Instructions Attention: Read the User’s manual carefully before using the battery charger.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS LOOK FOR THIS SYMBOL TO POINT OUT SAFETY PRECAUTIONS. IT MEANS: BE ALERT—YOUR SAFETY IS INVOLVED. IF YOU DO NOT FOLLOW THESE SAFETY INSTRUCTIONS, INJURY OR PROPERTY DAMAGE CAN OCCUR. 1. SAVE THESE INSTRUCTIONS – THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS. - Page 3 OTHER TYPE OF CHARGEABLE OR NON-RECHARGEABLE BATTERY; THESE BATTERIES MAY BURST, CAUSING PERSONAL INJURY AND DAMAGE. THIS CHARGER IS NOT INTENDED FOR USE BY PEOPLE (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
- Page 4 FAILURE TO INSTALL AND OPERATE THE CHARGER IN ACCORDANCE WITH THESE INSTRUCTIONS MAY IMPAIR THE PROTECTION PROVIDED BY THE CHARGER AND MAY VOID THE MANUFACTURERS WARRANTY. DO NOT INSTALL THE CHARGER IN A CLOSED-IN AREA OR RESTRICT VENTILATION IN ANY WAY. UNITS WITH FANS MUST HAVE AT LEAST 30 mm OR 1.25 INCHES OF CLEARANCE ON THE VENTED ENDS OF THE CHARGER.
- Page 5 GENERAL INFORMATION AND WARNINGS CHARGE PLUS IS AN ELECTRONIC, AUTOMATIC BATTERY CHARGER WITH A MICROPROCESSOR THAT IS SUITABLE FOR ANY BATTERY TYPE. THE CHARGER FEATURES AUTOMATIC CHARGING CYCLES WITH ELECTRONIC SETTINGS AND IS PROTECTED AGAINST OVERLOADS, SHORT-CIRCUITS AND REVERSED POLARITY. ...
- Page 6 ATTENTION: USE PROTECTIVE GLASSES AND GLOVES DURING BATTERY MAINTENANCE. BATTERY ACID CAUSES INJURIES. IN CASE OF CONTACT WITH BATTERY ACID, WASH THE AFFECTED PART WITH FRESH WATER AND CONSULT A DOCTOR IF NECESSARY. CHARGE PLUS Models CBHF1SM, CBHF1-V2, CBHF2 Page 6 of 12 USERS MANUAL...
- Page 7 FRONT PANEL OF BATTERY CHARGER CONTROLS 1. THE MAIN DISPLAY: THREE-DIGIT DISPLAY + SYMBOL. THE MAIN DISPLAY WILL SHOW THE FOLLOWING a. A = THE CHARGING CURRENT b. U = THE BATTERY VOLTAGE c. H = THE CHARGING TIME d. C = THE CHARGING AMPERE-HOURS(Ah) e.
-
Page 8: Charger Operation
4. YELLOW CONTROL INDICATOR: WHEN THIS LED IS LIT, THE FINAL PHASE OF THE CHARGING CYCLE HAS STARTED. 5. GREEN CONTROL INDICATOR: WHEN THIS LED IS LIT, THE CHARGING CYCLE HAS FINISHED. INTRODUCTION THE CHARGE PLUS BATTERY CHARGER IS A HIGH FREQUENCY, MICROPROCESSOR CONTROLLED CHARGER DESIGNED TO OPTIMIZE BOTH BATTERY CAPACITY AND OVERALL BATTERY LONGEVITY. - Page 9 ONCE THE CHARGE PLUS DISPLAYS THE NAME “SPE”, IT WILL SHOW THE FOLLOWING IN SEQUENCE. o SOFTWARE RELEASE/REVISION INSTALLED CHARGER. o BATTERY VOLTAGE. o CHARGING CURRENT (AMPS). o CHARGING CURVE NUMBER. o FINALLY THE WORDS “GEL” OR “Acd” WILL BE DISPLAYED DEPENDING ON THE SETUP OF THE CHARGER MAKE SURE THAT THE BATTERY TYPE BEING ...
-
Page 10: Faults And Troubleshooting
FAULTS AND TROUBLESHOOTING PROBLEMS SOLUTIONS AND CHECKS THE BATTERY CHARGER DOES NOT CHECK THAT THE A/C AND D/C PLUGS SWITCH ON. ARE CONNECTED AND THAT THE A/C OUTLET IS RECEIVING POWER. THE CHARGING CYCLE DOES NOT CHECK THE CONNECTION TO THE START AND THE MESSAGE “bat”... - Page 11 NOTES CHARGE PLUS Models CBHF1SM, CBHF1-V2, CBHF2 Page 11 of 12 USERS MANUAL...
- Page 12 REPRESENTED BY. CHARGE PLUS Models CBHF1SM, CBHF1-V2, CBHF2 Page 12 of 12 USERS MANUAL...
