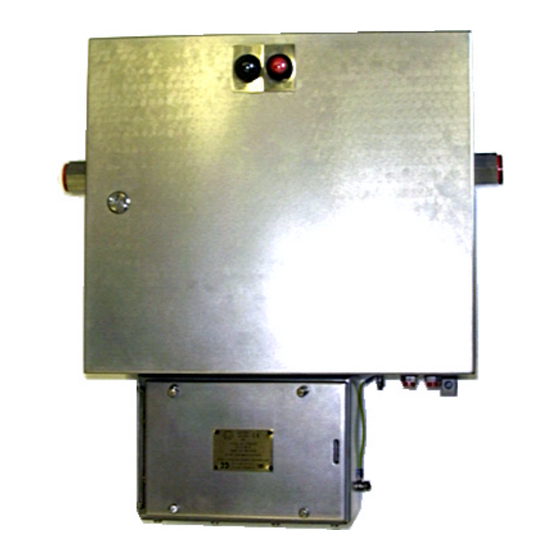

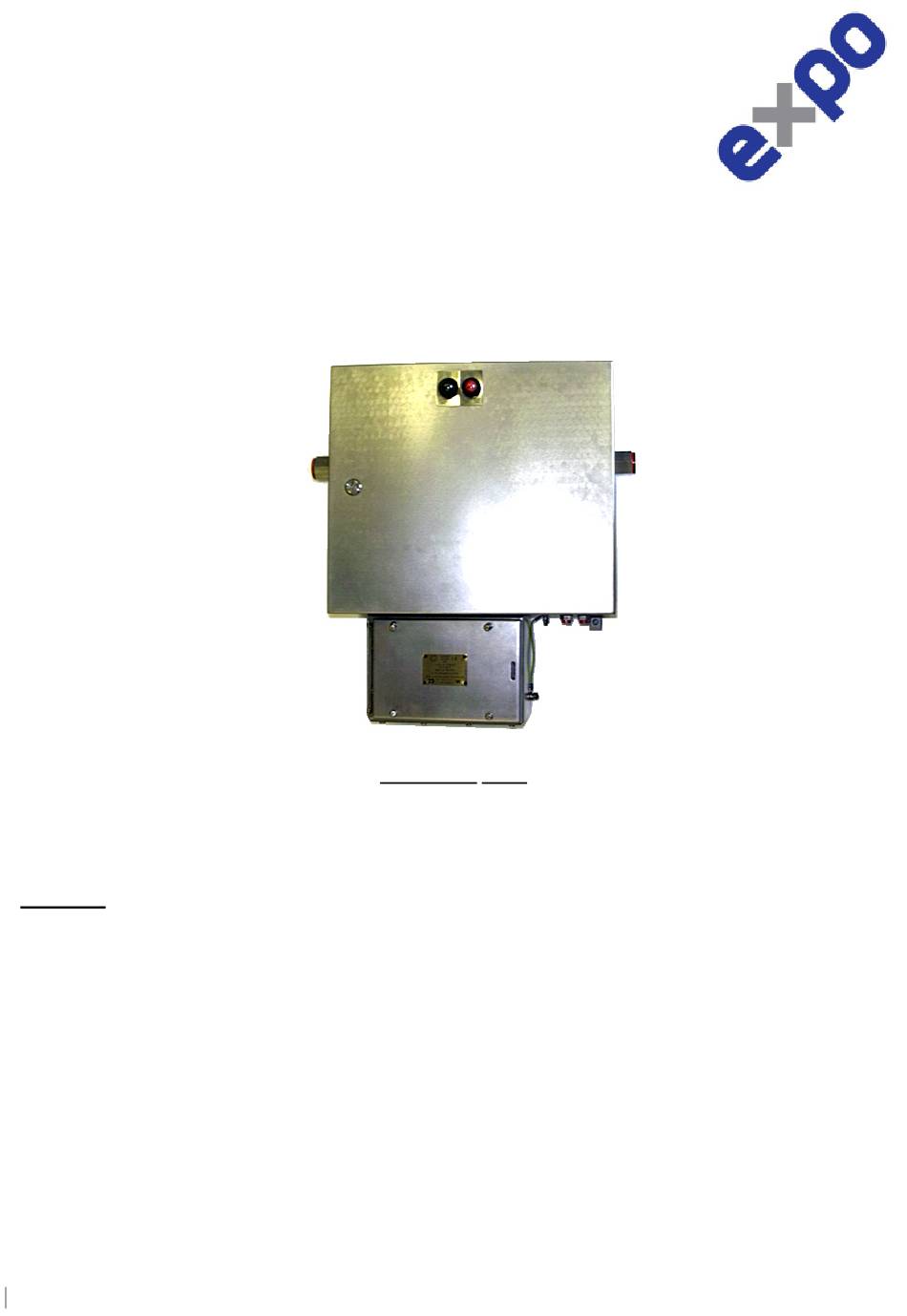

D758 MiniPurge
Manual
ML 434
IMPORTANT NOTE
It is essential for safety that the installer and user of the Expo system observe
the following instructions:
Please refer to the standard for principles and definitions.
(N.B. These instructions apply only to the Pressurizing system. It is the responsibility of the manufacturer
of the Pressurized Motor Enclosure to provide appropriate instructions for the Enclosure.)
Contents
®
1. D758 MiniPurge
- General System Specification
ML434 v9
Issued 16/10/09©
16
Page 1 of
Advertisement
Table of Contents
Related Manuals for EXPO MiniPurge D758
Summary of Contents for EXPO MiniPurge D758
-
Page 1: Table Of Contents
Manual ML 434 IMPORTANT NOTE It is essential for safety that the installer and user of the Expo system observe the following instructions: Please refer to the standard for principles and definitions. (N.B. These instructions apply only to the Pressurizing system. It is the responsibility of the manufacturer of the Pressurized Motor Enclosure to provide appropriate instructions for the Enclosure.) - Page 3 ® 1. D758 MiniPurge - General System Specification Pressurized Motor Housing Pressurized Motor Enclosure : A range of Electrical Motor housings Classification : Zone 1 Group IIC Total Purge Flow Rate : To be determined by customer and to include flow to compensate for leakage. Estimated Purge Time : To be determined by motor manufacturer dependent on the flow rate selected &...
- Page 4 Purge Time : User selectable. 3-off time increments available. 10, 15 or 20 Minutes (-0 + 25%). Giving a maximum available purge time period of 45 minutes. Default set to 45 Minutes. Approvals :ATEX Certificate: Sira 01ATEX1295X 0518 II 2 (2) G D Ex [px] II T6 Ex pD II 21 T85ºC Tamb -20ºC +55ºC...
-
Page 5: Quick User Guide
If an obvious problem has not been highlighted and corrected then follow the checks in the section “Fault Finding”. If the checks have been made and the system will still not work then please contact your local distributor or EXPO. ML434 v9 Issued 16/10/09©... -
Page 6: Application Suitability
“Pressurization” is a method of protection used in Zone 1 and Zone 2 Hazardous Locations to ensure that the interior of an electrical enclosure, for example the motor housing, is free of ® flammable gas. With the utilization of the Expo MiniPurge system, the motor may be used safely in a hazardous environment. -
Page 7: Main Components
Power” (A&T – Alarm and Trip). This can be changed by the customer to “Alarm Only” (AO), please refer to Section titled ‘Main Components’ - “Alarm Only” circuit. ® The Motor MiniPurge system incorporates a "Closed Loop Automatic Pressurization System" (CLAPS) whereby the system will detect a fall or rise in the motor internal pressure &... - Page 8 conditions are satisfied, a “Purge Complete” output signal is produced which is sent to perform the following functions: turn on the electrical supply to the PE, turn off the high purge flow and start the “Leakage Compensation” mode. It will also provide a hold-on signal to maintain the system in “Leakage Compensation”...
-
Page 9: Installation Of The System
Cable glands must be “Ex” certified if they are non-metallic. 6. Installation of the System This equipment is designed for use under normal industrial conditions of ambient temperature, humidity and vibration. Please consult Expo before installing this equipment in conditions that may cause stresses beyond normal industrial conditions. ®... - Page 10 ® The MiniPurge system should be connected to a protective gas supply, which is suitable for ® purging and pressurization. The supply pipe connection to the MiniPurge is 1” NPT(F) but the supply pipe shall be sized for the maximum input purge flow rate for the application and regulated to 6 barg.
-
Page 11: Commissioning
The “CLAPS Leakage Compensation Valve” can be set finally only when the enclosure has been installed in its permanent operating location. • Check that the system has been installed in accordance with Expo Instructions. ® • Disconnect the supply pipe from the inlet to the MiniPurge... - Page 12 • Connect a manometer to the bulkhead fitting, with a 4mm nylon tube, from where the Minimum Pressure sensing “Green” pipe was removed. ® • Close the Purge Flow Restrictor valve and turn on the compressed air to the MiniPurge Then, very slowly, open the Purge Flow restrictor until the pressure Relief Valve opens and check the opening pressure is within calibration.
-
Page 13: Maintenance Of The System
The maintenance recommended for the system consists of the following, supplemented by any additional requirements imposed by the local Code of Practice. Expo recommends that the commissioning tests be repeated at every six to 24 months, dependent on the environment. In addition the following checks are also recommended at that time: •... -
Page 14: Fault Finding
If the system is less than 12 months old, parts under warranty should be returned to Expo for investigation, with a full report of the fault and the system Serial Number. As with any pneumatic system the greatest enemies are water, oil and dirt in the air supply. For this reason the air system must always incorporate a dust and water filter to provide air to instrument quality. - Page 15 OK. Remove the clamp and retest. If the system ceases to time out, there is an air leak in the reservoir circuit. Use soapy water to detect the leak and then rectify it. (Call Expo Ltd. if in doubt). Finally recheck the purge timer at its full setting.
-
Page 16: Recommended Spares List
10. Recommended Spares List S0015/026 Filter kit for S0015/275 filter/regulator S0191/025 E x d IIC T6 limit switch SPNO S0191/026 E x d IIC T6 limit switch DPNO HS1-1XX0-031 Purge Flow Sensor, factory set to 6.4 marg S0030/016 Minimum Pressure Sensor, must be factory set to correct value that is stated on Customer System Test &... -
Page 17: Drawings And Diagrams
11. Drawings and Diagrams The following drawings are attached: Title Drawing Number Sheet(s) D758 Control Unit GA D758-GA 1 of 2 and 2 of 2 Typical D758 Hook Up D758-HU 1 of 1 D758-3 P and I Diagram D758-PI 1 of 1 Circuit Diagram AGM-PA00-021 1 of 1... - Page 18 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 19 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 20 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 21 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 22 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 23 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 24 Expo Technologies Limited. They are to be treated as confidential and are returnable 3rd ANGLE TOLERANCES 1 DEC PLACE ±0.2 upon request. They are not to be copied or communicated in part or in whole without written consent from Expo Technologies Limited, neither DO NOT SCALE PROJECTION 2 DEC PLACE ±0.1 are they to be used in any way against our interests.
- Page 25 UNSPECIFIED NO DEC PLACE ±0.5 The contents of this drawing / document are Copyright © Expo Technologies Limited. They are to be treated as confidential 3rd ANGLE DIMENSIONS IN mm TOLERANCES 1 DEC PLACE ±0.2 and are returnable upon request. They are not to be copied or communicated in part or in whole without written consent PROJECTION 2 DEC PLACE ±0.1...
- Page 33 The following materials are used in the construction of MiniPurge Interface Units. If substances that will adversely affect any of these materials are present in the surrounding environment, please consult Expo Technologies for further guidance. This equipment is designed for use under normal industrial conditions of ambient temperature, humidity and vibration.
- Page 37 This document confirms that “MiniPurge” Pressurize and Purge Control Systems manufactured by Expo Technologies Ltd conform, as described, to the following European Directives and standards:- Electromagnetic Compatibility Directive MiniPurge systems with a /PO suffix in the type number are non-electrical and are outside the scope of the EMC Directive.
- Page 40 Expo Technologies Ltd., + 44 (0) 20 8398 8011 Summer Road, + 44 (0) 20 8398 8014 Thames Ditton, E-mail: sales@expoworldwide.com Surrey, England, KT7 0RH Expo Technologies Inc., Tel: (440) 247 5314 PO Box 486, Fax: (440) 247 5409 Chagrin Falls, E-mail: sales.na@expoworldwide.com...
